Substation US-12202 125A 400V Garo

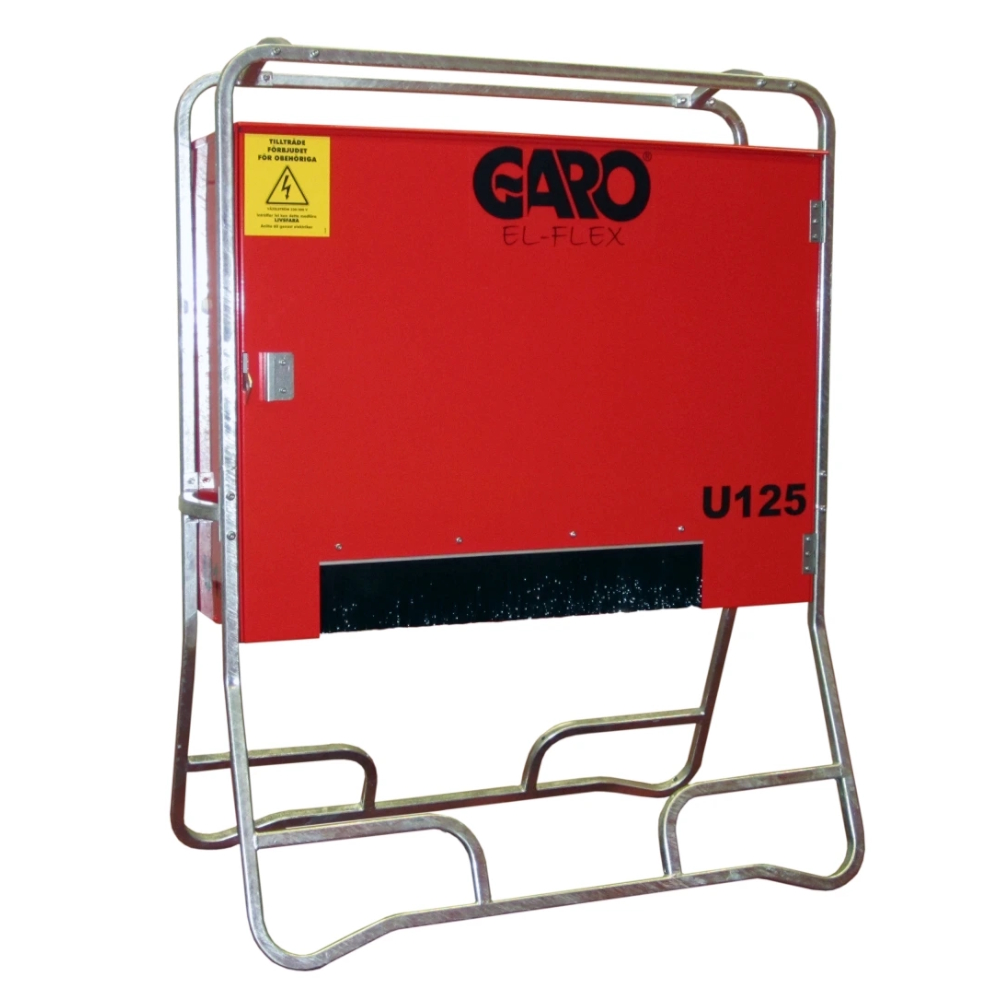

Substation/Outlet substation 125A in lockable sheet metal cabinet with foldable floor stand, used to safely receive and distribute 3-phase current.

Substation US-12202 125A 400V Garo

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

Substation US-12202 125A 400V Garo

Substation/Outlet substation 125A in lockable sheet metal cabinet with foldable floor stand, used to safely receive and distribute 3-phase current.

Description

Prefabricated power distribution substation used to safely receive and distribute three-phase current in places without fixed electrical installation, often on construction sites or at events.

Specifications

  • IEC socket:1x125A
  • UI:1x16A-32A-63A-125A- 2xschuko
  • RCCB: 2x40A/4P 1x63A 4P 300mA
  • MCB: 2xC113-C316 -C332 1xC363
  • Model/Version: Connection/end distribution cabinet
  • Rated current: 125 A
  • Connected load: 86.5 kVA
  • Number of CEE sockets (IEC 60309) 16 A / 24 V / 2P (L, N): 0
  • Number of CEE sockets (IEC 60309) 16 A / 230 V / 3P (L, N, PE): 0
  • Number of CCE sockets (IEC 60309) 125A / 400 V / 5P (1, 2, 3, N, PE): 1
  • Number of CEE sockets (IEC 60309) 16 A / 400 V / 4P (1, 2, 3, PE): 0
  • Number of CEE sockets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE): 2
  • Number of CEE sockets (IEC 60309) 32 A / 400 V / 4P (1, 2, 3, PE): 0
  • Number of CEE sockets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE): 2
  • Number of CEE sockets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE): 1
  • Number of earth leakage circuit breakers 10mA: 0
  • Number of earth leakage circuit breakers 30 mA: 2
  • Number of earth leakage circuit breakers 300 mA: 1
  • Number of meter fields: 0
  • Number of miniature circuit breakers (MCB): 7
  • Number of main switch poles: 0
  • Number of sockets grounded CEE 7/3 (Type F): 2
  • Number of sockets Swiss standard (Type 13): 0
  • Number of sockets Swiss standard (Type 15): 0
  • Number of sockets Swiss standard (Type 23): 0
  • Number of sockets Swiss standard (Type 25): 0
  • Width: 736 mm
  • Depth: 475 mm
  • Height: 880 mm
  • Main switch rated current: 0 A
  • Main fuse: None
  • Protection class (IP): IP44
  • Rated voltage (value): 230/400 V
