Outlet Center Bag 32A 400V Garo

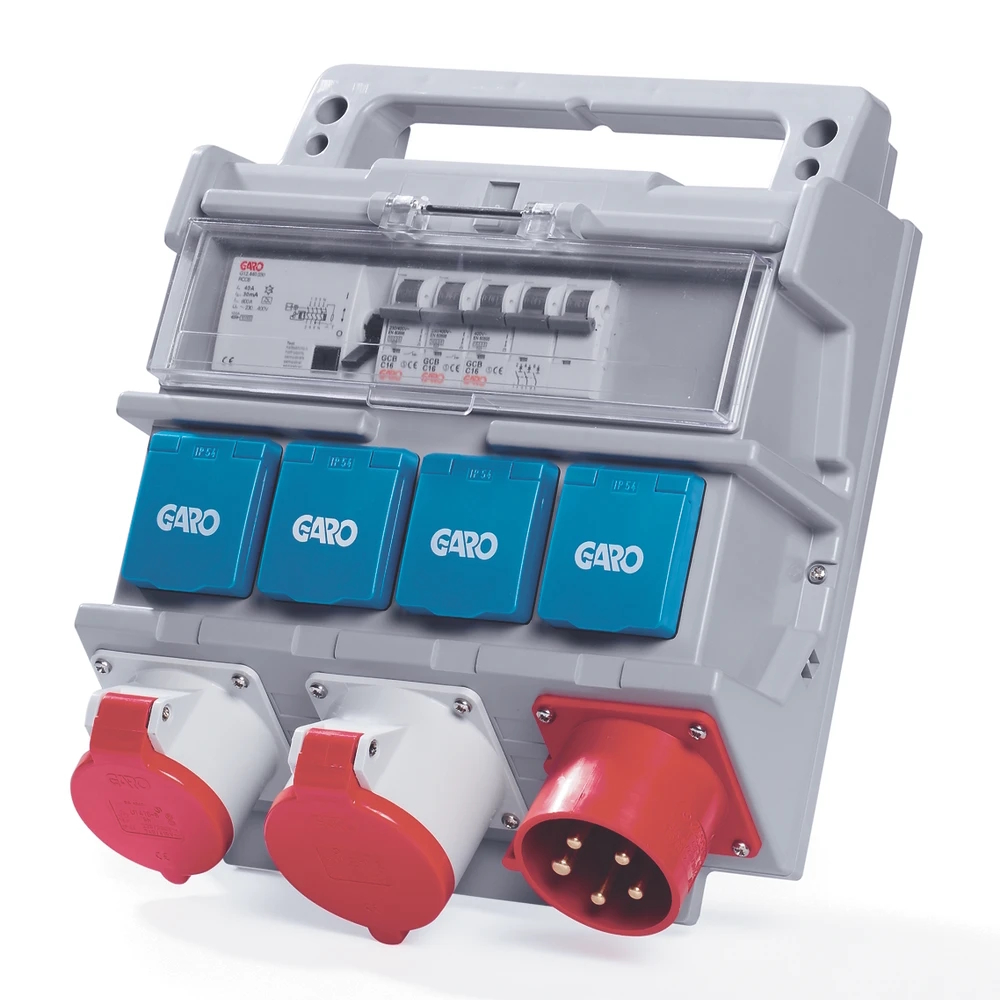

Outlet center Bag 32A, bag type U GBL, type U GBL is a plastic enclosure designed in a bag design, but also adapted for wall mounting.

Outlet Center Bag 32A 400V Garo

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

Outlet Center Bag 32A 400V Garo

Outlet center Bag 32A, bag type U GBL, type U GBL is a plastic enclosure designed in a bag design, but also adapted for wall mounting.

Description

Outlet center Bag 32A, bag type U GBL. Type U GBL is a plastic enclosure designed in a bag design, but also adapted for wall mounting and also with the possibility of being mounted in a sheet metal enclosure type LBS 16-63. One design is also adapted for feed-through.

Specifications

  • Operating voltage: 400VAC
  • Color: Gray
  • IEC-Inlet: 1pc 32A 3P+N+E 230/400V
  • IEC-Outlet: 1pc 16A 3P+N+E 230/400V
  • IEC-Outlet: 1pc 32A 3P+N+E 230/400V
  • Electrical fault circuit interrupter: 1pc 40A/4P/30mA
  • Material: Plastic
  • MCB: 1pc C316/10kA
  • MCB: 2pc C113/10kA
  • Schuko [pcs]: 4
  • Model/Version: Mobile end distributor
  • Rated current: 32 A
  • Connected load: 22 kVA
  • Number of CEE sockets (IEC 60309) 16 A / 24 V / 2P (L, N): 0
  • Number CEE sockets (IEC 60309) 16 A / 230 V / 3P (L, N, PE): 0
  • Number of CCE sockets (IEC 60309) 125A / 400 V / 5P (1, 2, 3, N, PE): 0
  • Number of CEE sockets (IEC 60309) 16 A / 400 V / 4P (1, 2, 3, PE): 0
  • Number of CEE sockets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE): 1
  • Number of CEE sockets (IEC 60309) 32 A / 400 V / 4P (1, 2, 3, PE): 0
  • Number of CEE sockets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE): 1
  • Number of CEE sockets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE): 0
  • Number of earth leakage circuit breakers 10mA: 0
  • Number of earth leakage circuit breakers 30 mA: 1
  • Number of earth leakage circuit breakers 300 mA: 0
  • Number of meter panels: 0
  • Number of miniature circuit breakers (MCB): 3
  • Number of main switch poles: 0
  • Number of sockets earthed CEE 7/3 (Type F): 4
  • Number of sockets Swiss standard (Type 13): 0
  • Number of sockets Swiss standard (Type 15): 0
  • Number of sockets Swiss standard (Type 23): 0
  • Number of sockets Swiss standard (Type 25): 0
  • Width: 275 mm
  • Depth: 120 mm
  • Height: 330 mm
  • Main switch rated current: 0 A
  • Main fuse: None
  • Protection class (IP): IP44
  • Rated voltage (value): 230/400 V
  • Material housing/enclosure/frame: Plastic
