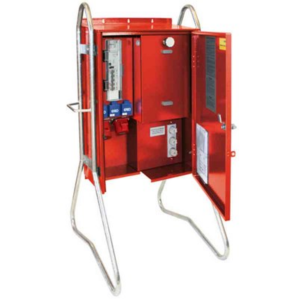

Booth Establishment Center 125A 32A-6Outlet 400V Garo

Description

Booth establishment center 125A is used for distributing 32A outlets to construction sheds, modular buildings, containers, etc. Connected to terminal block with ground cable (Type AKKJ) 16-95² via adjustable circuit breaker (80-125A). Equipped with 6 432-6 (32A) outlets with separate earth leakage breakers for each outlet. Also equipped with 1 service outlet (Schuko/230V).

Specifications

• Operating voltage: 400VAC
• Color: Red
• IEC sockets: 6pcs 32A 3P+N+E 230/400V
• Residual current circuit breaker: 6pcs 40A/4P/30mA
• Material: Sheet metal
• Maximum rated current [A]: 0
• MCB: 6pcs C332/10kA
• MCB: 1pcs C116/10kA
• Schuko [pcs]: 1
• Protection class [IP]: 44 Personal protection switch: 1pcs 16A/2P
• Model/Version: Mobile end distributor
• Rated current: 125 A
• Connected load: 86.5 kVA
• Number of CEE sockets (IEC 60309) 16 A / 24 V / 2P (L, N): 0
• Number of CEE sockets (IEC 60309) 16 A / 230 V / 3P (L, N, PE): 0
• Number of CCE sockets (IEC 60309) 125A / 400 V / 5P (1, 2, 3, N, PE): 0
• Number of CEE sockets (IEC 60309) 16 A / 400 V / 4P (1, 2, 3, PE): 0
• Number of CEE sockets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE): 0
• Number of CEE sockets (IEC 60309) 32 A / 400 V / 4P (1, 2, 3, PE): 0
• Number of CEE sockets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE): 6
• Number CEE sockets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE): 0
• Number of earth leakage circuit breakers 10mA: 0
• Number of earth leakage circuit breakers 30 mA: 7
• Number of earth leakage circuit breakers 300 mA: 0
• Number of meter panels: 0
• Number of miniature circuit breakers (MCB): 7
• Number of main switch poles: 0
• Number of sockets earthed CEE 7/3 (Type F): 1
• Number of sockets Swiss standard (Type 13): 0
• Number of sockets Swiss standard (Type 15): 0
• Number of sockets Swiss standard (Type 23): 0
• Number of sockets Swiss standard (Type 25): 0
• Width: 790 mm
• Depth: 1050 mm
• Height: 530 mm
• Main switch rated current: 0 A
• Main fuse: None
• Protection class (IP): IP44
• Rated voltage (value): 230/400 V
• Material housing/enclosure/frame: Sheet steel
