Main Switchboard 160A GPI/EB 400V Garo

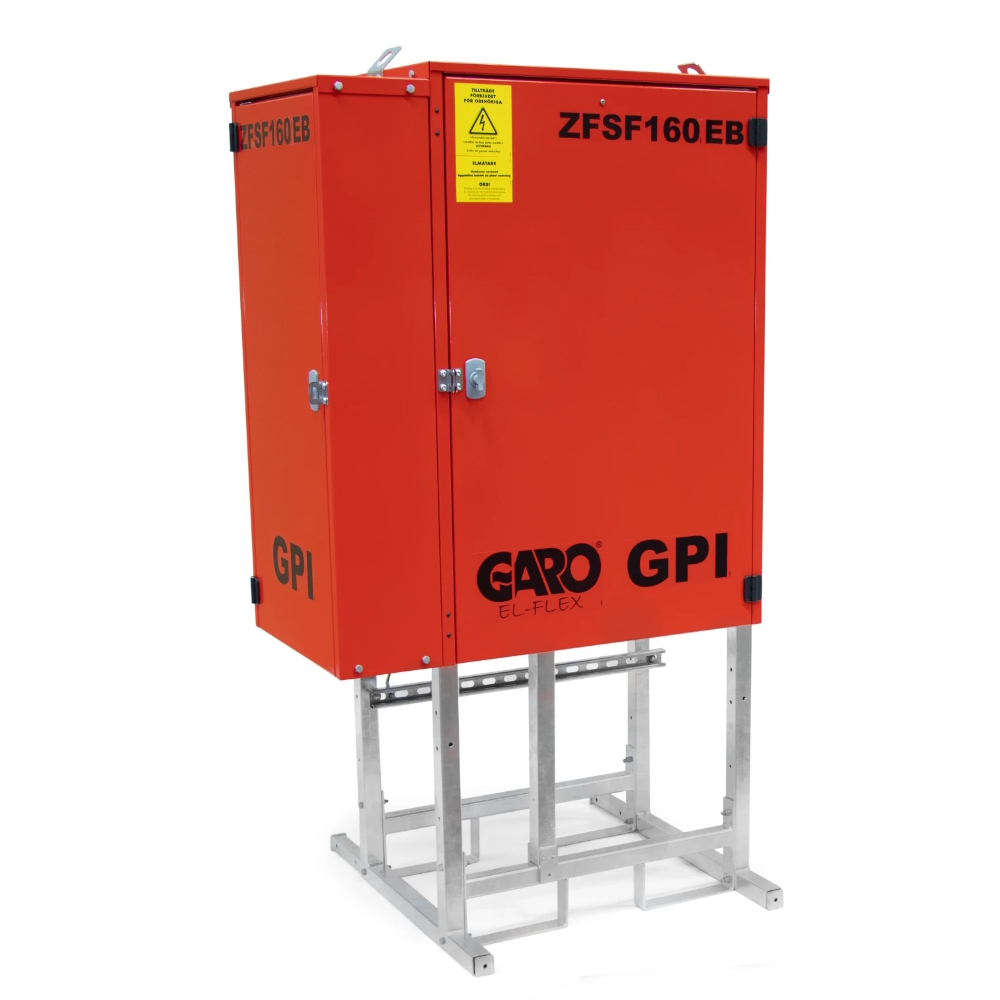

Main switchboard prepared for energy measurement 160A built in the GPI system, equipped with hot-dip galvanized stand and lockable doors.

Main Switchboard 160A GPI/EB 400V Garo

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

Main Switchboard 160A GPI/EB 400V Garo

Main switchboard prepared for energy measurement 160A built in the GPI system, equipped with hot-dip galvanized stand and lockable doors.

Description

Main switchboard prepared for energy measurement 160A built in the GPI system. This switchboard is normally used in the construction of townhouses, apartment buildings, events, etc. The switchboard is equipped with sockets 13-63A preceded by earth leakage circuit breakers and automatic fuses. This model is also equipped with an output for feeding earth cable (Type AKKJ) 16-95 mm². The switchboard is equipped with hot-dip galvanized stand and lockable doors.

Specifications

  • Model/Version: Mobile end distributor
  • Rated current: 160 A
  • Connected load: 110.72 kVA
  • Number of CEE sockets (IEC 60309) 16 A / 400 V / 4P (1, 2, 3, PE): 1
  • Number of CEE sockets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE): 2
  • Number of CEE sockets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE): 2
  • Number of RCDs 30 mA: 3
  • Number of RCDs 300 mA: 2
  • Number of miniature circuit breakers (MCB): 7
  • Number of sockets grounded CEE 7/3 (Type F): 3
  • Width: 905 mm
  • Depth: 506 mm
  • Height: 1662 mm
  • Main switch rated current: 160 A
  • Main fuse: Circuit breaker
  • Protection class (IP): IP44
  • Rated voltage (value): 400 V
