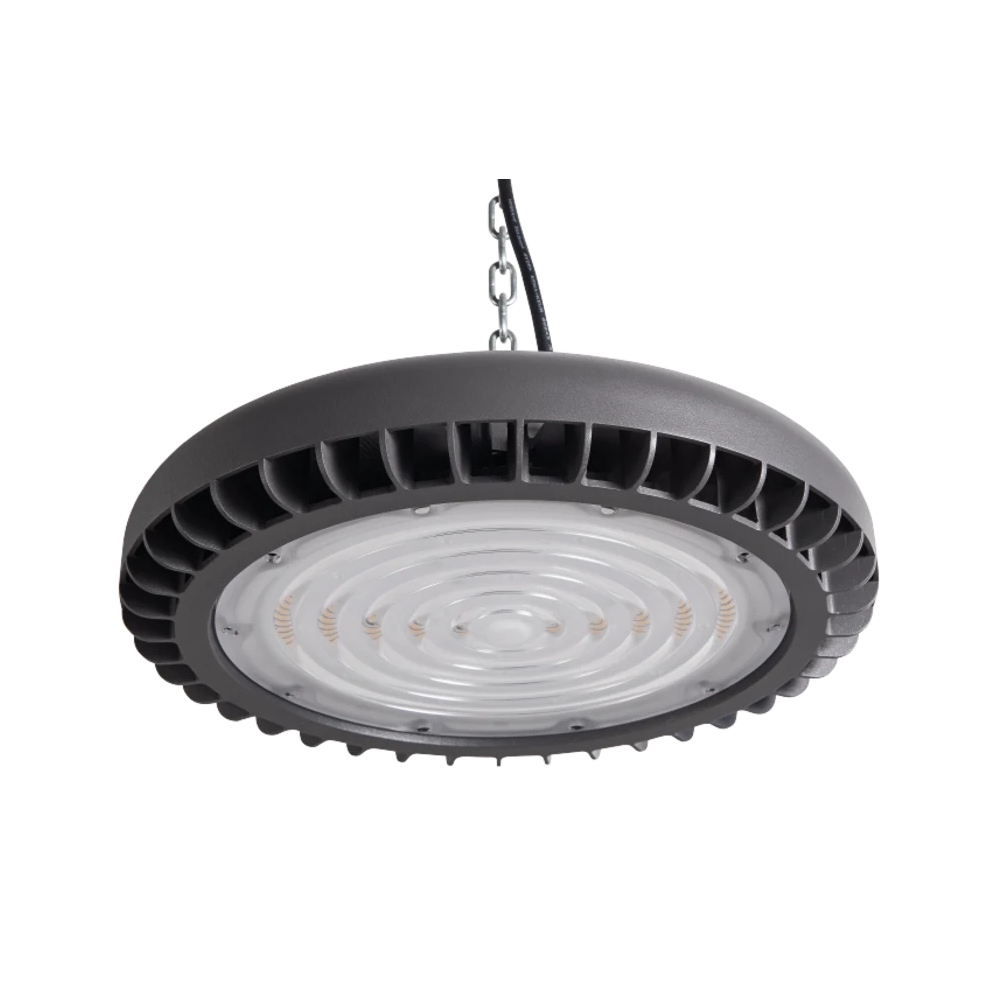

Luminaire Tovdal Dali 90D 197W 220-240V 27000lm 4000K IP65 White SG Armaturen

Description

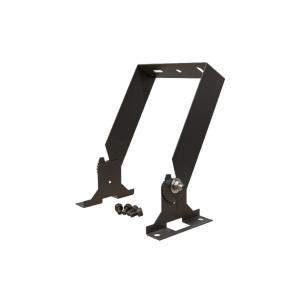

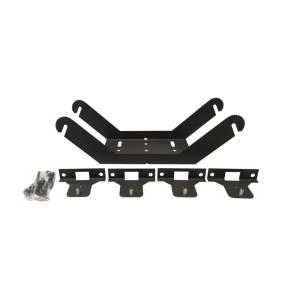

Tovdal is a powerful and stylish "high bay" luminaire. It is well suited for warehouses and industrial companies. Thanks to several lumen packages, it can also be used for many other applications. Tovdal is easily mounted with a ceiling/wall bracket (available as an accessory) or a chain (not included). The connection is made via an IP68 quick connector. The efficient optics provide an optimal symmetrical 90-degree light distribution. It provides very high light output and the components can withstand very low temperatures (-40°C) while maintaining an extremely long service life.

Technical Information

• Nominal luminous flux: 27000lm
• Color temperature: 4000 - 4000K
• Beam angle: >80° (extremely wide beam)
• Light distribution: Symmetrical
• Protection class (IP): IP65
• Number of poles: 2
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Maintained luminous flux at average lifetime 50,000 hours (25 °C ambient): 80%
• Bluetooth controlled: No
• Ball-proof: No
• Failure at average lifetime 50,000 hours (25 °C ambient): 10%
• CLO: Yes
• No dimmer function: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Trailing edge dimming (phasecut-off): No
• Dimming DALI: Yes
• Dimming DALI-2: No
• Dimming DMX: No
• DSI dimming: No
• Front edge dimming (phasecut-on): No
• GPRS dimming: No
• LineSwitch dimming: No
• Touch dimming: No
• Push button dimming: No
• Mains voltage modulation dimming: No
• Potentiometer dimming (integrated): No
• Programmable dimming: No
• RF dimming: No
• Sine wave dimming (Sine Wave Reduction): No
• Manufacturer specific dimming: No
• Zigbee dimming: No
• Dimmable: Yes
• DoC (CE): Yes
• Driver: LED driver (constant current)
• Driver included: Yes
• Light source power: 197W
• Power factor: 100
• Energy efficiency class built-in lamps: A++, A+, A (LED)
• Energy efficiency class light source (EU 2019/2015): C
• Light color adjustable: No
• Color fastness (McAdam ellipse): SDCM3
• Color rendering index (CRI/Ra): 80-89
• Glowing wire test (IEC 60695-2-11): None
• Highest energy efficiency class for replacement lamps: A++
• Indoor/Outdoor: Indoor placement
• Integrated emergency power supply: No
• Adjustable light distribution: No
• Luminous flux adjustment: No
• Lowest energy efficiency class for replacement lamps: A++
• Suitable for lamp power: 193 - 193 W
• Suitable for emergency lighting: No
• Suitable for pendant suspension: Yes
• Suitable for ceiling mounting: No
• Suitable for accessory lamp: No
• Suitable for wall mounting: Yes
• Suitable number of light sources: 1
• Conductor cross-section: 2.5 mm²
• Light source: LED (not replaceable)
• Luminous efficiency: 140 lm/W
• Luminous efficiency: 135 - 135 lm/W
• Light socket: Direct
• Rated voltage: 220-240V
• Maximum number of fixtures per circuit breaker B16: 5
• Maximum number of fixtures per circuit breaker C16: 8
• Max. system power: 193 W
• With light source: Yes
• With light sensor: No
• With presence detector: No
• With motion sensor: No
• With protective cover: No
• Mounting method: Suspended
• Emergency power supply system: None
• Emergency power monitoring system: None
• Nominal service life L70/B50 at 25 °C: 0 h
• Nominal service life L80/B10 at 25 °C: 100000 h
• Nominal service life L90/B10 at 25 °C: 0 h
• Nominal service life L90/B50 at 25 °C: 0 h
• Nominal service life L70/B10 at 25 °C: 0 h
• Nominal service life L80/B50 at 25 °C: 0 h
• Nominal service life L70/B10 at 25 °C: 0 h
• Nominal service life L80/B50 at 25 °C: 0 h
• Nominal ambient temperature according to IEC 62722-2-1: 25 -25 °C
• Nominal luminous flux (IEC 62722-2-1): 26650 - 26650 lm
• Lens type: Matt
• Protection class (IEC 61140): I
• Impact resistance (IK): IK00
• Voltage type: DC
• Type of wiring: Suitable for through-wiring
• Replaceable driver: No

Specifications

• Light color: White
• Material housing/enclosure/frame: Aluminum
• Color housing/enclosure/frame: Anthracite
• Food Contact Material: No
• REACH: Yes
• Width: 350 mm
• Length: 350 mm
• Height/depth: 132 mm
• Outer diameter: 350 mm
