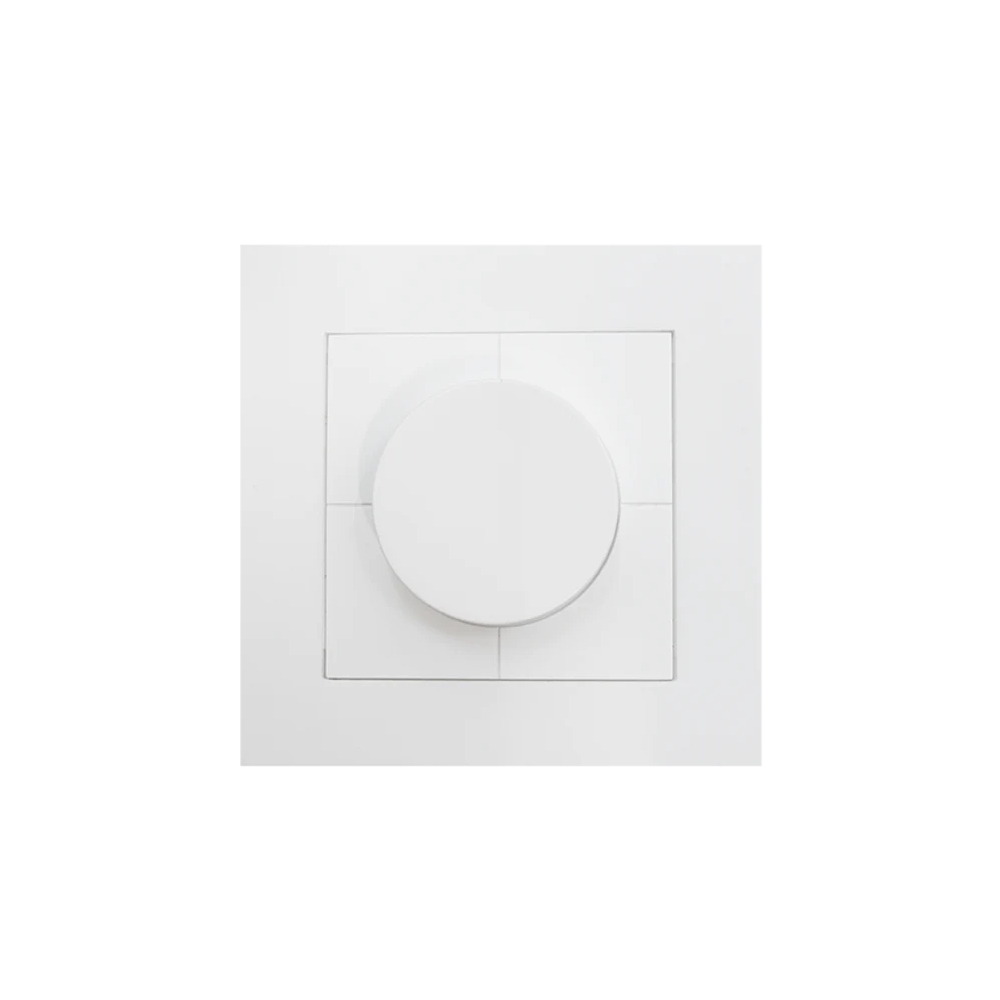

Dimmer LED Dali 200-240V IP20 White SG Armaturen

Description

Dali dimmer that can regulate both light level and color temperature (via Dali type 8). The control is done manually. You change the color temperature just by double-clicking the knob. The 4 buttons allow you to save the current setting and bring it up again with just one press. It has a built-in Dali power supply that provides easy installation and does not require other Dali equipment. An LEDDim Dali can control up to 64 Dali fixtures via broadcast. Made of halogen-free and color-resistant polycarbonate.

Technical Information

• Load type: Universal and LED Retrofit
• Operation method: Rotary/push button
• Mounting method: Flush mounting
• Can be used with button: Yes
• Number of modules (modular system): 1
• App control via Bluetooth: Yes
• Rear edge dimming (phasecut-off): No
• Front edge dimming (phasecut-on): No
• Frequency range: 50 - 60 Hz
• Halogen-free: Yes
• Can be used with infrared button: Yes
• Can be used with presence indicator: No
• Can be used with transfer button: Yes
• Can be used with motion sensor: Yes
• Can be used with time switch/timer: Yes
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Google Assistant: No
• Suitable for protection class (IP): IP20
• Conductor cross-section: 4 - 5 mm²
• Luminous value memory: Yes
• Rated power from/to: 3 - 400 VA
• Rated voltage: 200-240V
• With IFTTT support: No
• Inverter input: No
• Control voltage: 220-240V
• Composition: Base element with complete housing
• Series dimmer: No
• Impact resistance (IK): IK00
• Connection type: Screw terminal
• Type of fastening: Screw mounting

Specifications

• Colour: White
• RAL number (similar): 9003
• Material: Plastic
• Transparent: No
• Material quality: Thermoplastic
• Type of surface: Matt
• Surface treatment: Untreated

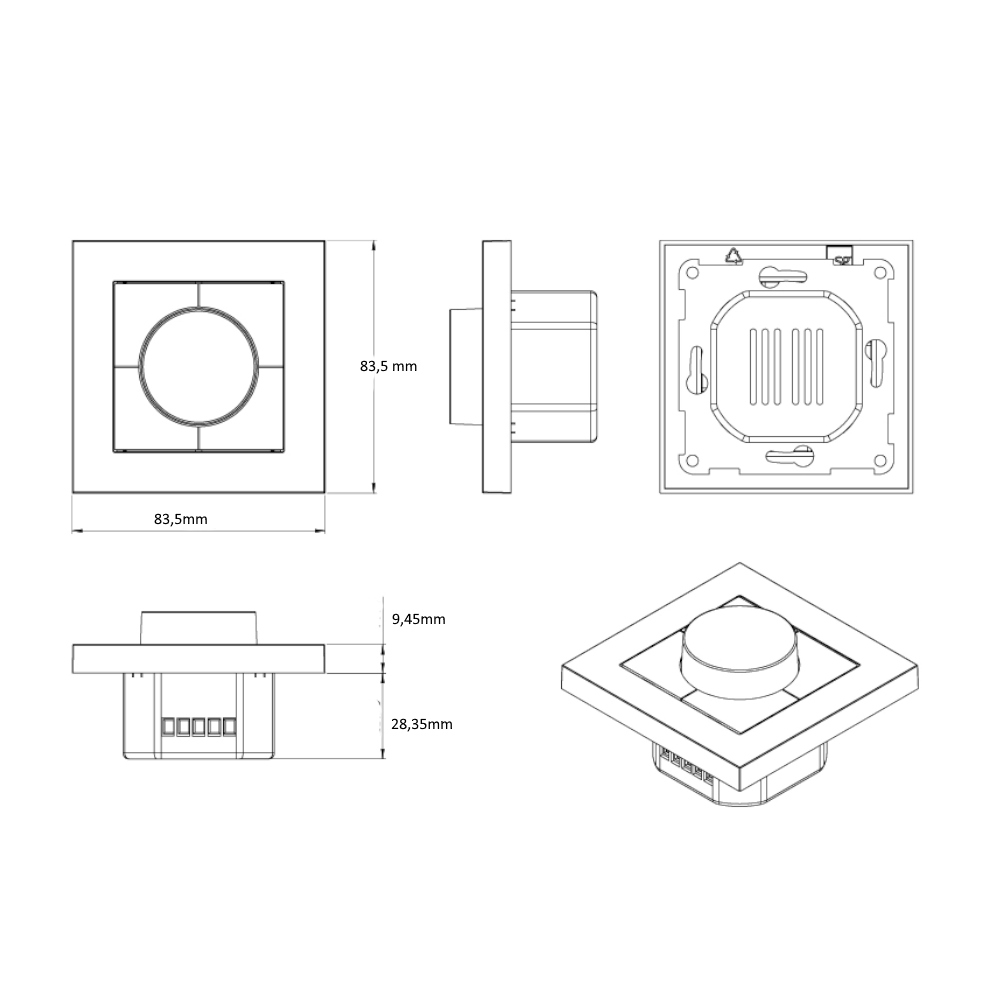

• Minimum depth of flush-mounted installation box: 28.35mm
• Unit width: 83.5mm
• Unit depth: 28.35mm
• Unit height: 83.5mm
