Luminaire Tovdal 90D 97W 220-240V 14080lm 4000K IP65 White SG Armaturen

Description

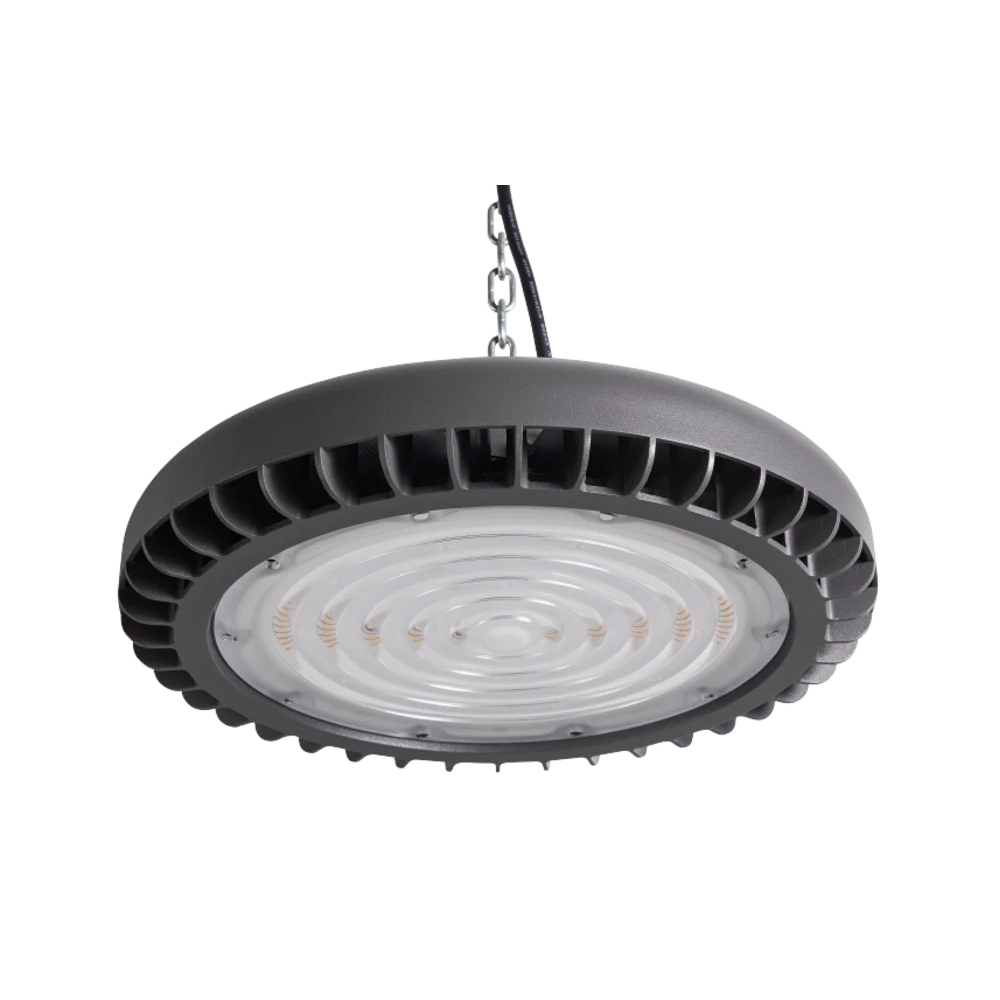

Powerful "high bay" luminaire for warehouse and industrial operations, several lumen packages make it very useful in other types of applications as well. Solid die-cast, powder-coated aluminum housing. Easy installation with ceiling/wall bracket (accessory) with hook device. Connection with IP68 quick coupling. Efficient optics collect the light and provide symmetrical 90° light distribution.

Technical Information

• Nominal luminous flux: 14080lm
• Color temperature: 4000 - 4000 K
• Beam angle: >80° (extremely wide beam)
• Light distribution: Symmetrical
• Protection class (IP): IP65
• Number of poles: 2
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Luminous flux maintained at average lifetime 100,000 hrs (25 °C ambient): 80%
• Luminous flux maintained at average lifetime 50,000 hrs (25 °C ambient): 90%
• Bluetooth controlled: No
• CLO: No
• No dimmer function: Yes
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): No
• DIMING DALI: No
• DIMING DALI-2: No
• DIMING DMX: No
• DIMING DSI: No
• Dimming leading edge (phasecut-on): No
• Dimming GPRS: No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming with push button: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Dimming programmable: No
• Dimming RF: No
• Dimming sine wave (Sine Wave Reduction): No
• Dimming manufacturer-specific: No
• Dimming Zigbee: No
• Dimmable: No
• Driver: LED driver (constant current)
• Driver included: Yes
• Power light source: 97 W
• Power factor: 100
• Energy efficiency class built-in lamps: A++, A+, A (LED)
• Energy efficiency class light source (EU 2019/2015): D
• Energy efficiency class supplied replacement lamps: A++
• Color of light adjustable: No
• Color fastness (McAdam ellipse): SDCM3
• Color rendering index (CRI/Ra): 80-89
• Glow-wire test (IEC 60695-2-11): None
• Highest energy efficiency class for replacement lamps: A++
• Integrated emergency power supply: No
• Adjustable light distribution: No
• Luminous flux adjustment: No
• Lowest energy efficiency class for replacement lamps: A++
• Suitable for lamp power: 97 - 97 W
• Suitable for emergency lighting: No
• Suitable for pendant suspension: Yes
• Suitable for ceiling mounting: No
• Suitable for accessory lamp: No
• Suitable for wall mounting: Yes
• Suitable number of light sources: 1
• Conductor cross-section: 2.5 mm²
• Light source: LED (not replaceable)
• Luminous efficiency: 145 lm/W
• Luminous efficiency: 153 - 153 lm/W
• Light socket: Direct
• Rated voltage: 220 - 240 V
• Maximum number of luminaires per circuit breaker B16: 8
• Maximum number of luminaires per circuit breaker C16: 12
• Max. system power: 97W
• With light source: Yes
• With light sensor: No
• With presence detector: No
• With motion sensor: No
• With protective cover: No
• Mounting method: Suspended
• Emergency power supply system: None
• Emergency power monitoring system: None
• Nominal service life L70/B50 at 25 °C: 0 h
• Nominal service life L80/B10 at 25 °C: 100000 h
• Nominal service life L90/B10 at 25 °C: 0 h
• Nominal service life L90/B50 at 25 °C: 0 h
• Nominal service life L70/B10 at 25 °C: 0 h
• Nominal service life L80/B50 at 25 °C: 0 h
• Nominal service life L70/B10 at 25 °C: 0 h
• Nominal service life L80/B50 at 25 °C: 0 h
• Nominal ambient temperature according to IEC 62722-2-1: 25 - 25°C
• Nominal luminous flux (IEC 62722-2-1): 14090 - 14090 lm
• Protection class (IEC 61140): I
• Impact resistance (IK): IK00
• Voltage type: DC
• Type of wiring: Suitable for through-wiring
• Replaceable driver: No

Specifications

• Light color: White
• Rotate finish: Matt
• Material housing/enclosure/frame: Aluminum
• Color housing/enclosure/frame: Anthracite
• Food Contact Material: No
• REACH: Yes
• Width: 350 mm
• Length: 350 mm
• Height/depth: 132 mm
• Outer diameter: 350 mm
