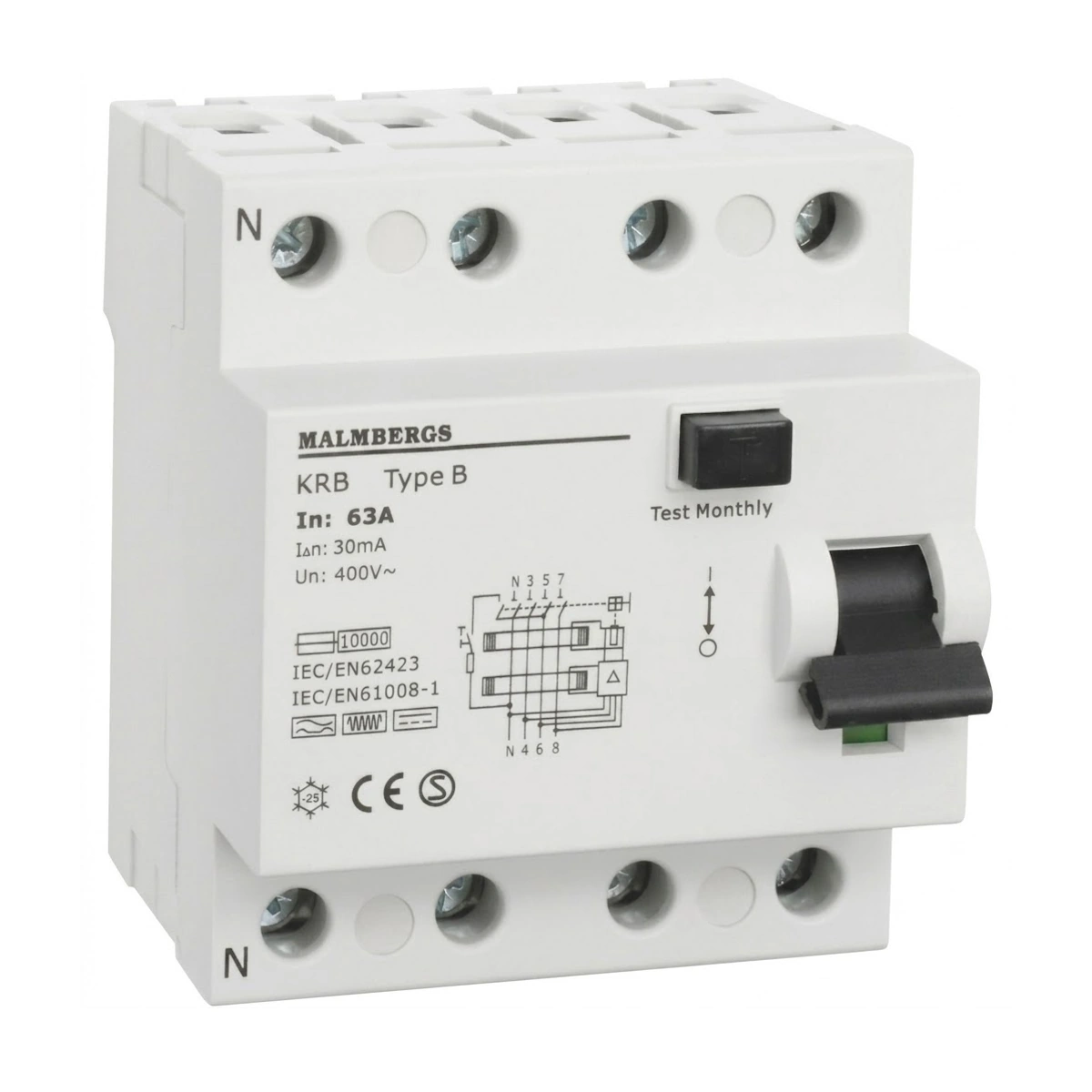

Residual Current Circuit Breaker B-Type 4-Poles 63A 30mA 230/400V IP20 Malmbergs 2160542

Description

A high-quality, universal current-sensitive Type B residual current circuit breaker (RCCB), specially developed for modern electrical installations where traditional protection is insufficient. With a rated current of 63A and a tripping current of 30mA, it provides comprehensive personal and fire protection in demanding environments. A standard RCCB (Type A) risks becoming completely ineffective ("saturated") if exposed to smooth DC fault currents exceeding 6mA. This means it stops working entirely – even for regular AC faults. The Malmbergs Type B RCCB solves this problem by safely detecting and interrupting all types of fault currents: pure alternating current (AC), pulsating and smooth direct current (DC), as well as mixed frequencies up to 1000 Hz.

Applications and Requirements for Type B RCCBs

Type B is a statutory or technical requirement in installations where modern power electronics can generate DC fault currents. It is ideal and often mandated for:

• Charging stations & EV chargers: Protects against DC leakage from the vehicle's battery.
• Frequency converters & UPS systems: Handles mixed frequencies during speed control and backup power operations.
• Elevators, escalators & welding machines: Secures heavy industrial and commercial loads.

Note: The residual current circuit breaker is optimized for 50Hz AC networks and must not be used in pure DC installations.

Key Features and Benefits

• Universal Current-Sensitive Protection (Type B): Handles pure AC, pulsating DC, smooth DC, and frequencies up to 1000Hz.
• High Capacity: Manages up to 63A rated current, perfect for distribution boards and heavier loads.
• Secure Connection: Robust screw terminals (PZ2) for cable cross-sections of 1–35 mm² with the neutral terminal positioned on the left.
• Robust Construction: Surge current proof up to 3kA (8/20µs), minimizing the risk of nuisance tripping caused by occurrences like lightning.
• Clear Energy Limitation: Energy limiting class 3 provides optimal protection for cables and appliances during short circuits.

Technical Specifications

• Type: B (Universal current-sensitive)
• Rated Current: 63A
• Number of Poles: 4-pole
• Tripping Current: 30 mA
• Voltage: 230/400V
• Frequency: 50Hz
• Connection: Screw, PZ2 (Neutral on the left)
• Terminal Capacity (Wire Area): 1–35 mm²
• Tightening Torque: 2.5 Nm
• Rated Short-Circuit Capacity: 10 kA
• Rated Making and Breaking Capacity (Im): 1000 A
• Surge Current Proof: 3 kA at 8/20µs
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Energy Limiting Class: Class 3
• IP Rating (Ingress Protection): IP20
• Temperature Range: -25°C to +55°C
