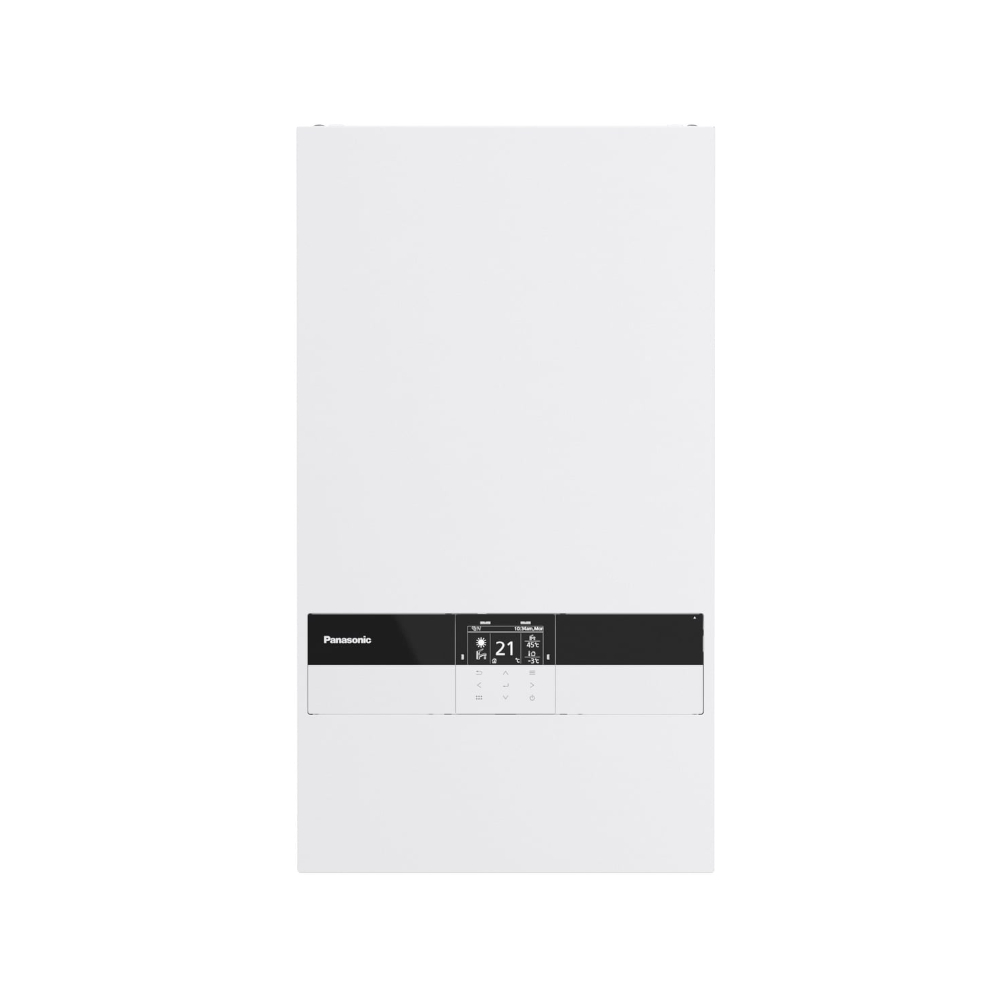

Panasonic Heat Pump M-Series T-Cap Bi-Block Air/Water R290 3-16kW 230V

Description

Panasonic heat pump Aquarea Hydraulic Split, M-series, T-Cap, bi-block, indoor unit, air/water, R290, 3-16kW.

Technical Information

• Model/Version: Indoor unit
• Heating capacity at 7/35°C (EN 14511): 3.2 kW
• Connection voltage: 230 V
• Sound pressure level outdoor unit at 0/35°C at 1m distance (EN12102): 53 dB
• Max. hot water temperature: 75 °C
• Solar connection: Yes
• COP at 7/35°C (EN 14511): 5.33
• COPd at Tj=+7°C: 3.2
• Data transfer via Bus: Yes
• Data transfer via Internet: Yes
• Data transfer via USB: No
• Electric heating element power: 3 - 3 kW
• Energy efficiency class water heating (811/2013/EU): A++
• Energy efficiency water heating (Nwh): 3.23 %
• External control required: No
• Remote control possible: Yes
• Pre-filled refrigerant: 1.78 kg
• Global warming potential (GWP): 3
• Integrated cooling: Yes
• Capacity profile: L
• Cooling capacity at 35/18°C (EN 14511): 4.76 - 5 kW
• Cooling capacity at 35/7°C (EN 14511): 2.82 - 3.23 kW
• Suitable for active cooling: Yes
• Suitable for central heating: Yes
• Suitable for pool heating: No
• Suitable for domestic hot water: Yes
• Sound performance level indoor unit at 0/35 °C (EN 12102): 30 dB(A)
• Sound performance level outdoor unit at 0/35 °C (EN 12102): 53 dB(A)
• Sound pressure level indoor unit at 0/35°C at 1m distance (EN12102): 30 dB
• Max. pipe length: 30 m
• With electric heating element: Yes
• With pool control: No
• Modulating compressor: Yes
• Pump type (system pump): Energy-saving
• Control for controlling the accumulator tank: Yes
• Control for controlling the central heating boiler: Yes
• Room temperature control: Yes
• Fuse (slow): 16 A
• Stepless control of the electric heating element: No
• Control method/Processing method: OpenTherm
• Refrigerant type: R290
• Control type: On/Off
• Type of voltage pump (system pump): AC
• Heating capacity at -7/35°C (EN 14511): 3.3 kW

Specifications

• Indoor unit width: 500 mm
• Indoor unit depth: 348 mm
• Indoor unit height: 892 mm
• Food Contact Material: No
• REACH: No
