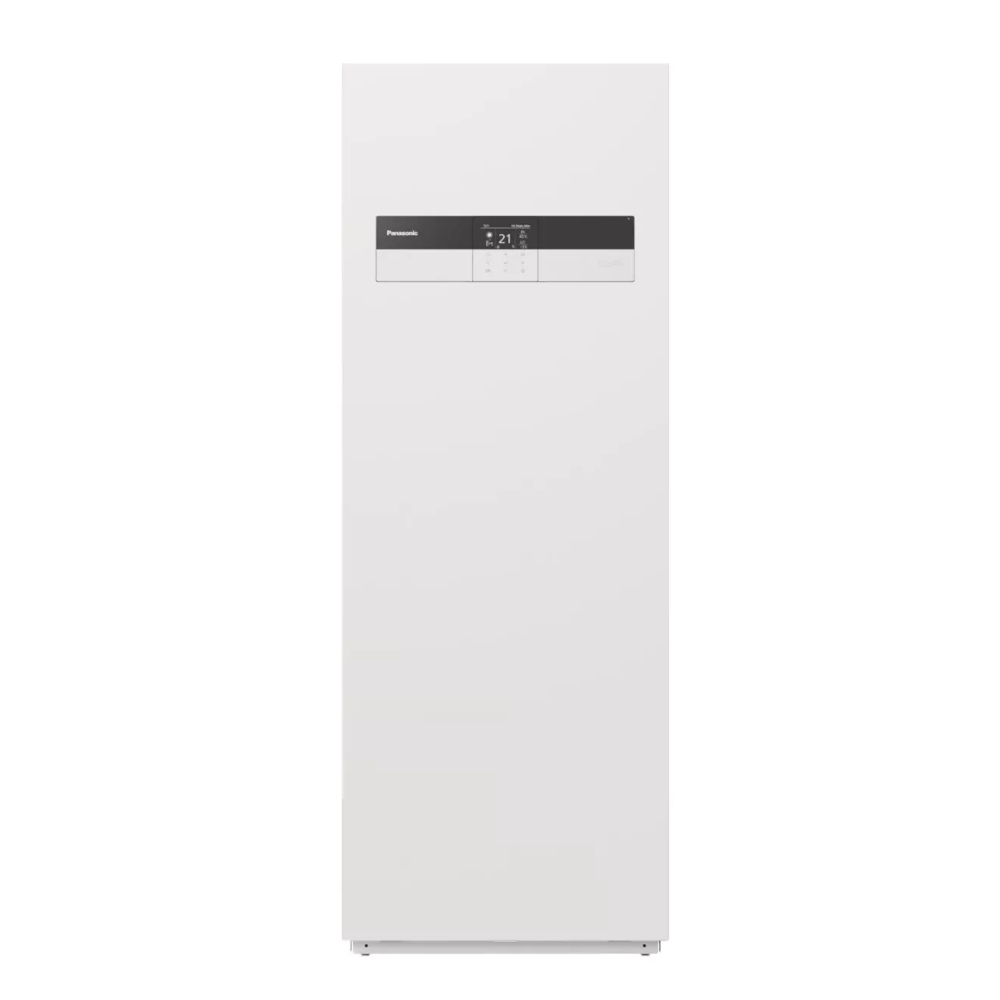

Panasonic Heat Pump M-Series T-Cap All-In-One Air/Water R290 3-16kW 230V

Description

Panasonic heat pump Aquarea All-in-One, Hydraulic Split, M-series, T-Cap, bi-block, indoor unit, air/water, R290, 3-16kW.

Technical Information

• Heating capacity at 7/35°C (EN 14511): 3.2 kW
• Suitable for central heating: Yes
• Refrigerant type: R290
• Suitable for domestic hot water: Yes
• Suitable for pool heating: No
• Connection voltage: 230 V
• COP at 7/35°C (EN 14511): 5.33
• COPd at Tj=+7°C: 3.2
• Data transfer via Bus: Yes
• Data transfer via Internet: Yes
• Data transfer via USB: No
• Energy efficiency class space heating (811/2013/EU): A++
• Energy efficiency class water heating (811/2013/EU): A+
• Energy efficiency water heating (Nwh): 146 %
• External control required: No
• Pre-charged refrigerant: 1.78 kg
• Global warming potential (GWP): 3
• Capacity profile: L
• Cooling capacity at 35/18°C (EN 14511): 5 - 9 kW
• Cooling capacity at 35/7°C (EN 14511): 5 - 8.2 kW
• Suitable for active cooling: Yes
• Max. hot water temperature: 75 °C
• With pool control: No
• Modulating compressor: Yes
• Nominal flow heating medium circuit: 20.1 l/s
• Pump type (system pump): Energy-saving
• Control for controlling the accumulator tank: Yes
• Control for controlling the central heating boiler: Yes
• Room temperature control: Yes
• Fuse (slow): 16 A
• SEER low-temperature application (35°C) at colder conditions: 3.23 %
• SEER low-temperature application (35°C) at normal conditions: 3.23 %
• SEER low-temperature application (35°C) at warmer conditions: 3.23 %
• Control method/Processing method: OpenTherm
• Type of control: On/Off
• Type of voltage pump (system pump): AC
• Heating capacity at -7/35°C (EN 14511): 3.3 kW
• Volume vessel/tank: 185 L

Specifications

• Food Contact Material: No
• REACH: Yes
