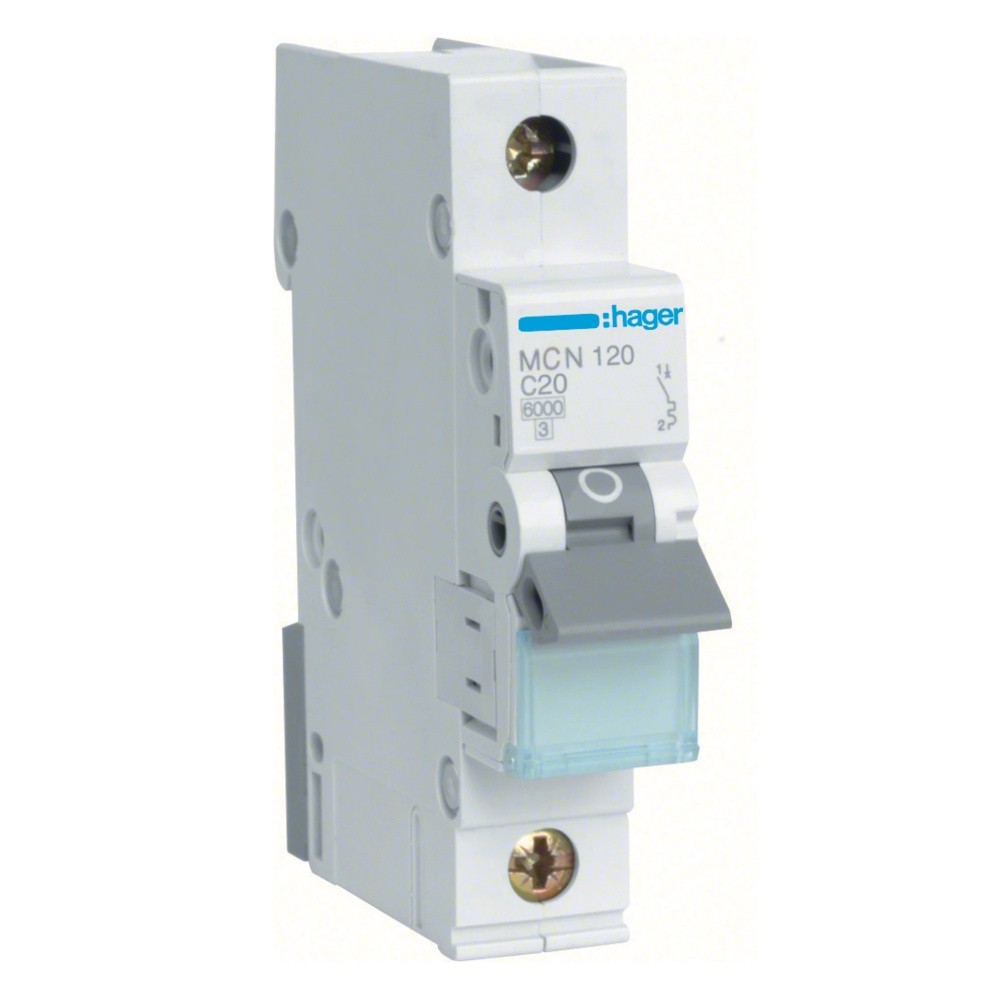

Miniature Circuit Breaker 1Pol C-Curve 20A 6kA 400V IP20 Hager

Description

Mini switch (formerly dwarf switch) 1-pole with screw connection 20A, C-characteristic with a breaking capacity of 6kA. Double connection for feeding, one for phase rail and one for cables. This provides a secure connection. Provides reliable and safe protection of cables/wires against overload and short circuit. Available with B and C characteristics and 1-3 poles/1-3 modules. MCB (Mini Circuit Breaker) is referred to in older regulations as a miniature circuit breaker/circuit breaker. Suitable for residential and smaller commercial properties. Accessories such as auxiliary contacts, signal contacts, shunt releases and undervoltage releases are mounted on mini-switches without tools.

Technical Information

• Rated current: 20 A
• Number of poles (total): 1
• Trigger characteristic: C
• Rated voltage: 400 V
• Connectable conductor area single-wire: 1 - 35 mm²
• Connectable conductor area stranded: 1 - 25 mm²
• Number of protected poles: 1
• Width and number of module spaces: 1
• Breaking capacity in case of short circuit Icn EN 60898 at 230 V: 6 kA
• Short-circuit breaking capacity Icu IEC 60947-2 at 230 V: 10 kA
• Explosion proof: No
• Power loss: 2.7 W
• Pollution degree: 2
• Frequency range: 50 - 60 Hz
• Impulse protection rated voltage Uimp: 4 kV
• Recessed mounting: Yes
• Protection class (IP): IP20
• Suitable for flush mounting: Yes
• Nominal insulation voltage: 500 V
• Ambient temperature during operation: -25 - 70 °C
• Overvoltage category: 3
• Parallel switching neutral conductor: No
• Current limitation class: 3
• Additional devices possible: No

Specifications

• Installation depth: 70 mm
• Food Contact Material: No
• REACH: Yes
