Luminaire Sense Opalprism 597x597mm 3000K IP40 White SG Armaturen

Description

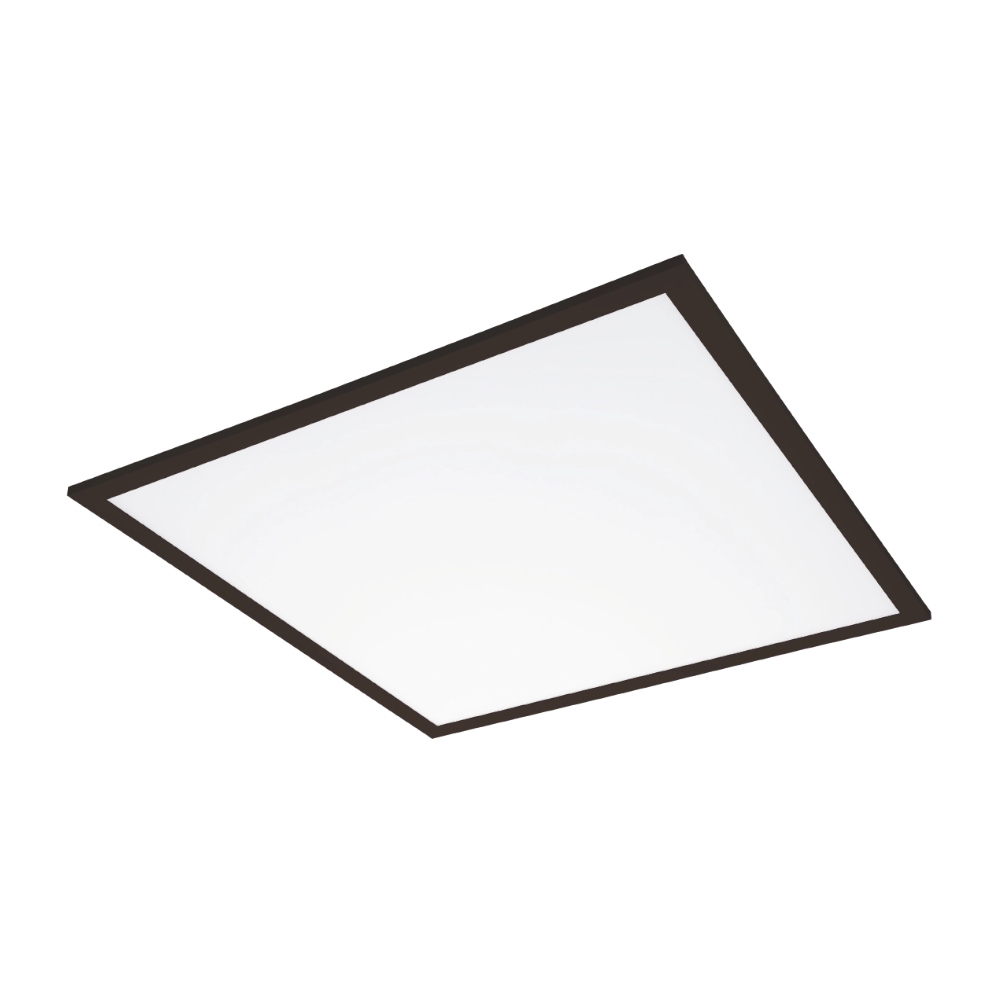

Rectangular Black LED panel with opal prismatic shielding. Can be placed in T-profiles, mounted on the surface with an extension frame or suspended with a wire set. Driver is ordered separately (lumen is determined by driver) 700mA 26W 3250lm, 900mA 33W 4180lm and 1050mA 40W 4900lm.

Technical Information

• Color temperature: 3000 - 3000K
• Color rendering index (CRI/Ra): 80-89
• Adapted for VDU work (EN 12464-1): No
• Number of poles: 2
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Bluetooth controlled: No
• No dimmer function: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): Yes
• Dimming depending on driver: No
• Dimming DALI: No
• Dimming DALI-2: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phasecut-on): No
• Dimming GPRS: No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming with push button: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Adjustable light distribution: No
• Adjustable luminous flux: No
• Protection class (IP): IP40
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Google Assistant: No
• Minimum energy efficiency class for replacement lamps: A++
• Suitable for built-in/recessed installation: Yes
• Suitable for emergency lighting: No
• Suitable for pendant suspension: Yes
• Suitable for ramp installation: No
• Suitable for ceiling installation: Yes
• Suitable for surface mounting: Yes
• Suitable for wall mounting: No
• Suitable number of light sources: 1
• Conductor area: 1 mm²
• Light distribution: Symmetrical
• Light source: LED (not replaceable)
• Light distribution angle: Open beam
• Light outlet: Direct
• Programmable dimming: No
• RF dimming: No
• Sine wave dimming (Sine Wave Reduction): No
• Manufacturer-specific dimming: No
• Zigbee dimming: No
• Driver: LED driver (constant current)
• Driver included: No
• Power factor: 100
• Energy efficiency class built-in lamps: A++, A+, A (LED)
• Energy efficiency class supplied replacement lamps: A++
• Light color adjustable: No
• Color fastness (McAdam ellipse): SDCM3
• Glowing wire test (IEC 60695-2-11): None
• Highest energy efficiency class for replacement lamps: A++
• Integrated emergency power supply: No
• With light source: Yes
• With light sensor: No
• With air gap: No
• With motion sensor: No
• With IFTTT support: No
• Nominal lifetime L70/B50 at 25 °C: 0 h
• Nominal lifetime L80/B10 at 25 °C: 0 h
• Nominal lifetime L90/B10 at 25 °C: 0 h
• Nominal ambient temperature according to IEC 62722-2-1: 0 - 25 °C
• Insulation cover: No
• Roster design: None
• Protection class (IEC 61140): III
• Impact resistance (IK): IK10
• Voltage type: DC
• Type of wiring: Suitable for through-wiring
• Replaceable driver: Yes

Specifications

• Light color: White
• Color housing/enclosure/frame: Black
• Material dome/cover: Plastic (opal)
• Material housing/enclosure/frame: Aluminum
• Food Contact Material: No
• REACH: No
• ROHS: Yes
• Length: 597 mm
• Width: 597 mm
• Height/depth: 10 mm
• Installation height/depth: 49 mm
