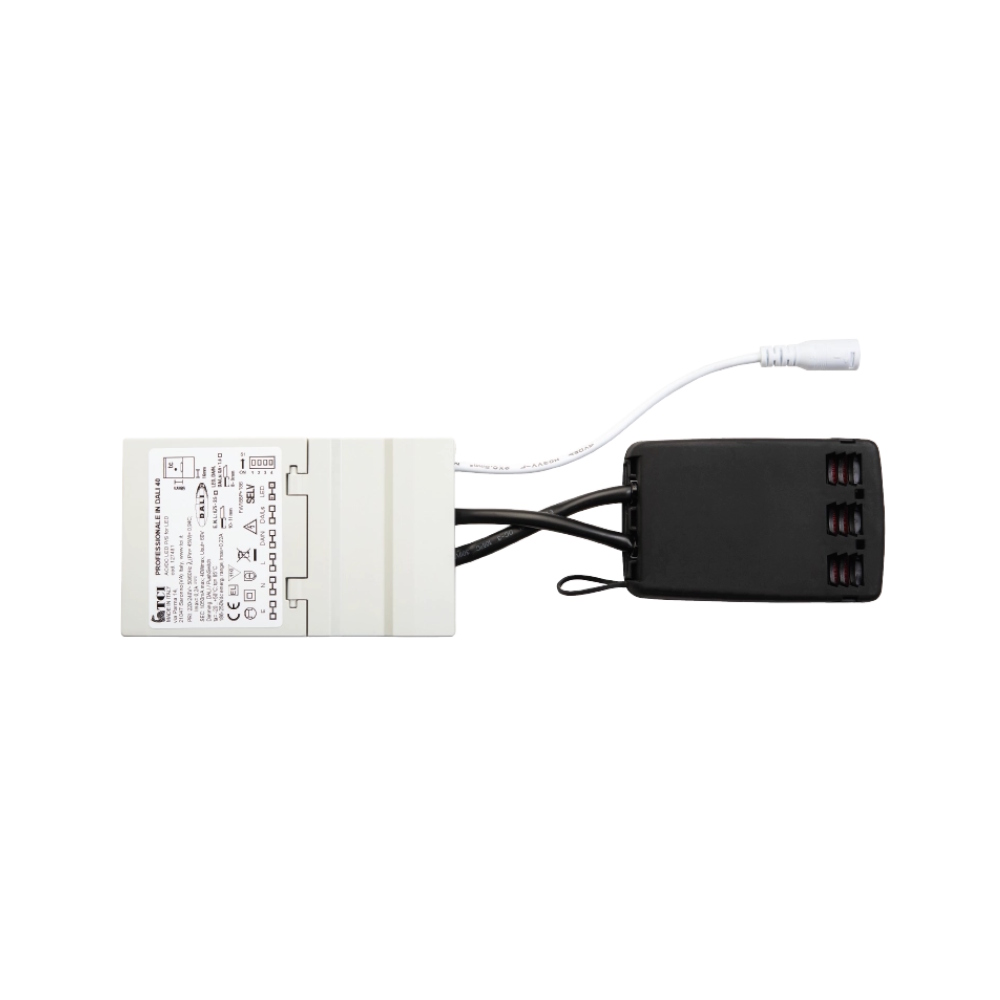

Driver Kit Sense Dali 900mA 32W 220-240V 4000lm IP20 SG Armaturen

Description

Driverkit with quick connection for Sense LED-Platta. SG's new junction boxes have several connection options, both for cable and flex tube. Selected models also have Linect connection integrated which enables the use of quick connection systems from Wago, Ensto and Wieland. All connections can be made without tools. The models with Linect offer a solution with full flexibility, something that previously had to be customized and procured with long delivery times as a result.

Technical Information

• Voltage: 220-240V
• System power: 32W
• Driver: 900mA
• Output current from/to: 350-1050mA
• Output voltage: 15-54V
• Output power from/to: 35 - 35W
• Suitable for outdoor use: No
• Protection class (IP): IP20
• Type of light control: Dali
• Bluetooth controlled: No
• CLO: Yes
• Dimmer function missing: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): No
• Dimming DALI: Yes
• Dimming DALI-2: Yes
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phasecut-on): No
• Dimming GPRS: No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming with push button: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Programmable dimming: Yes
• RF dimming: No
• Sine Wave Reduction dimming: No
• Manufacturer specific dimming: No
• Zigbee dimming: No
• Dimmable: Yes
• DoC (CE): Yes
• Indoor/Outdoor: Indoor placement
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Casambi: No
• Compatible with Google Assistant: No
• Suitable for constant voltage: No
• Suitable for constant current: Yes
• Suitable for direct current DC (primary side): No
• Maximum number of luminaires per circuit breaker B16: 55
• Maximum number of luminaires per circuit breaker C16: 91
• With IFTTT support: No
• Protection class (IEC 61140): II

Specifications

• Model/Version: Static
• Material: PC (polycarbonate)
• Housing/Enclosure/Body: Plastic housing
• Food Contact Material: No
• REACH: No
• ROHS: Yes
• Length: 138mm
• Height: 29.5mm
• Width: 67mm
