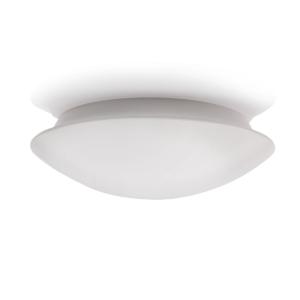

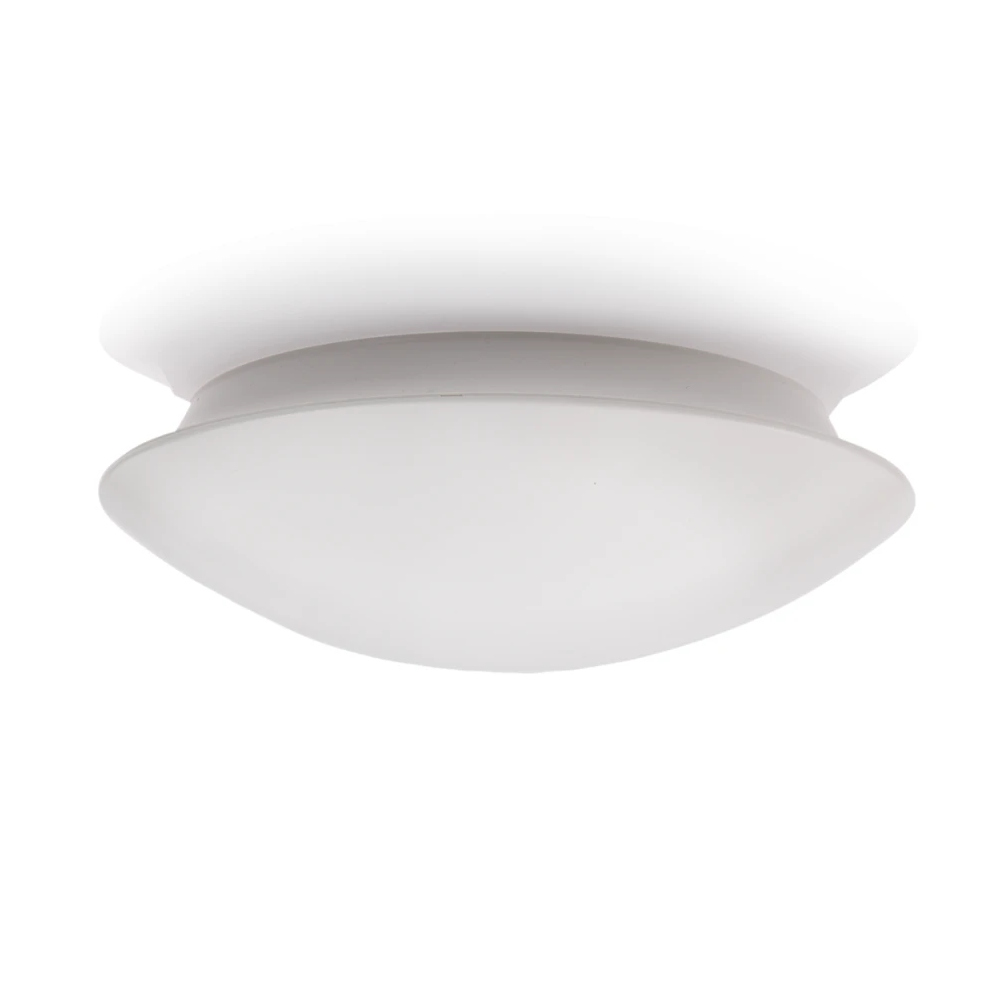

Luminaire LED Radar AVR400 830/840 27W White Legrand

Description

The AVR400 series from Ensto is a stylish ceiling light for entrances, corridors, stairwells, offices, hotel rooms and for all your home lighting needs.

Technical Information

• Impact resistance (IK): IK05
• Protection class (IEC 61140): I
• Number of poles: 5
• Driver: LED driver (constant current)
• Driver included: Yes
• Power factor: 0.93
• Suitable for built-in/recessed mounting: Yes
• Suitable for emergency lighting: Yes
• Suitable for ceiling mounting: Yes
• Suitable for surface mounting: Yes
• Suitable for wall mounting: Yes
• Suitable number of light sources: 1
• Conductor area: 2.5mm²
• Light distributor/diffuser: Diffuser lens/optics/panel
• Light distribution: Symmetrical
• Light source: LED (replaceable)
• Light distribution angle: Open beam
• Light output: Direct
• Max. system power: 27W
• With light source: Yes
• With light sensor: Yes
• With motion sensor: Yes
• Color of light adjustable: Modes
• Color rendering index (CRI/Ra): 80-89
• Nominal service life L70/B50 at 25 °C: 100000 h
• Cover with insulation: Yes
• Roster design: None
• Voltage type: AC
• Connection type: Push-in terminal (quick terminal)
• Type of wiring: Suitable for through wiring

Specifications

• Light color: White
• Color of housing/enclosure/frame: White
• Material of housing/enclosure/frame: Plastic
• ROHS: Yes
• Height/depth: 127mm
• Length: 400mm
• Width: 400mm
• Installation diameter: 390mm
• Installation height/depth: 43mm
