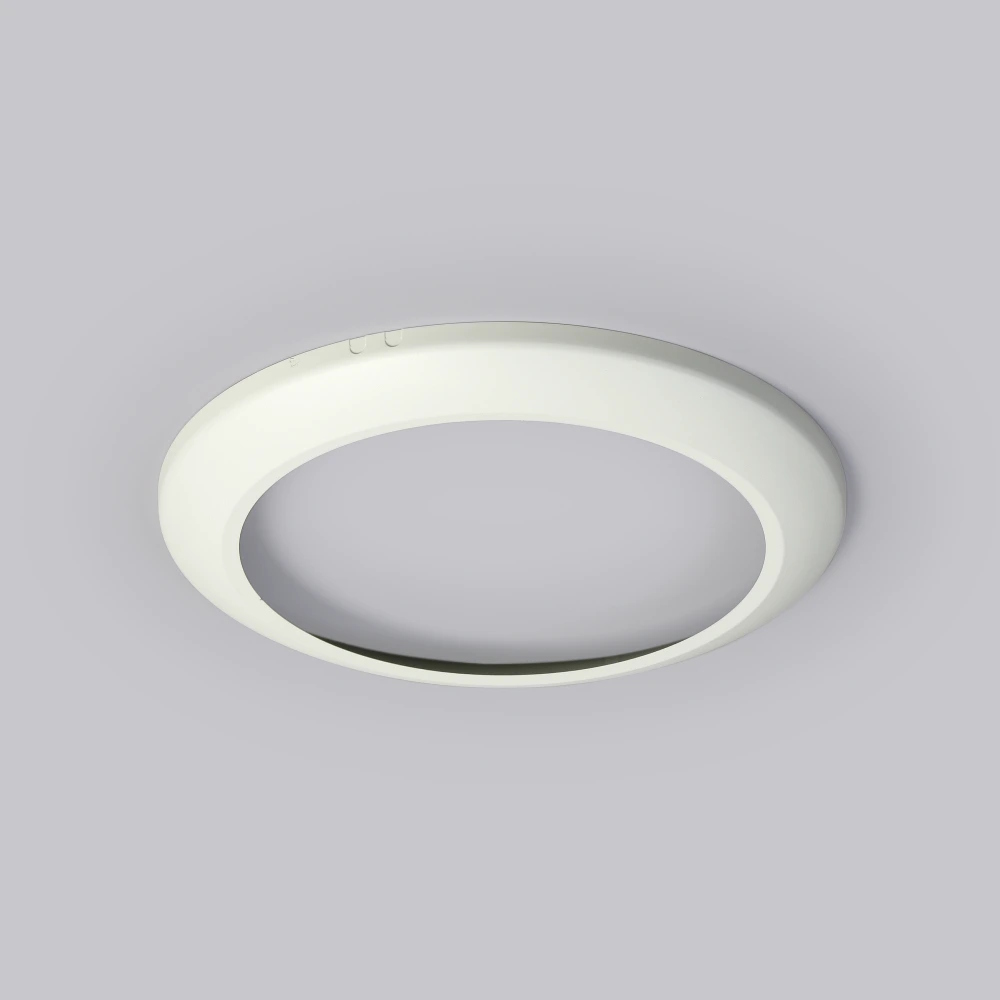

Decorative Frame For AVR400 Diameter 500mm White Legrand

Description

Body and cover in impact-resistant polycarbonate (AVR 254 cover in acrylic). For both recessed and surface-mounted installation. Several decorative frames as accessories.

PIR Motion detector

The light turns on automatically when someone enters the detector area and turns off after a set time, when movement is no longer detected. Detection area: 360º, approx. 7m diameter at 2.5m height. Temperature range -5º to +40ºC, Adjustable operating time 330 minutes. Adjustable twilight relay 1- lux. Can also control other fixtures max. 400VA fluorescent lamp load or 1000W incandescent light.

Mounting

For mounting in the ceiling, against the wall or above a ceiling box. Fastening details for recessed mounting are included as standard. AVR320: the center plate is removable and can be attached to the installation site before the luminaire body itself is bayoneted onto it. AVR 400: rotatable transparent base plate.

Connection

The luminaire is equipped with a five-pole plug-in terminal block 5x2.5. Knockout openings on the sides and two membrane-equipped openings in the bottom. AVR320 is also available for order with NET connection (NAC31.W) on the side of the luminaire housing, note! IP20.

Light sources

• IAA,GLS, 100W, E27 base
• FBT, 23W, E27 base (TC-DSE)
• FSD, TC 9W, G23 base
• FSD-E, TC-SEL 9W, 2G7 base
• FSQ, TC-DEL 18W, G24q-2 base
• FSQ, TC-D 26W, G24d-3 base
• FSD, TC-L 18W, 2G11 base
• Including light sources, except E27 base.

Insulation class

• AVR254: Class II
• AVR320/AVR400: Class I, (7533700 Class II)

Enclosure class

• AVR254: IP54
• AVR320/AVR400: IP44

Specifications

• Color: White
• Material: Aluminum
• Length: 500mm
• Width: 500mm
• Diameter: 500mm
• Height: 42mm
• ROHS: Yes
