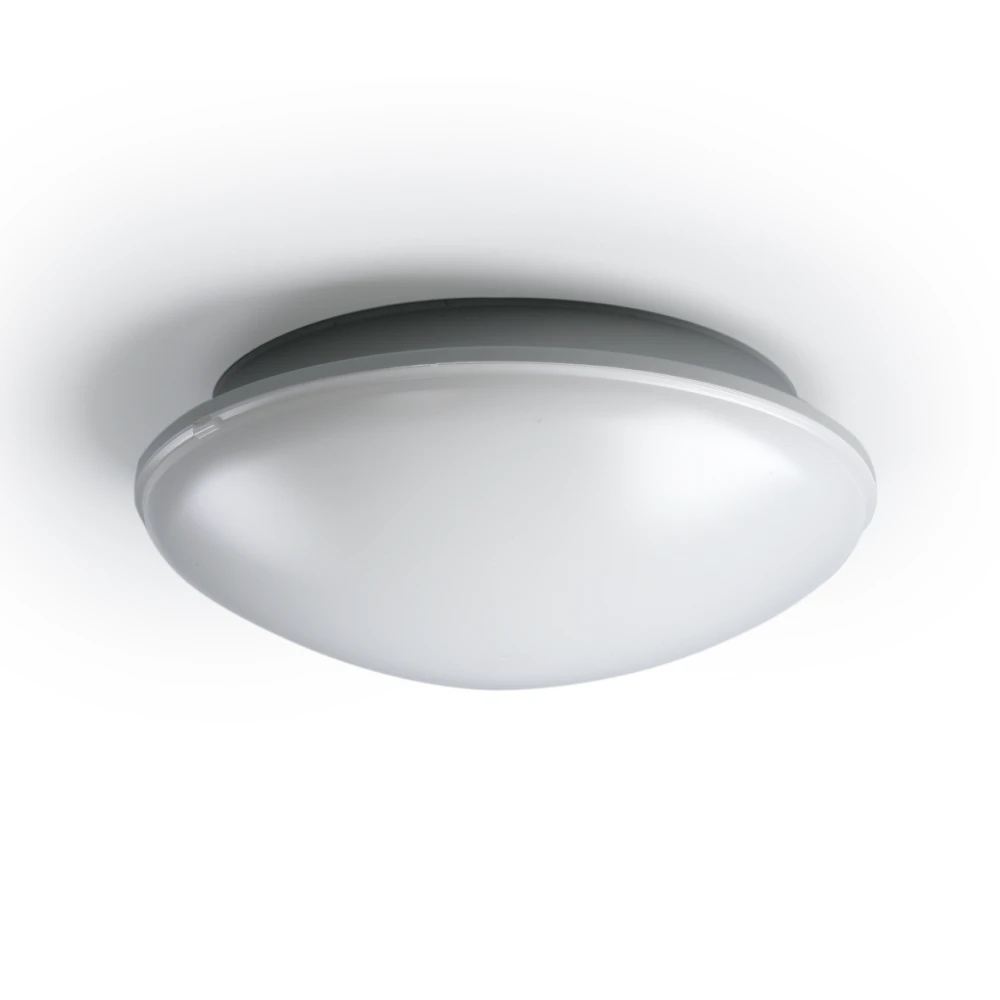

Luminaire LED Radar AVR254 830/840 8W IP54 White Legrand

Description

The AVR254 series from Ensto provides a pleasant glow through the acrylic dome with a satin finish. The light in the luminaire is distributed evenly and uniformly. The AVR254 is suitable for both outdoor and indoor use and is also available with PIR and Radar models. With good lighting technology, easy installation, several decorative rings and visor, the AVR254 luminaire has a wide range of applications. One luminaire with many appearances.

Technical Information

• Impact resistance (IK): IK03
• Protection class (IEC 61140): II
• Number of poles: 3
• Driver: LED driver (constant current)
• Driver included: Yes
• Suitable for built-in/recessed installation: Yes
• Suitable for ceiling mounting: Yes
• Suitable for surface mounting: Yes
• Suitable for wall mounting: Yes
• Suitable number of light sources: 1
• Conductor cross-section: 2.5 mm²
• Light distributor/diffuser: Diffuser lens/optics/panel
• Light distribution: Symmetrical
• Light source: LED (replaceable)
• Light distribution angle: Open beam
• Light outlet: Direct
• Maximum number of luminaires per circuit breaker B16: 68
• Maximum number of luminaires per circuit breaker C16: 113
• Max. system power: 7.4W
• With light source: Yes
• With light sensor: Yes
• Power factor: 0.9
• Energy efficiency class light source (EU 2019/2015): C
• Color of light adjustable: Modes
• Color fastness (McAdam ellipse): SDCM3
• Color rendering index (CRI/Ra): 80-89
• Glowing wire test (IEC 60695-2-11): None
• Luminous flow adjustment: Modes
• With motion sensor: Yes
• Nominal lifetime L70/B50 at 25 °C: 100000h
• Insulation cover: Yes
• Voltage type: AC
• Connection type: Push-in terminal (quick terminal)
• Type of wiring: Suitable for through-wiring
• Replaceable driver: Yes

Specifications

• Light color: White
• Glass finish: Matt
• Material housing/enclosure/frame: Plastic
• Material Cover/Cover: Plastic (opal)
• Surface protection housing/enclosure/frame: Untreated
• ROHS: Yes
• Outer diameter: 254mm
• Height/depth: 91mm
• Width: 254mm
• Installation diameter: 240mm
• Installation height/depth: 85mm
