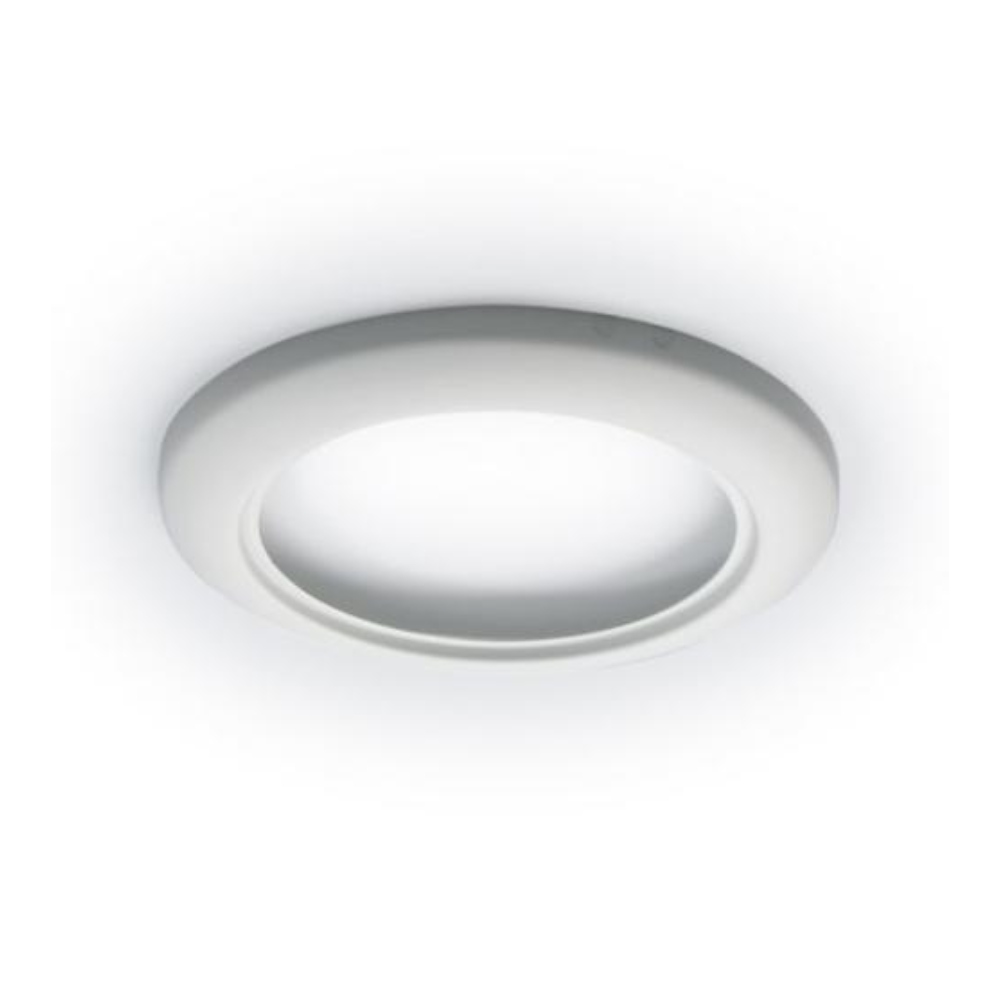

Decorative Frame Diameter 340mm White Legrand

Description

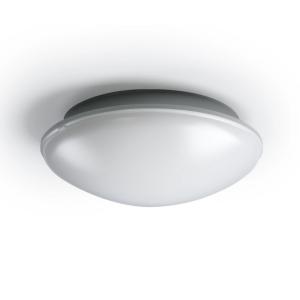

Body and cover in impact-resistant polycarbonate (AVR254 cover in acrylic). Both for recessed and surface-mounted installation. Several decorative frames as accessories.

PIR Motion detector

The light turns on automatically when someone enters the detector area and turns off after a set time, when movement is no longer detected. Detection area: 360º, approx. 7m diameter at 2.5m height. Temperature range -5º to +40ºC, Adjustable operating time 330 minutes. Adjustable twilight relay 1- lux. Can also control other fixtures max. 400VA fluorescent tube load or 1000W incandescent light.

Installation

For installation in the ceiling, against the wall or above the ceiling box. Fastening details for recessed installation are included as standard. AVR320: the center plate is removable and can be attached to the installation site before the luminaire body itself is bayoneted onto it. AVR 400: rotatable transparent base plate.

Connection

The luminaire is equipped with a five-pole plug-in terminal block 5x2.5. Knockout openings on the sides and two membrane-equipped openings in the bottom. AVR320 is also available for order with NET connection (NAC31.W) on the side of the luminaire housing, note! IP20.

Light sources

• IAA,GLS, 100W, E27 base
• FBT, 23W, E27 base (TC-DSE)
• FSD, TC 9W, G23 base
• FSD-E, TC-SEL 9W, 2G7 base
• FSQ, TC-DEL 18W, G24q-2 base
• FSQ, TC-D 26W, G24d-3 base
• FSD, TC-L 18W, 2G11 base
• Including light sources, except E27 base.

Insulation class

• AVR254: Class II
• AVR320/AVR400: Class I, (7533700 Class II)

Enclosure class

• AVR254: IP54
• AVR320/AVR400: IP44

Specifications

• Color: White
• Material: Aluminum
• Length: 340mm
• Width: 340mm
• Diameter: 340mm
• Height: 34mm
• ROHS: Yes
