LK PressPex T-Coupling Internal Thread Playful Nut Branch

PressPex T-pipe with playful nut for connecting LK PE-X and LK PAL Universal Pipe to G20 thread.

LK PressPex T-Coupling Internal Thread Playful Nut Branch

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

LK PressPex T-Coupling Internal Thread Playful Nut Branch

PressPex T-pipe with playful nut for connecting LK PE-X and LK PAL Universal Pipe to G20 thread.

Description

PressPex T-pipe with playful nut for connecting LK PE-X and LK PAL Universal Pipe to external EuroCone on e.g. LK Manifold UNI or LK Ball Valve with G20 thread.

Specifications

  • Pressure/Flow/Temp: PN10, max temp +70°C (+95°C)
  • Function: Press joint tap water/heating/cooling
  • Design: 2 x sleeve x internal union nut
  • Color: Nickel
  • Surface treatment: Nickel-plated
  • Material: AZH brass
  • Standard: Press tool LK
  • Other info: With leak indication unpressed
  • Material connection 1: Brass
  • Material quality connection 1: Dezincification-resistant brass (DZR)
  • Surface protection connection 1: Nickel-plated
  • Surface treatment connection 1: Untreated
  • Material connection 2: Brass
  • Material quality connection 2: Dezincification-resistant brass (DZR)
  • Surface protection connection 2: Nickel-plated
  • Surface treatment connection 2: Untreated
  • Material connection 3: Brass
  • Material quality connection 3: Dezincification-resistant brass (DZR)
  • Surface protection connection 3: Nickel-plated
  • Surface treatment connection 3: Untreated
  • Model/Version: T-piece
  • Curved branch: No
  • Multi-part: No
  • System-bound: Yes
  • Connection 1: Press sleeve
  • Connection dimension 2: Conn. 20 (3/4")
  • Connection 2: Union nut
  • Connection 3: Press sleeve
  • Material seal: EPDM (ethylene propylene rubber)
  • Max. working pressure at 20°C (PN): 10 bar
  • With gaskets: No
  • With drain valve: No
  • With air vent/bleeder: No
  • With internal stop edge: Yes
  • With protective cap/plug: No
  • FM-marked: No
  • LPCB-marked: No
  • ULC-marked: No
  • UL-marked: No

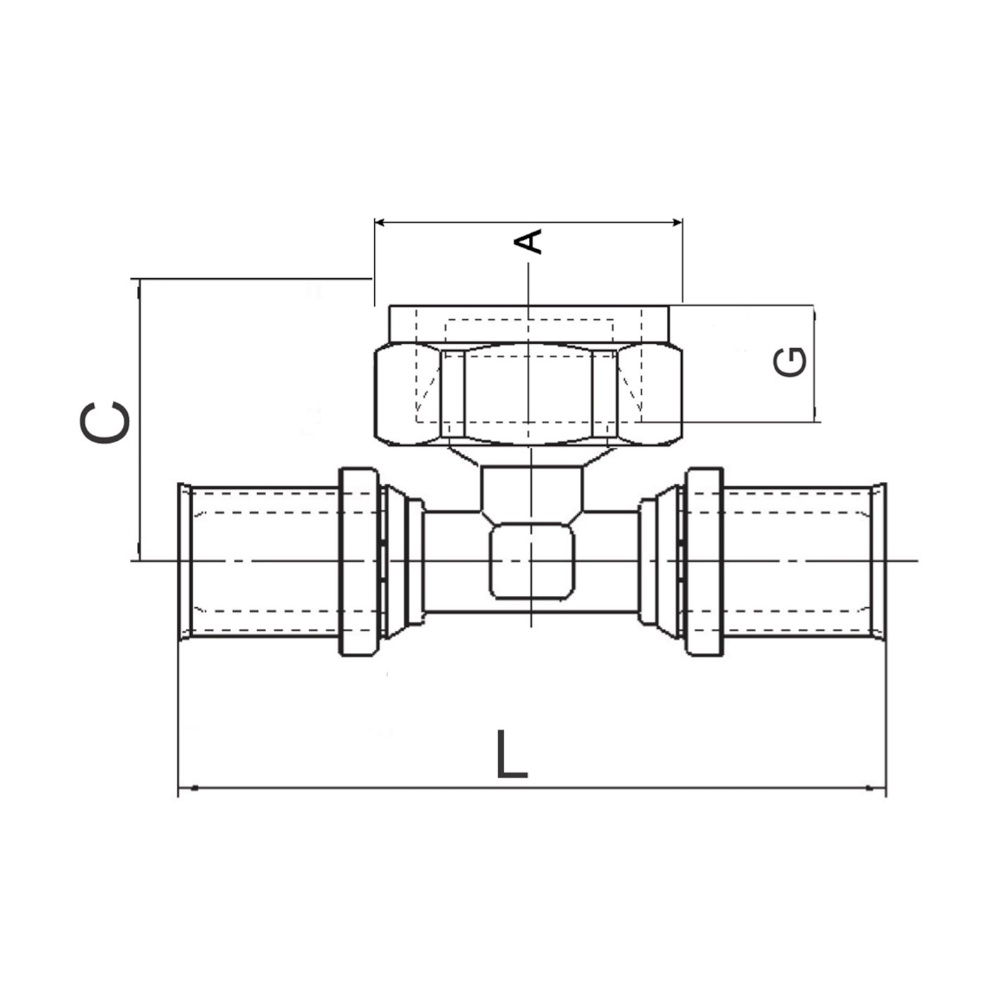

Article Number        A mm        C mm        G mm        L mm

      1882316                  30              32.5           11.5            106

      1882317                  30              32.5           11.5            106

      1882318                  30             32.5            11.5            106

      1888507                  30              33              11.5          122.5

      1888508                  30              33              11.5            146

      1888509                  30            37.5             11.5           146

      1888511                  30             38               11.5           148
