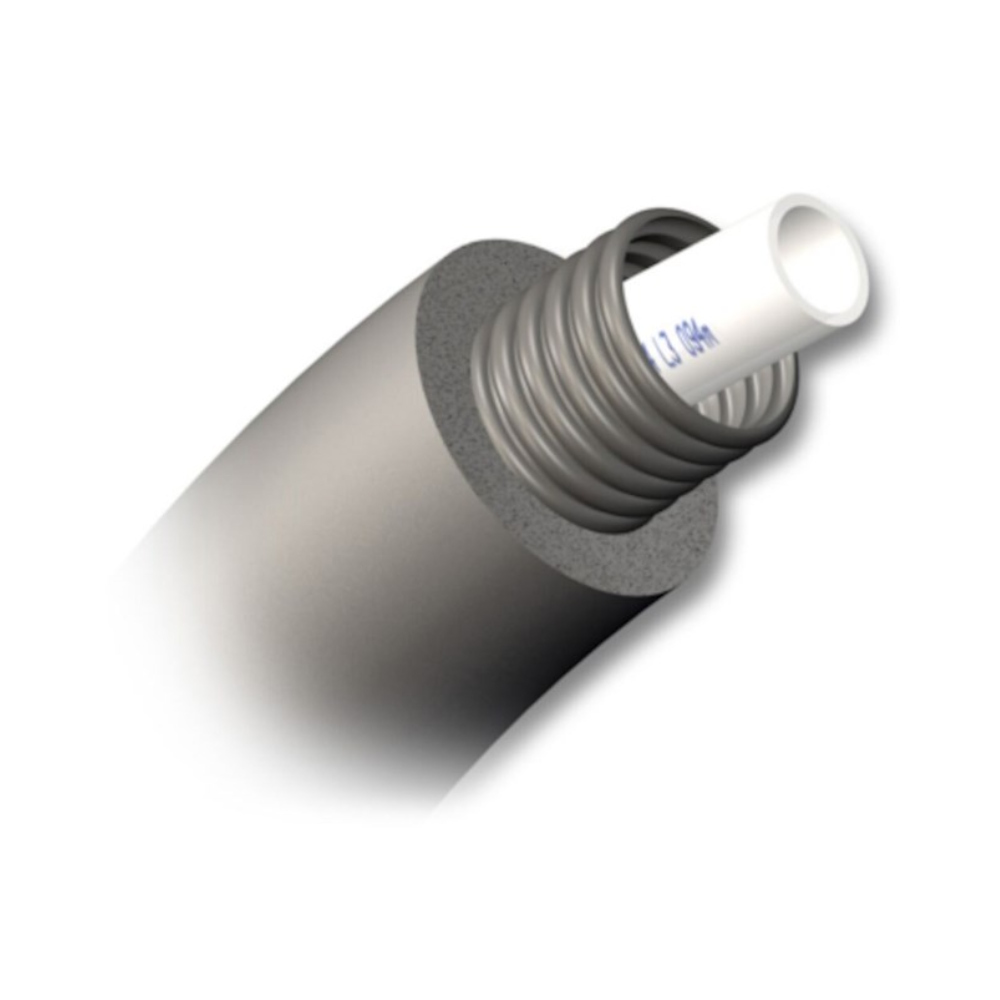

LK PE-X Universal Pipe With Extra Insulated Hollow Pipes RiR 20x2.5mm 50m

Delivered assembled in hollow pipes made of PP with external insulation made of polyethylene.

LK PE-X Universal Pipe With Extra Insulated Hollow Pipes RiR 20x2.5mm 50m

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

LK PE-X Universal Pipe With Extra Insulated Hollow Pipes RiR 20x2.5mm 50m

Delivered assembled in hollow pipes made of PP with external insulation made of polyethylene.

Description

Delivered assembled in hollow pipes made of PP with external insulation made of polyethylene. Delivered rolled in cardboard packaging.

Specifications

  • Dimension: 20x2.5mm
  • Size: L=50m ring
  • Pressure/Flow/Temp: PN10, max temp +70°C (+95°C)
  • Function: Tap water, heating, cooling
  • Design: With diffusion barrier/insulation
  • Color: Gray
  • Material: PE-Xa/PE
  • Material quality inner layer: PE-Xa
  • Material quality middle layer: EVOH
  • Material quality outer layer: PE-Xa
  • Number of layers: 5
  • Glass fiber reinforced: No
  • Diffusion barrier: Yes
  • Dimension (Nominal diameter): DN 15
  • Outer pipe diameter: 20mm
  • Wall thickness/Material thickness: 2.5mm
  • System-bound: Yes
  • Max. media temperature (instantaneous): 95 °C
  • Max. working pressure at 20°C (PN): 10 bar
  • Wall roughness: 0.0005mm
  • Coefficient of linear expansion: 12mm/(m.K)
  • Flexible: Yes
  • Suitable for surface mounting: No
  • Minimum bending radius: 45mm
  • Tube color: White
  • With protective tube: Yes
  • Outer diameter of protective tube: 34mm
  • Outer sheath color: Grey
  • With thermal insulation: Yes
  • Thickness of thermal insulation: 13mm
  • Color of thermal insulation: Grey
  • With protective cap/plug: No
