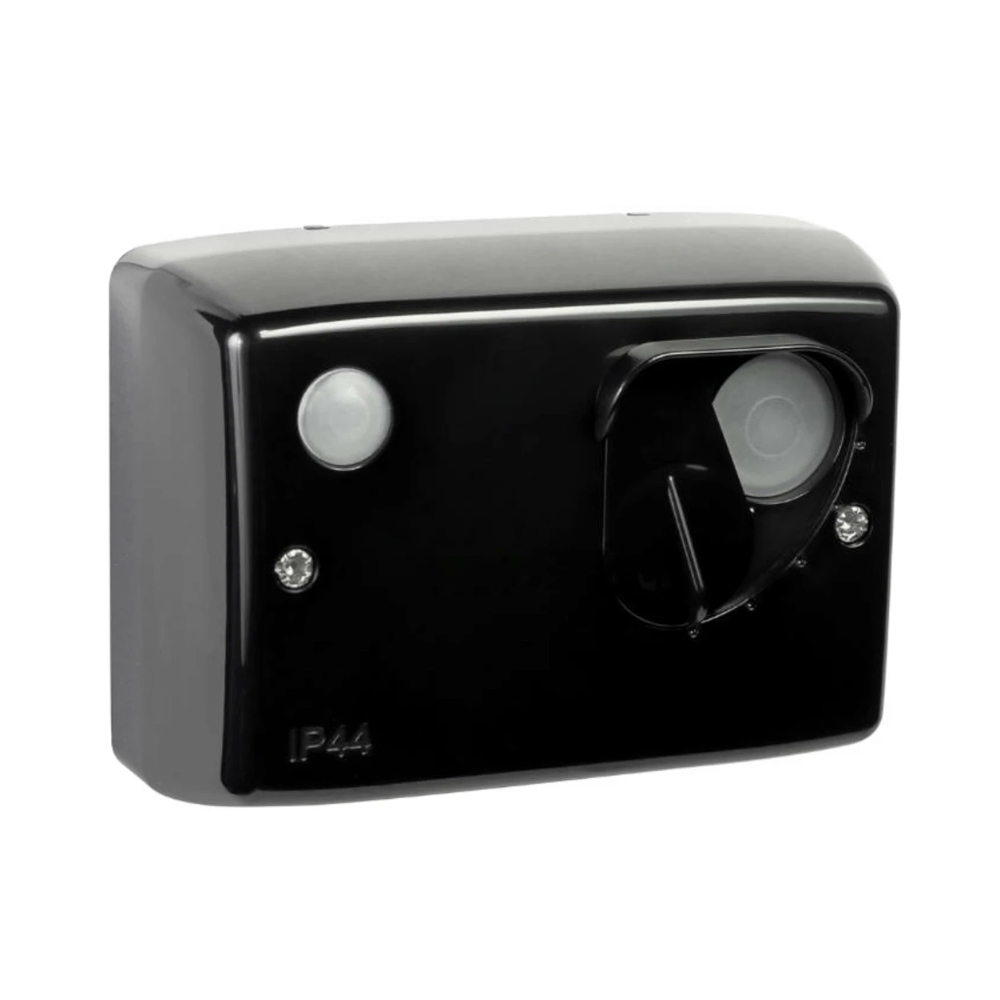

Light Relay FC 16A 230V IP44 Black Elko

Description

Light relay FC 16A, for surface mounting, 16A, 230V Protection class IP44. Light relay for all types of loads up to 16A. External adjustment of the light level, 4-400lux. Internal test button with momentary function. Built-in overvoltage protection. Time delay on 0 sec, off 40 sec.

Technical Information

• Sensor type: Built-in light sensor
• Contacts: Normally open (NO)
• Switch-on brightness: 3 - 400 lx
• Switch-off brightness: 3 - 40 lx
• Switch-off delay: 40 s
• Switch-on delay: 0 s
• Max. switching power: 3600W
• For capacitive load: No
• With automatic night switch-off: No
• Mounting method: Surface-mounted
• Swivelable: No
• Rated voltage: 230V
• Max. switching current (resistive load): 16A
• Operating temperature: 0 - 0 °C
• Suitable for protection class: IP44
• With DALI interface: No
• Minimum depth of flush-mounted installation box: 0 mm
• Compatible with Apple HomeKit: No
• Compatible with Google Assistant: No
• Compatible with Amazon Alexa: No
• With IFTTT support: No

Specifications

• Material: Plastic
• Material quality: Thermoplastic
• Halogen-free: No
• Surface protection: Untreated
• Surface type: Glossy
• Colour: Black
• RAL number (similar): 9005
• Transparent: No
