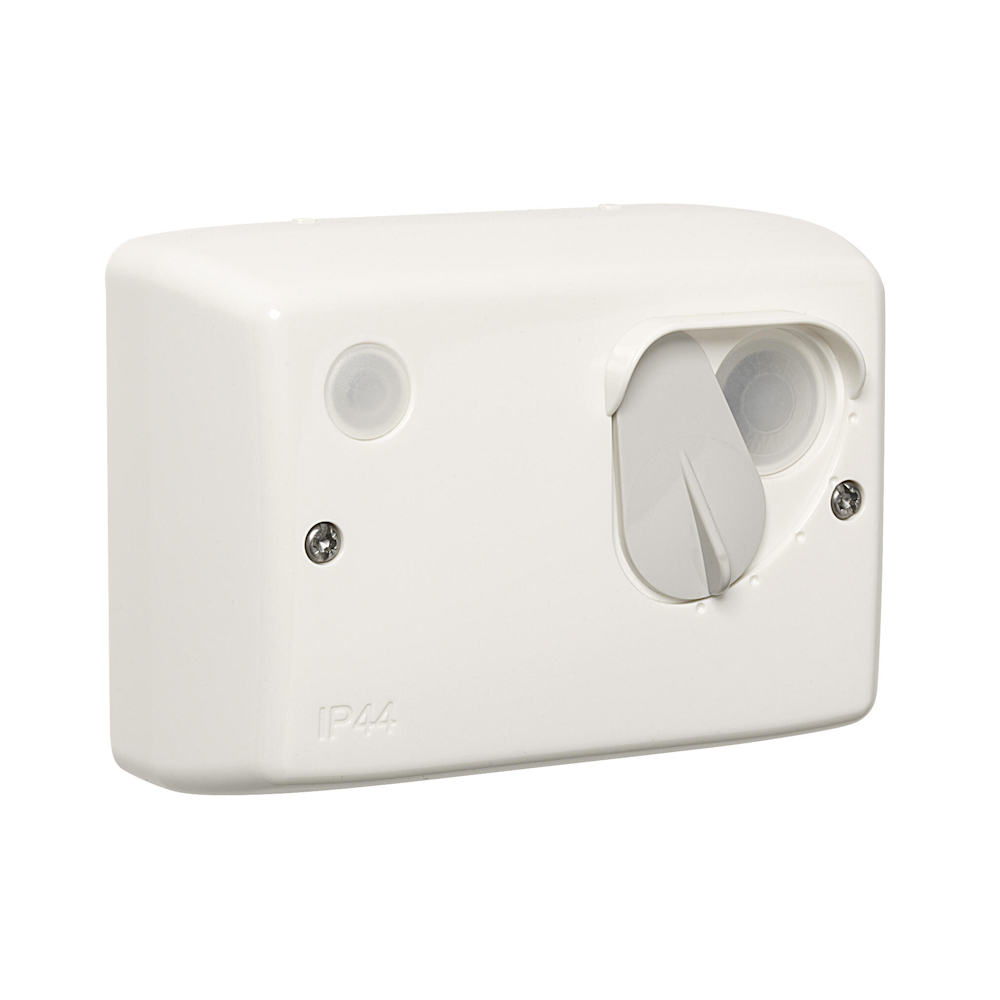

Light Relay 16A 230V 4-400lux IP44 Fjällvit Elko

Description

Light relay FC 16A, for surface mounting, 16A, 230V Protection class IP44. Light relay for all types of loads up to 16A. External adjustment of the light level, 4-400lux. Internal test button with momentary function. Built-in overvoltage protection. Time delay on 0 sec, off 40 sec.

Technical Information

• Sensor type: Built-in light sensor
• Contacts: Normally open (NO)
• Switch-on brightness: 4-400 lx
• Switch-off brightness: 4-400 lx
• Switch-off delay: 40 s
• Switch-on delay: 0 s
• Max. switching power: 3600 W
• For capacitive load: No
• With automatic night switch-off: No
• Mounting method: Surface-mounted
• Swivelable: No
• Rated voltage: 230 V
• Max. switching current (resistive load): 16 A
• Fluorescent tube load: 26mm with ballast 16A cos phi 0.9, 38mm with filament transformer 10A
• Operating temperature: -30–60 °C
• Suitable for protection class (IP): IP44
• Minimum depth of flush-mounted installation box: 0 mm

Specifications

• Colour: White
• RAL number (similar): 9010
• Type of surface: Glossy
• Surface protection: Untreated
• Transparent: No
• Material: Plastic
• Material quality: Thermoplastic
• Halogen-free: Yes
