Ledused G5 Recessed LED Panel 24W 220-240V 3425lm 3000K CRI80-89 MPO IP20 White Solar Light

Description

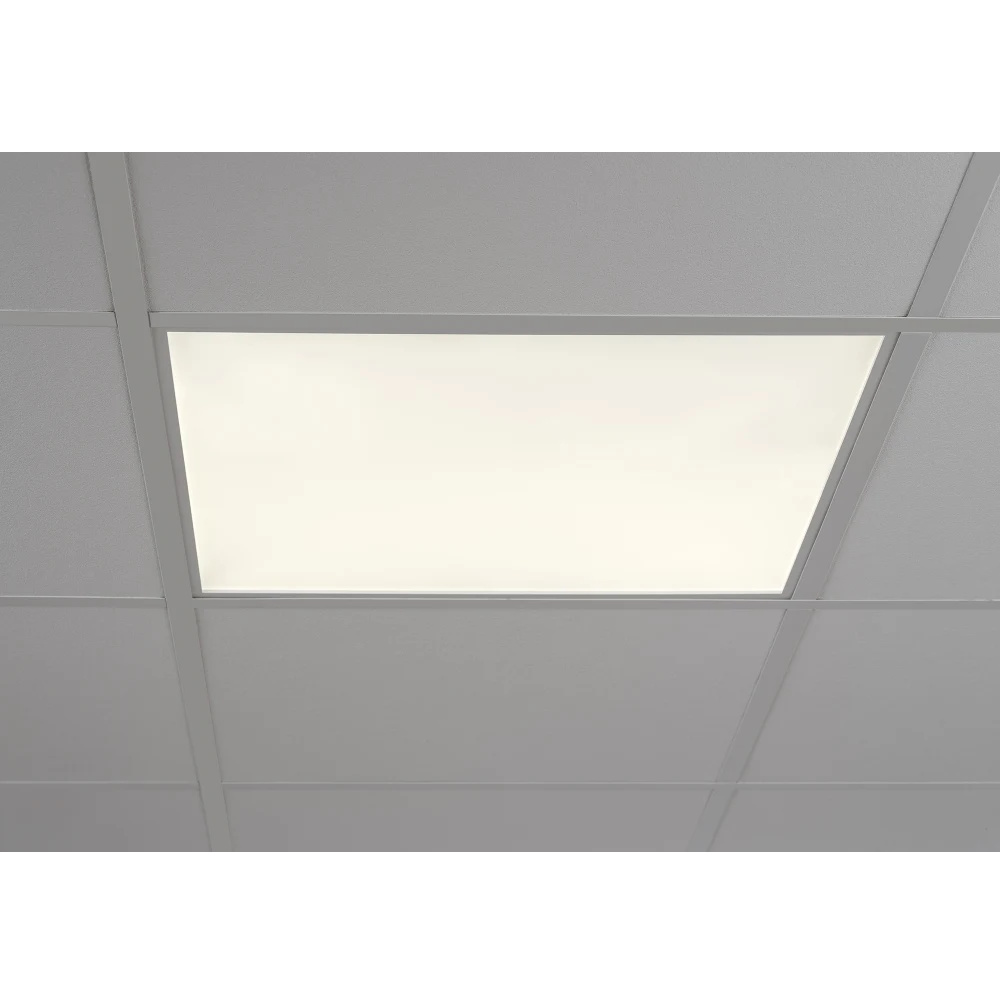

Ledused G5 LED panel in class II, with color temperature 3000K, CRI 80-89, wide beam microprismatic optics, 2.5m connection cable with Schuko plug and luminous flux of 3425lm. The luminaire is supplied with Easy Air BT, which means integrated sensor with combined PIR motion sensor, daylight sensor and wireless communication, which provides a very flexible sensor solution with many possible applications. With Easy Air BT technology and quality drivers, the system ensures maximum energy savings with the basic idea of "the right amount of light, in the right place and at the right time". The system is easily configured via an App (Philips MasterConnect) and a smartphone that can communicate via Bluetooth. Easy Air BT luminaires can be added to groups and zones, wireless wall switches can be added, light levels, hold times and other parameters can be adjusted. The luminaire is 595x595 mm and is intended for ceiling mounting (module 600x600) with visible T-rails. Alternatively mounted as surface-mounted (requires accessories). The LED and driver technology used is of the highest quality, which guarantees that there is no annoying flicker or stroboscopic effect; "Flicker-free" according to the requirements of the EU Ecodesign Directive. The efficient microprismatic optics in PMMA are optimized to meet glare requirements according to specific UGR values specified in the DS/EN12464-1 standard, ensuring low glare and optimal lighting comfort. The Ledused G5 series, with its wide and flexible range, is very useful in many different indoor locations such as; office environments, schools and other educational institutions, hospitals and healthcare sectors etc. where a discreet, efficient and technical lighting solution is required. Connection via 2.5m cable with Schuko plug.

Technical Information

• Nominal luminous flux: 3425 lm
• Color temperature: 3000 - 3000 K
• Type of light control: Zigbee
• Color rendering index (CRI/Ra): 80-89
• Suitable for VDU work (EN 12464-1): Yes
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Luminous flux maintenance at average lifetime 50,000 h (25 °C
• ambient): 90%
• Luminous flux maintenance at average lifetime 75,000 h (25 °C
• ambient): 85%
• Bluetooth controlled: Yes
• Dimming Zigbee: Yes
• Distortion (THD): 20
• Driver: LED driver (constant current)
• Driver included: Yes
• EcoDesign: Yes
• Power factor: 0.9
• Enec: Yes
• Energy efficiency class: E
• Energy efficiency class light source (EU 2019/2015): E
• EPD: Yes
• Colour constancy (McAdam ellipse): SDCM3
• Flicker value Pst LM: 0.5
• Light distributor/diffuser: Diffuser lens/optics/panel
• Light distribution: Symmetrical
• Light source: LED (replaceable)
• Light beam angle: 40-80° (wide beam)
• Luminous efficiency: 143 lm/W
• Light outlet: Direct
• Rated voltage: 220 - 240 V
• Maximum number of luminaires per circuit breaker C13: 40
• Maximum number of luminaires per circuit breaker B10: 19
• Maximum number of luminaires per circuit breaker B16: 32
• Maximum number of luminaires per circuit breaker C10: 32
• Maximum number of luminaires per circuit breaker C16: 50
• Max. system power: 24 W
• With light source: Yes
• With light sensor: Yes
• With motion sensor: Yes
• Nominal service life L70/B50 at 25 °C: 100000 h
• Nominal service life L80/B10 at 25 °C: 100000 h
• Nominal service life L90/B10 at 25 °C: 50000 h
• Nominal service life L90/B50 at 25 °C: 55000 h
• Nominal service life L70/B10 at 25 °C: 100000 h
• Nominal service life L80/B50 at 25 °C: 100000 h
• Nominal ambient temperature according to IEC 62722-2-1: 0 - 40 °C
• Photobiological safety (EN 62471): RG1
• Glow-wire test (IEC 60695-2-11): 650 °C - 30 s
• Glow wire tested according to IEC 60695-2-10: 650 °C - 30 s
• Indoor/Outdoor: Indoor placement
• Luminous flow adjustment: Infinitely adjustable
• Protection class (IP): IP20
• Leakage current: 0.5
• Suitable for built-in/recessed installation: Yes
• Suitable for ceiling installation: Yes
• Driver life (h): 100000
• Cover with insulation: No
• R9 Value: 10%
• Sensor type: EasyAir
• Protection class (IEC 61140): II
• Impact resistance (IK): IK03
• Voltage type: AC
• Strobe power valueSVM: 0.4
• Connection type: Plug (male)
• Unified Glare Ratio (UGR): 19
• Replaceable driver: Yes

Specifications

• Material Dome/Cover: Plastic (structured)
• Color Housing/Enclosure/Frame: White
• Light Color: White
• Material: Aluminum
• Material Housing/Enclosure/Frame: Aluminum
• Cover Material: Acrylic
• RAL Number: 9016
• Surface Protection Housing/Enclosure/Frame: Powder Coated
• Length: 595 mm
• Width: 595 mm
• Height/Depth: 30 mm
• Food Contact Material: No
• REACH: No
