Ledused G5 Opal Recessed LED Panel 24W 220-240V 3550lm 3000K CRI80-89 EL-DS8 IP20 White Solar Light

Description

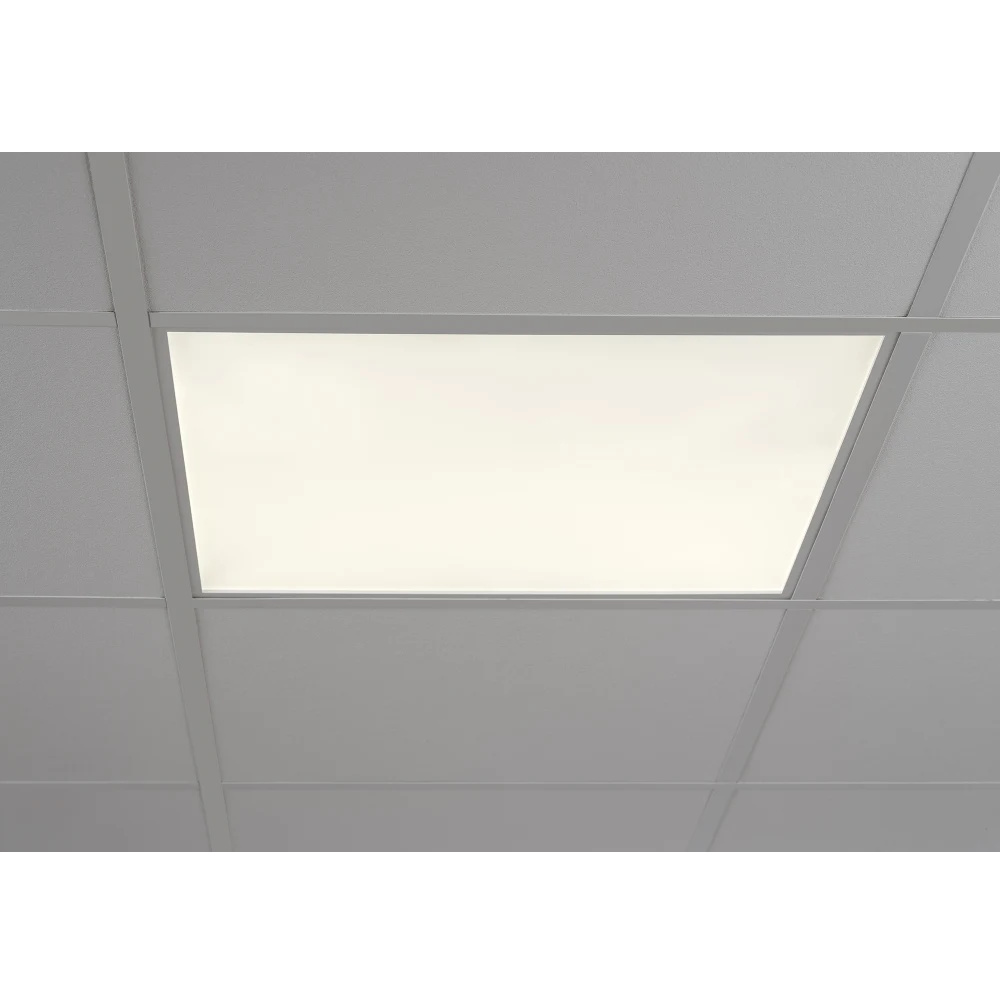

Ledused G5 LED panel in class II, with color temperature 3000K, CRI 80-89, wide beam opal diffuser, 2.5m connection cable with Schuko plug and adjustable light output up to 3700lm (factory setting is 3550lm). Supplied with on/off driver, with the possibility of changing the light output in 8 different steps via DIP switches; 14W/2075lm - 15W/2225lm - 17W/2525lm - 19W/2800lm - 20W/2950lm - 22W/3250lm - 24W/3550lm - 25W/3700lm. The luminaire is 595x595 mm and is intended for ceiling mounting (module 600x600) with visible T-rails. Alternatively mounted as surface-mounted (requires accessories). The LED and driver technology used is of the highest quality, which guarantees that there is no annoying flicker or stroboscopic effect; "Flicker-free" according to the requirements of the EU Ecodesign Directive. The opal diffuser is made of PMMA, is very easy to clean and ensures a pleasant and even distribution of light. The LEDUSED G5 series, with its wide and flexible range, is very useful in many different indoor locations such as; office environments, schools and other educational institutions, hospitals and healthcare sectors etc. where a discreet, efficient and technical lighting solution is required. Connection via 2.5m cable with Schuko plug.

Technical Information

• Nominal luminous flux: 3550 lm
• Color temperature: 3000 - 3000 K
• Type of light control: Not dimmable
• Color rendering index (CRI/Ra): 80-89
• Suitable for VDU work (EN 12464-1): No
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Maintained luminous flux at average lifetime 50,000 h (25 °C
• ambient): 90%
• Maintained luminous flux at average lifetime 75,000 h (25 °C
• ambient): 85%
• No dimmer function: Yes
• Distortion (THD): 10
• Driver: LED driver (constant current)
• Driver included: Yes
• EcoDesign: Yes
• Power factor: 0.95
• Enec: Yes
• Energy efficiency class: C
• Energy efficiency class light source (EU 2019/2015): C
• EPD: Yes
• Colour fastness (McAdam ellipse): SDCM3
• Flicker value Pst LM: 0.5
• Photobiological safety (EN 62471): RG1
• Light distributor/diffuser: Diffuser lens/optics/panel
• Light distribution: Symmetrical
• Light source: LED (replaceable)
• Light beam angle: Open beam
• Luminous efficiency: 148 lm/W
• Light outlet: Direct
• Rated voltage: 220 - 240 V
• Maximum number of luminaires per circuit breaker C13: 70
• Maximum number of luminaires per circuit breaker B10: 36
• Maximum number of luminaires per circuit breaker B16: 57
• Maximum number of luminaires per circuit breaker C10: 57
• Maximum number of luminaires per circuit breaker C16: 85
• Max. system power: 24 W
• With light source: Yes
• With light sensor: No
• Nominal service life L70/B50 at 25 °C: 100000 h
• Nominal service life L80/B10 at 25 °C: 100000 h
• Nominal service life L90/B10 at 25 °C: 50000 h
• Nominal service life L90/B50 at 25 °C: 55000 h
• Nominal service life L70/B10 at 25 °C: 100000 h
• Nominal service life L80/B50 at 25 °C: 100000 h
• Nominal ambient temperature according to IEC 62722-2-1: -20 - 40 °C
• Cover with insulation: No
• Glow-wire test (IEC 60695-2-11): 650 °C - 30 s
• Glow wire tested according to IEC 60695-2-10: 650 °C - 30 s
• Indoor/Outdoor: Indoor placement
• Luminous flow adjustment: Modes
• Protection class (IP): IP20
• Leakage current: 0.5
• Suitable for built-in/recessed mounting: Yes
• Suitable for ceiling mounting: Yes
• Driver life (h): 100000
• R9 Value: 10%
• Protection class (IEC 61140): II
• Impact resistance (IK): IK03
• Voltage type: AC
• Strobe power valueSVM: 0.4
• Connection type: Plug (male)
• Unified Glare Ratio (UGR): 22
• Replaceable driver: Yes
• Surface protection housing/enclosure/frame: Powder coated

Specifications

• Material Dome/Cover: Plastic (opal)
• Color housing/enclosure/frame: White
• Light color: White
• Material: Aluminum
• Material housing/enclosure/frame: Aluminum
• Cover Material: Acrylic
• RAL number: 9016
• Surface protection housing/enclosure/frame: Powder coated
• Length: 595 mm
• Width: 595 mm
• Height/depth: 20 mm
• Food Contact Material: No
• REACH: No
