LED Panel Sense Pro 700-1050mA 38W 4000K IP20/IP44 White SG Armaturen

Description

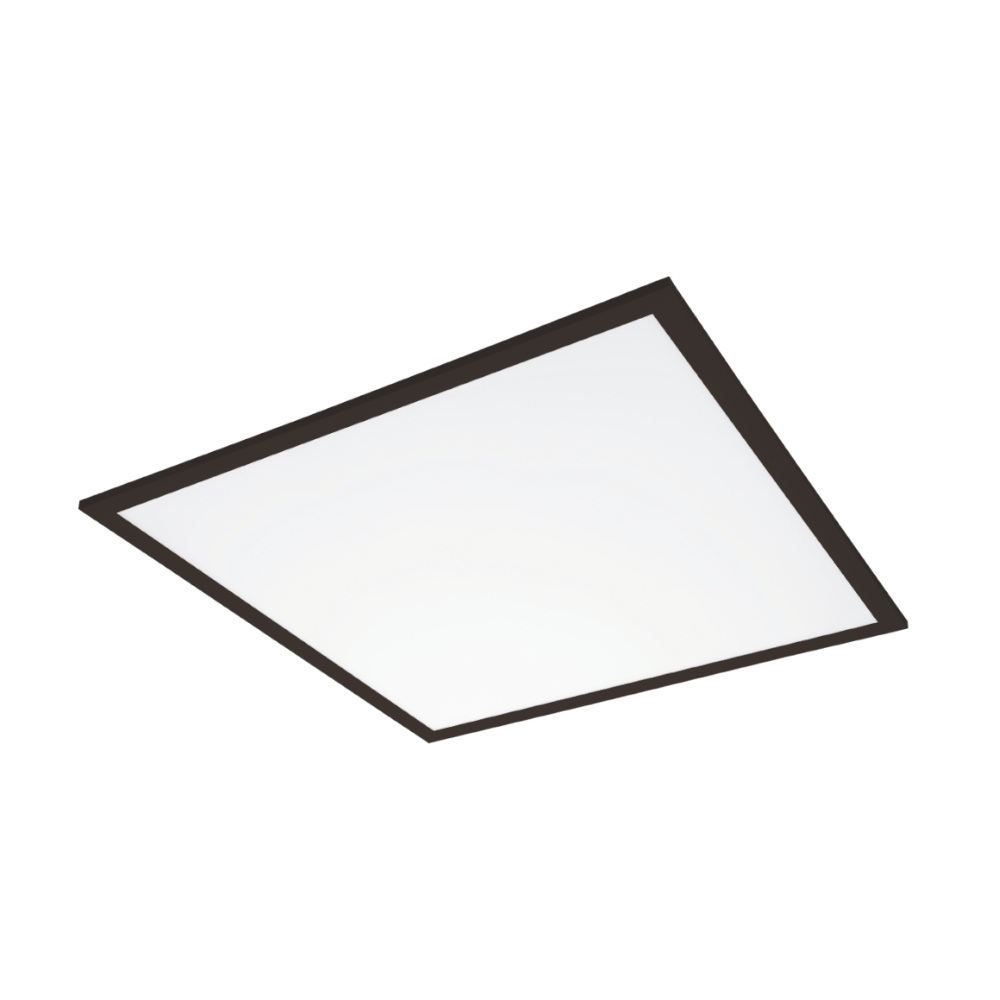

Square LED panel with black frame. Can be placed in T-profiles, mounted on the surface with an extension frame or suspended with a wire set. Driver is ordered separately (lumen is determined by driver) 700mA 25W 3670lm, 900mA 32W 4610lm and 1050mA 38W 5340lm.

Technical Information

• Color temperature: 4000 - 4000K
• Color rendering index (CRI/Ra): 80-89
• Protection class (IP) front: IP20
• Adapted for VDU work (EN 12464-1): No
• Number of poles: 2
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Maintained luminous flux at average lifetime 50,000 hours (25 °C ambient): 90%
• Bluetooth controlled: No
• CLO: No
• No dimmer function: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): Yes
• Dimming DALI: No
• Dimming DALI-2: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phasecut-on): No
• Dimming LineSwitch: No
• Dimming with touch: No
• Push button dimming: No
• Mains voltage modulation dimming: No
• Potentiometer dimming (integrated): No
• Programmable dimming: No
• RF dimming: No
• Sine wave dimming (Sine Wave Reduction): No
• Manufacturer specific dimming: No
• Zigbee dimming: No
• Dimmable: Yes
• DoC (CE): Yes
• Driver: LED driver (constant current)
• Driver included: No
• Energy efficiency class light source (EU 2019/2015): C
• Color of light adjustable: No
• Color fastness (McAdam ellipse): SDCM3
• Photobiological safety (EN 62471): RG0
• Glowing wire test (IEC 60695-2-11): None
• Integrated emergency power supply: No
• Adjustable light distribution: No
• Luminous flux adjustment: No
• Protection class (IP): IP44
• Protection class (IP) rear: IP20
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Casambi: No
• Compatible with Google Assistant: No
• Suitable for built-in/recessed installation: Yes
• Suitable for clamp installation: No
• Suitable for emergency lighting: No
• Suitable for pendant suspension: Yes
• Suitable for ramp installation: No
• Suitable for ceiling installation: Yes
• Suitable for surface-mounted installation: Yes
• Suitable for wall installation: No
• Suitable number of light sources: 1
• Conductor area: 1 mm²
• Light distribution: Symmetrical
• Light source: LED (not replaceable)
• Light distribution angle: Open beam
• Light outlet: Direct
• Rated current: 700-1050mA
• With switch: No
• With light source: Yes
• With light sensor: No
• With air hole: No
• With mounting details: Yes
• With presence detector: No
• With motion sensor: No
• With IFTTT support: No
• Emergency power supply system: None
• Emergency operation monitoring system: None
• Nominal service life L70/B50 at 25 °C: 0 h
• Nominal ambient temperature according to IEC 62722-2-1: 0 - 25 °C
• Insulation cover: No
• Roster design: None
• Protection class (IEC 61140): III
• Impact resistance (IK): IK10
• Voltage type: DC
• Type of wiring: Suitable for through-wiring
• Replaceable driver: Yes

Specifications

• Light color: White
• Color housing/enclosure/frame: Black
• Material housing/enclosure/frame: Aluminum
• Material dome/cover: Plastic (opal)
• Food contact material: No
• REACH: No
• ROHS: Yes
• Installation height/depth: 49 mm
• Height/depth: 11 mm
• Length: 597mm
• Width: 597mm
