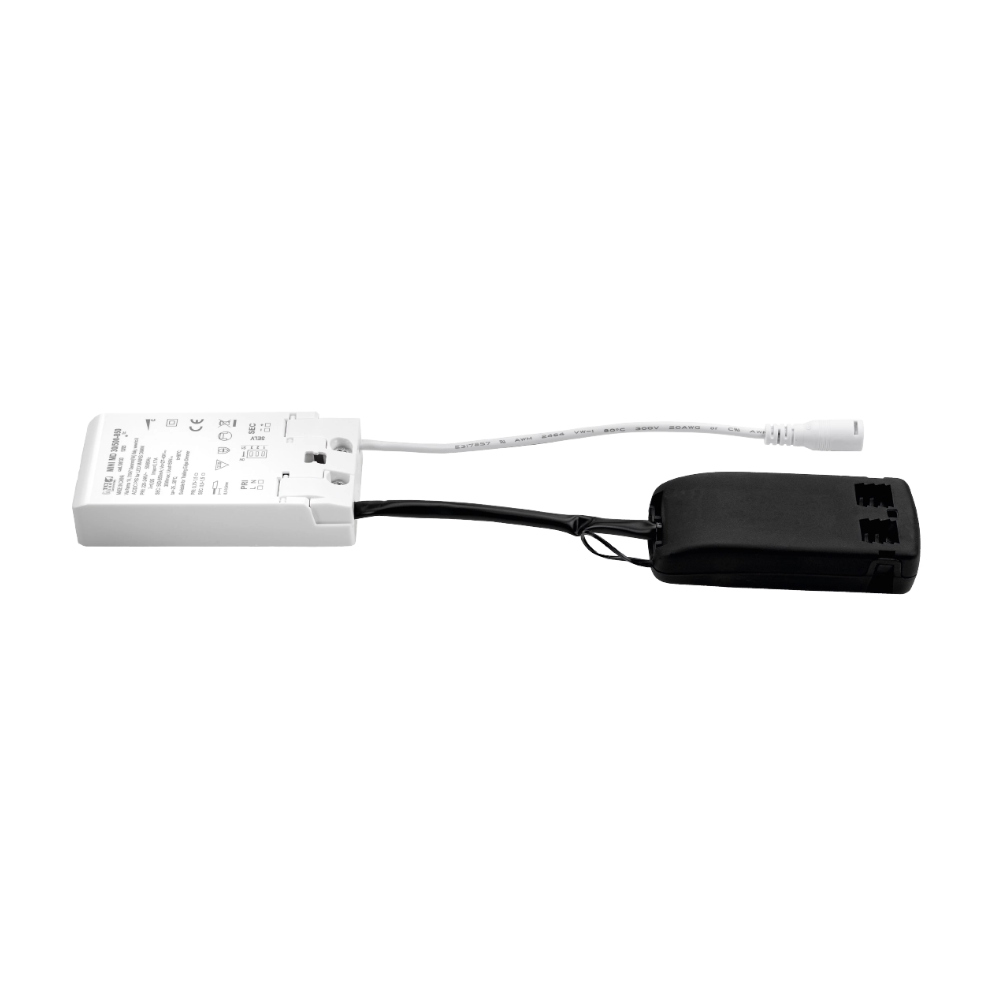

Driver Sense 700mA 25W 220-240V 3000lm IP20 White SG Armaturen

Description

Driver kit with quick connection and Linect connection for Sense LED-Platta. SG's new junction boxes have several connection options, both for cable and flexible conduit. With integrated Linect connection enables the use of quick connection systems from Wago, Ensto and Wieland. All connections can be made without tools. The models with Linect offer a solution with full flexibility, something that previously had to be customized and procured with long delivery times as a result.

Technical Information

• System power: 25W
• Voltage: 220-240V
• Driver: 700mA
• Output current from/to: 700 - 700mA
• Output power from/to: 25 - 25W
• Suitable for outdoor use: No
• Protection class (IP): IP20
• Type of light control: Leading edge dimming/Trailing edge dimming
• Bluetooth controlled: No
• Dimmer function missing: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): Yes
• Dimming DALI: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phasecut-on): No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming with push button: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Dimming programmable: No
• Dimming RF: No
• Dimming sine wave (Sine Wave Reduction): No
• Manufacturer-specific dimming: No
• Zigbee dimming: No
• Dimmable: Yes
• DoC (CE): Yes
• Indoor/Outdoor: Indoor placement
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Casambi: No
• Compatible with Google Assistant: No
• Suitable for constant voltage: No
• Suitable for constant current: Yes
• Suitable for direct current DC (primary side): No
• Supports IFTTT: No
• Model/Version: Static
• Protection class (IEC 61140): II

Specifications

• Housing/Enclosure/Body: Plastic housing
• Material: PC (polycarbonate)
• Food Contact Material: No
• REACH: No
• ROHS: Yes
• Length: 108mm
• Height: 30mm
• Width: 53mm
