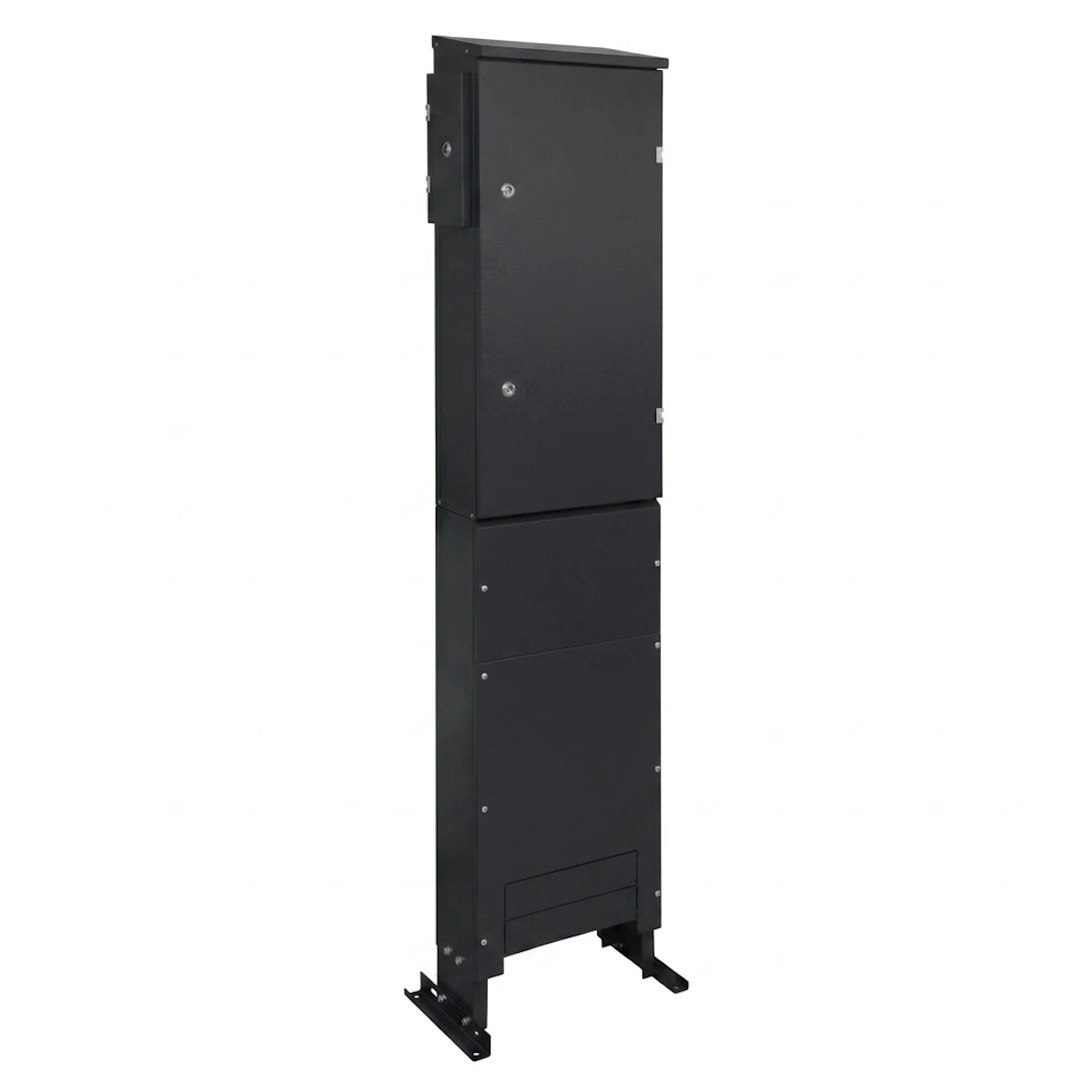

Ground-Mounted Meter Cabinet With Temporary Power 63A 230/400V IP43 Graphite Gray Malmbergs 2291811

Description

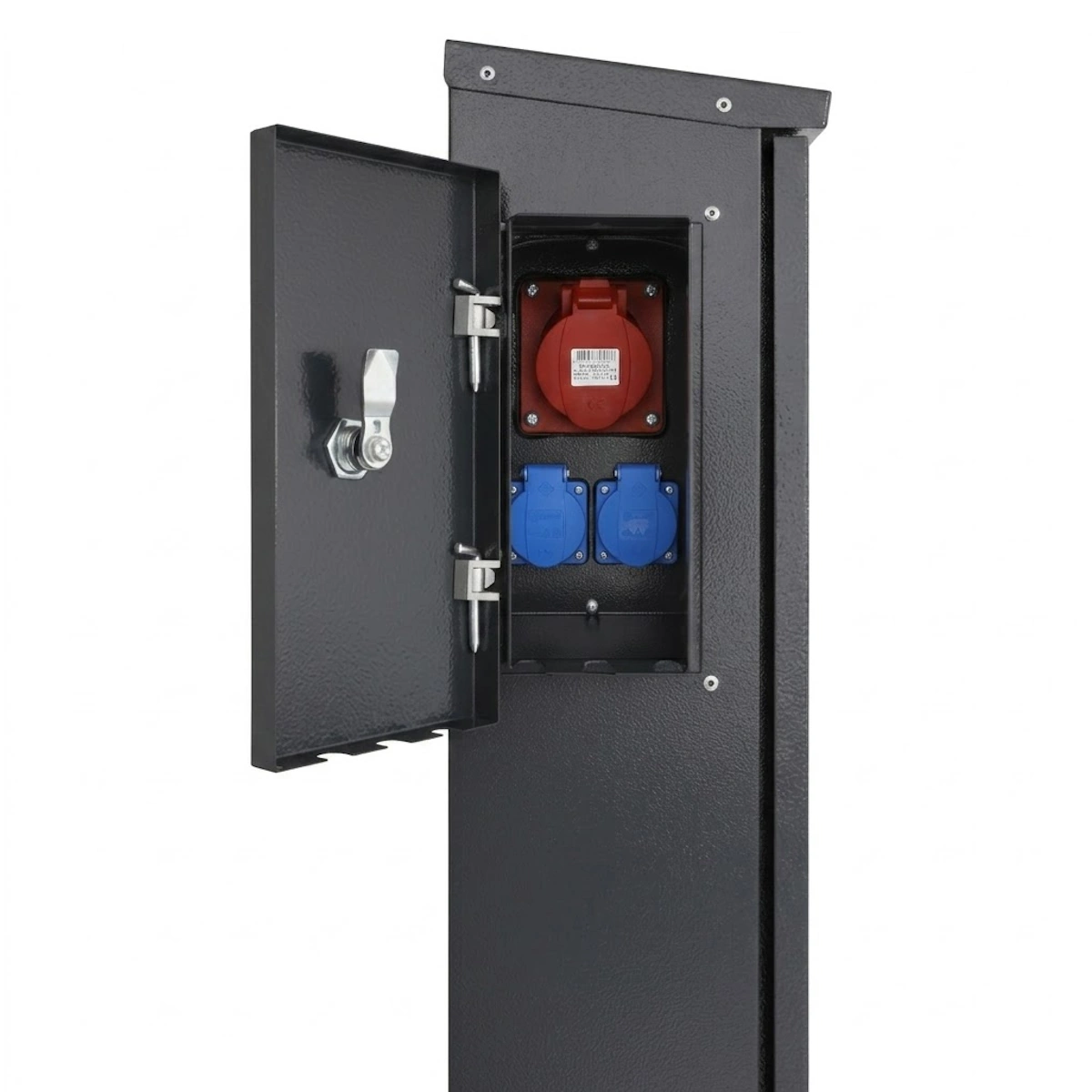

This complete 63A ground-mounted meter cabinet in a stylish graphite gray finish (RAL 7024) is the perfect all-in-one solution for both temporary construction power and future permanent installation. The meter cabinet comes equipped with one 3-phase outlet and two Schuko outlets for convenient power supply on the job site. For maximum safety, the outlets are protected by an integrated RCBO (30mA, 4-pole, C-type 16A). The door is locked with a triangular key and features smart cable exits at the bottom, allowing cables to be safely connected even when the cabinet is closed.

Flexible and Future-Proof for Garages and Outbuildings

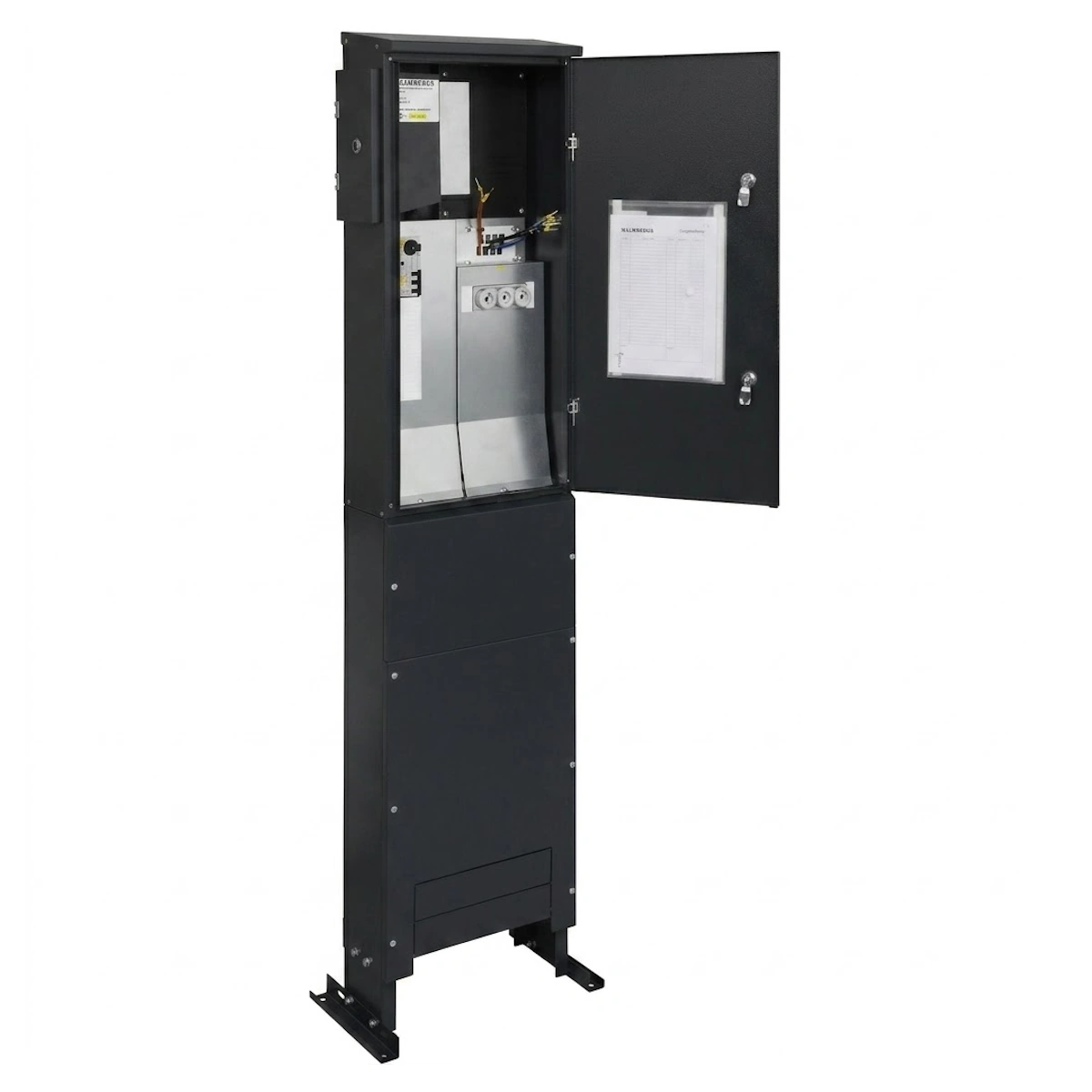

This construction power cabinet is built for the future. It features 9 empty modules intended for custom distribution—perfect if you later want to route power to a garage, storage shed, or an EV charging box. The meter space complies with the Swedish standard SS 430 01 10, featuring a 340x195 mm meter compartment mounted on a sturdy wooden board.

Robust Construction for Harsh Nordic Conditions

This cabinet is built to last. It is manufactured from powder-coated, galvanized sheet steel with stainless steel external screws, providing exceptional corrosion protection and a long lifespan in any weather (IP43 protection rating). Installation is also highly flexible thanks to the height-adjustable base, which can be adjusted vertically by up to 25 cm. Incoming and outgoing cables are easily and securely anchored to a stable anchor rail in the lower part of the cabinet (two cable clamps are included).

Key Features & Benefits

• All-in-One for Construction: Complete with 1 x 3-phase outlet and 2 x 230V Schuko outlets.
• High Safety: Built-in residual current breaker with overcurrent protection (RCBO) protects outlets against earth faults and overloads.
• Future-Proof: Includes 9 free modules for expansion to a garage, EV charger, or outbuilding.
• Easy Installation: Height-adjustable base (up to 25 cm) and included cable clamps (16–22 mm and 18–28 mm).
• Swedish Standard: Meter space complies with SS 430 01 10 with meter mounting on a classic wooden board.
• Durable: Powder-coated galvanized sheet metal in a modern graphite gray color (RAL 7024).

Technical Specifications

• Rated Current / Main Switch: 63A / 125A
• Rated Voltage: 230/400V
• IP Rating: IP43
• Color: Graphite Gray (RAL 7024)
• Number of Free Modules: 9 pcs (for custom distribution)
• Breaking Capacity: 50 kA
• Earthing System: Incoming: TN-C (TN-S) / Outgoing: TN-S
• Terminal Capacity: 1.5 - 50 mm² (incoming and outgoing)
• Dimensions (WxHxD): 415 x 1810 (max 2060) x 180 mm (Roof width: 197 mm)
• Height Above Ground: 870 mm
• Cable Entries: 1 pc 26-35 mm, 1 pc 20-26 mm, 1 pc 10-14 mm, and 1 pc multi-flange (17 openings ranging from 5-30 mm)
