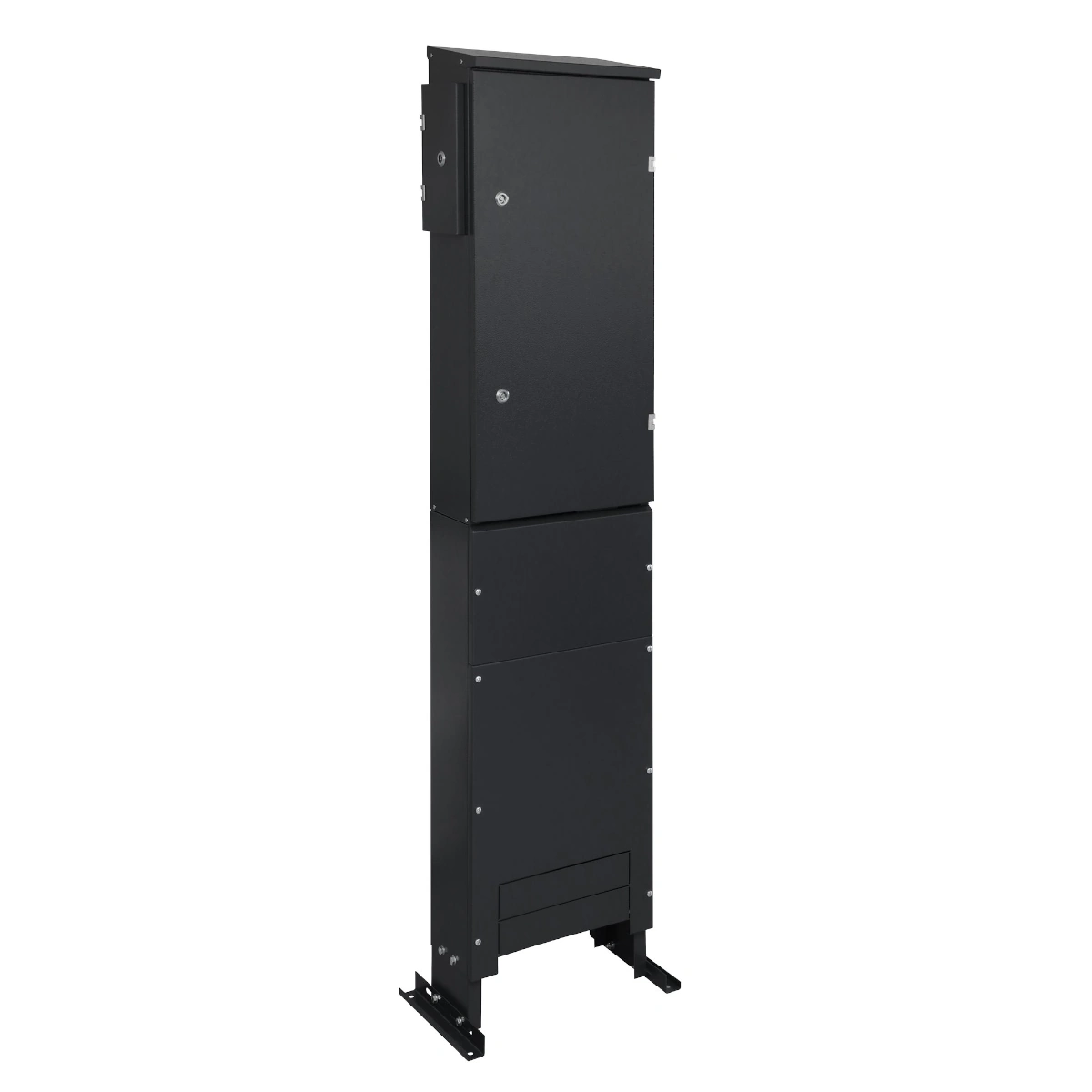

Ground Mounted Meter Cabinet With Temporary Power 25A 230/400V IP43 Graphite Grey Malmbergs 2291810

Description

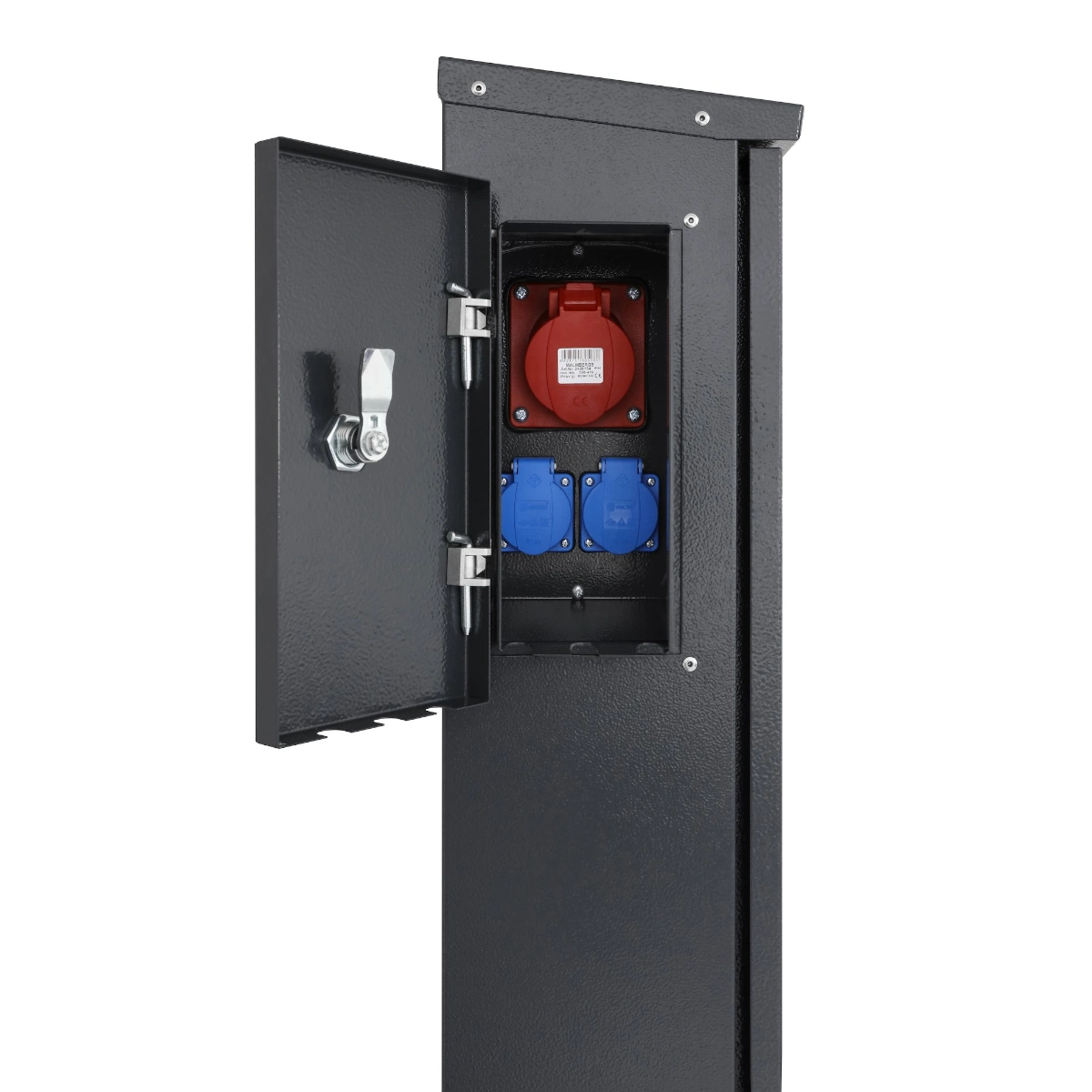

This complete ground-mounted meter cabinet is optimally adapted for harsh environments and meets all requirements for safe power distribution. The cabinet is equipped with one 3-phase outlet and two Schuko outlets (230V), which are effectively protected by a 4-pole RCBO (30mA, C-type, 16A).

Adapted for Future Needs and Smooth Installation

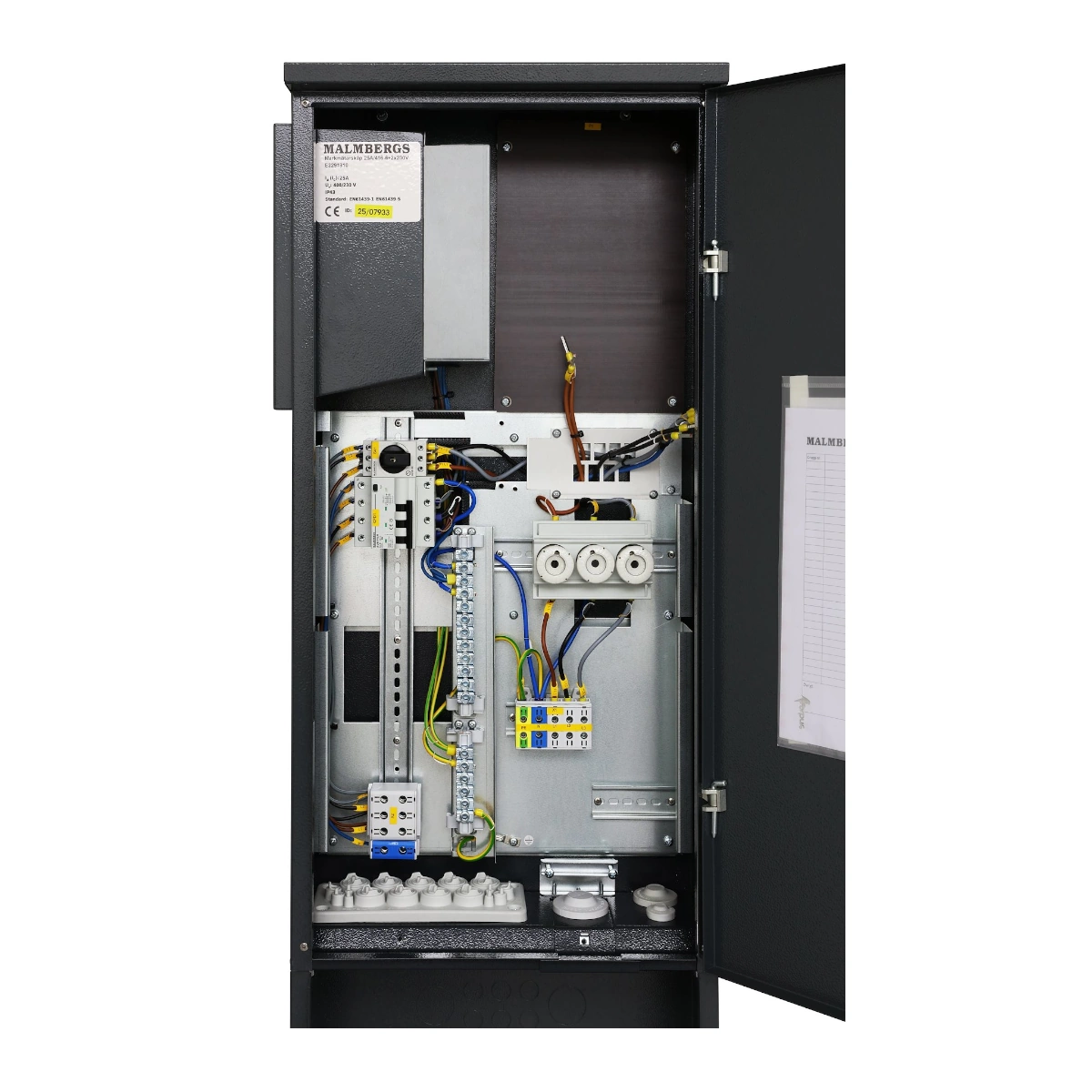

The meter cabinet is designed according to the SS 430 01 10 standard and features a meter space with a robust wooden board (meter space 340x195 mm). For those wishing to expand the electrical system, there is a generous internal distribution area with 10 empty modules (9 units at 63A) – perfect for future wiring to, for example, an EV charger, shed, or outbuilding. The outlet section is lockable with a triangular key and features smart cable outlets that can be used while the door is closed.

Engineered for the Nordic Climate

The cabinet is made of powder-coated, galvanized sheet steel, which guarantees an extremely long lifespan and high corrosion resistance. All external screws are made of stainless steel. The included foundation has a height-adjustable lower section that can be adjusted up to 25 cm vertically, making on-site installation both simple and flexible. Incoming and outgoing cables are securely anchored against the cabinet's integrated anchor rail at the bottom.

Technical Specifications

• Number of modules: 10
• Breaking capacity: 50kA
• Color: Graphite Grey RAL7024
• Main switch: 40A
• Height: 870 mm above ground
• Earthing system: Incoming: TN-C (TN-S) / Outgoing: TN-S
• Cable entry: 1 pc 26-35mm, 1 pc 20-26mm, 1 pc 10-14mm, 1 pc multi-flange, 17 pcs from 5-30mm
• Enclosure class: IP43
• Dimensions (WxHxD): 415x1810 (max 2060)x180mm (197 roof)
• Rated voltage: 230/400V
• Rated current: 25A
• Terminal capacity: 2.5-35mm² incoming / 1.5-50mm² outgoing
• Type: Complete ground-mounted meter cabinet for temporary/permanent electricity
• Outlets: 1 pc 3-phase outlet (16A) + 2 pcs Schuko outlets (230V)
• Protection: RCBO 30mA, 4-pole, C-type, 16A
• Meter space: According to standard SS 430 01 10 (mounting on wooden board)
• Module spaces (own distribution): 10 empty modules (9 units at 63A)
• Material: Powder-coated galvanized sheet steel
• Hardware: External screws in stainless steel
• Door: Right-hinged front door
• Locking: Equipped with a triangular key
• Cable entry/exit: Outlets for cables at the bottom, integrated anchor rail
• Included accessories: 2 pcs cable clamps (16–22 mm and 18–28 mm)
• Foundation: Adjustable in height (up to 25 cm)
