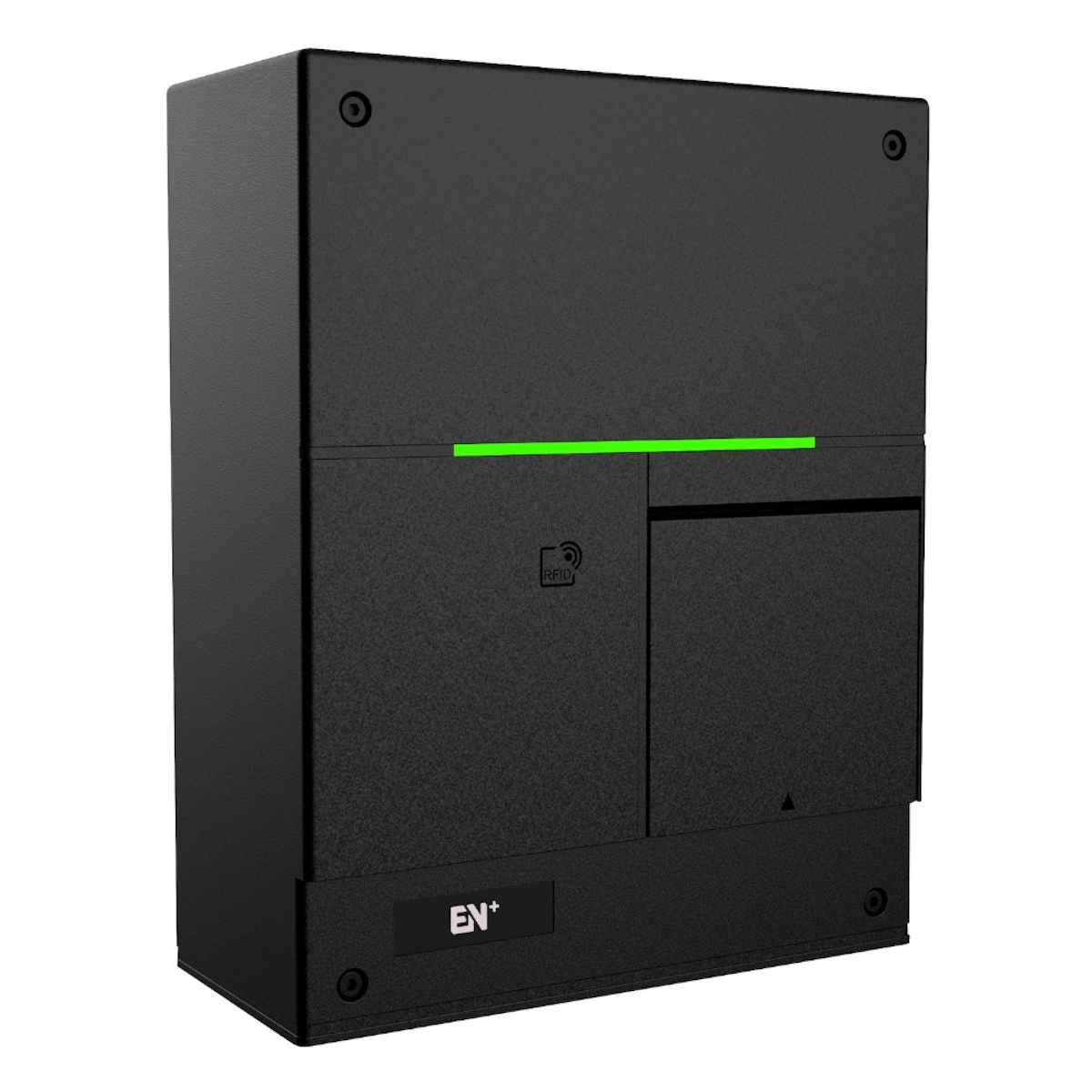

Charging Box Evon Start 22kW 32A 400V 3P+N+Earth IP54 Outlet Type-2 EN+ 2701238

Description

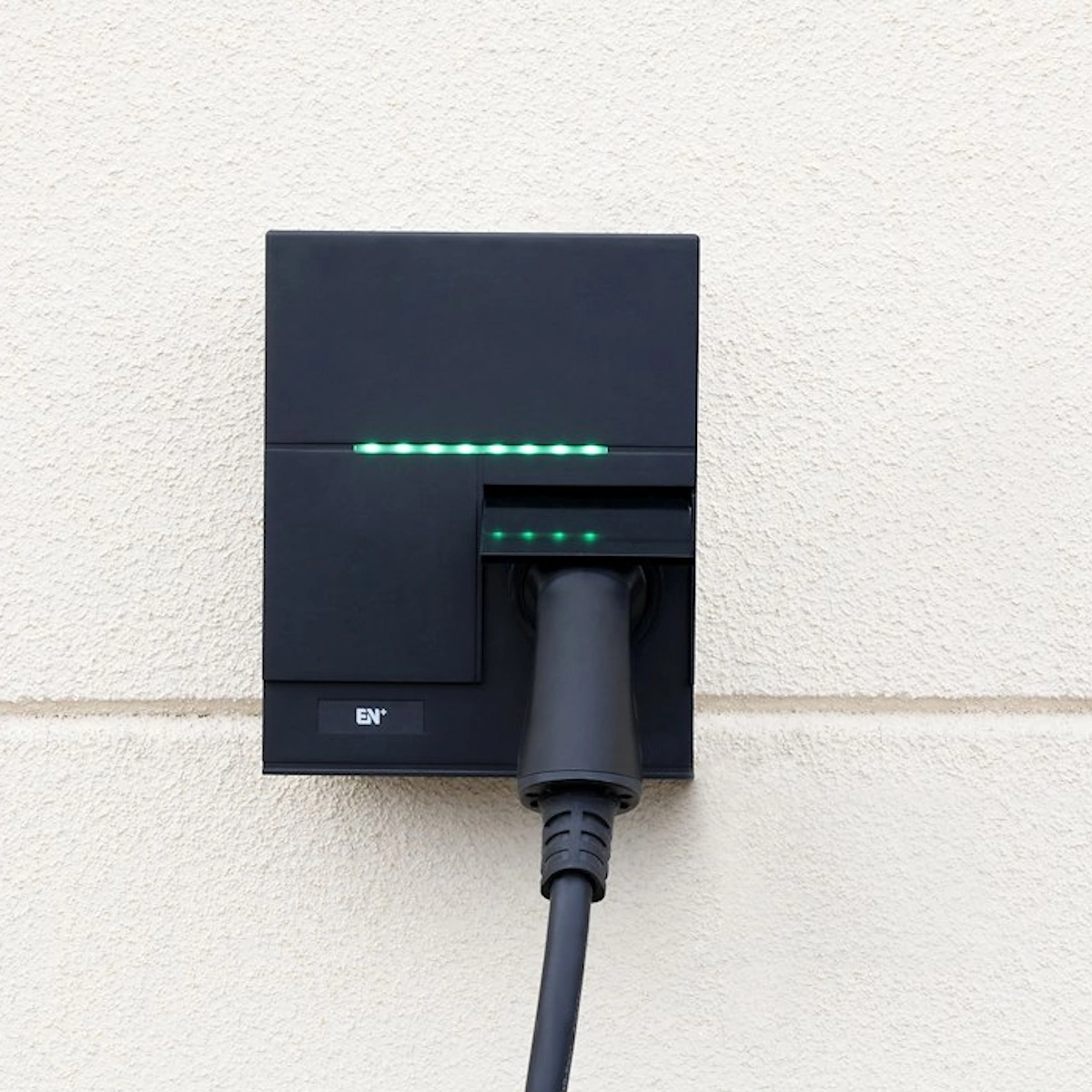

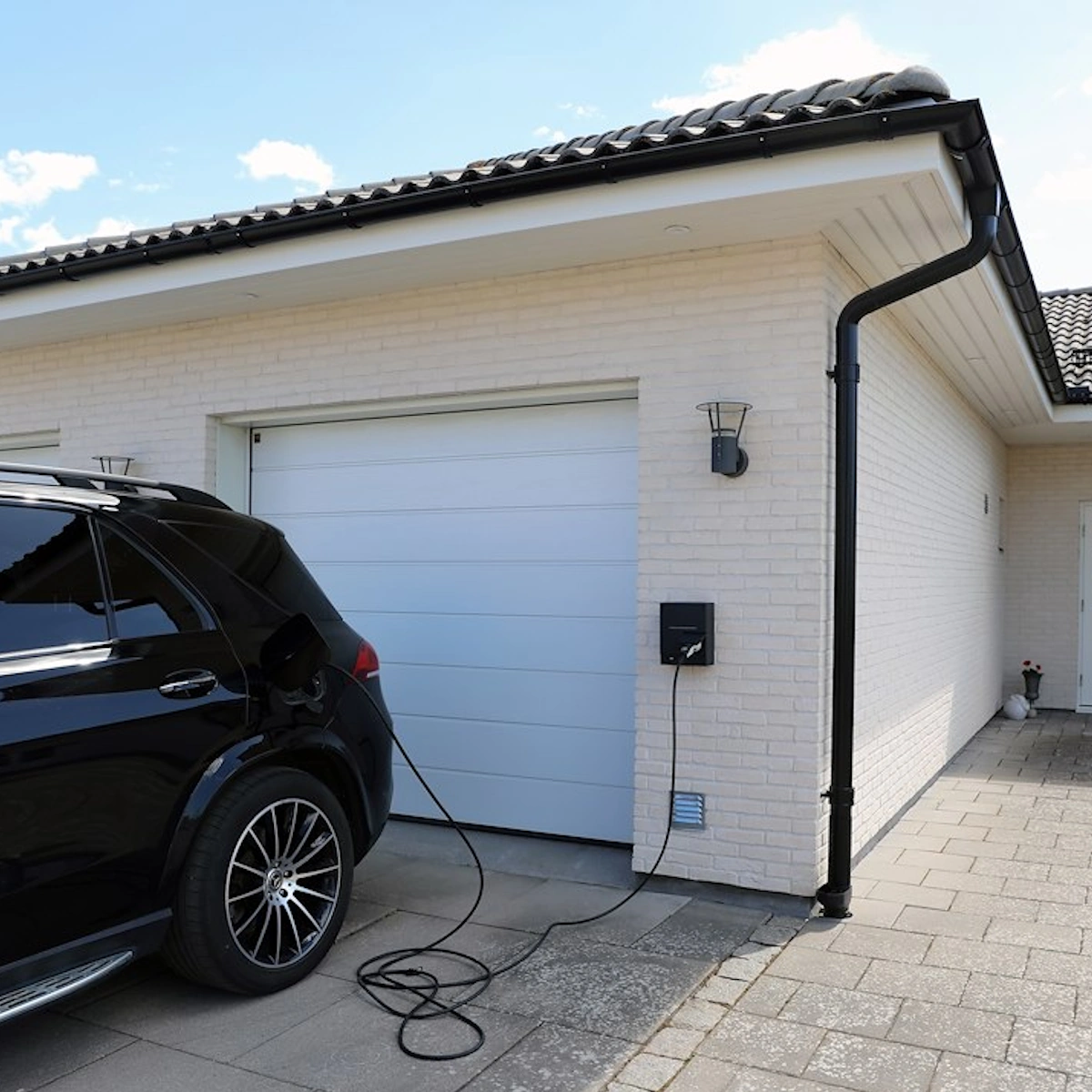

Evon Start is the ideal charging box for those looking for a powerful but discreet solution. With a maximum charging capacity of 22kW (32A), it is prepared for the needs of the future, regardless of whether you are charging an electric car or a charging hybrid. The compact design means that it blends naturally into all types of house walls or parking posts.

The charger is delivered in a stylish black design, but for those who want to match the facade, fronts in other colors are available as options. This model is equipped with a universal Type 2 socket, which provides maximum flexibility as you can use any charging cable.

Smart control and high security

With Evon Start you have full control. Through the EVCHARGO app you can easily start, stop and schedule your charging directly on your mobile phone. For quick and easy authentication at the charging box, an RFID card is also included.

Safety is the top priority. The box has a built-in Type A earth leakage circuit breaker with DC leakage protection (6mA), which meets the requirements for Type B protection. This simplifies installation and increases security for both the car and the home.

Advantages of Evon Start 22kW

• Future-proof: High power of 22kW covers the needs of all modern electric cars.
• User-friendly: Choose between simple app control or quick start with RFID.
• Load balancing: Can be supplemented with dynamic load balancing to protect the property's main fuse.
• Swedish conditions: Robust construction adapted to our Nordic climate.

Specifications

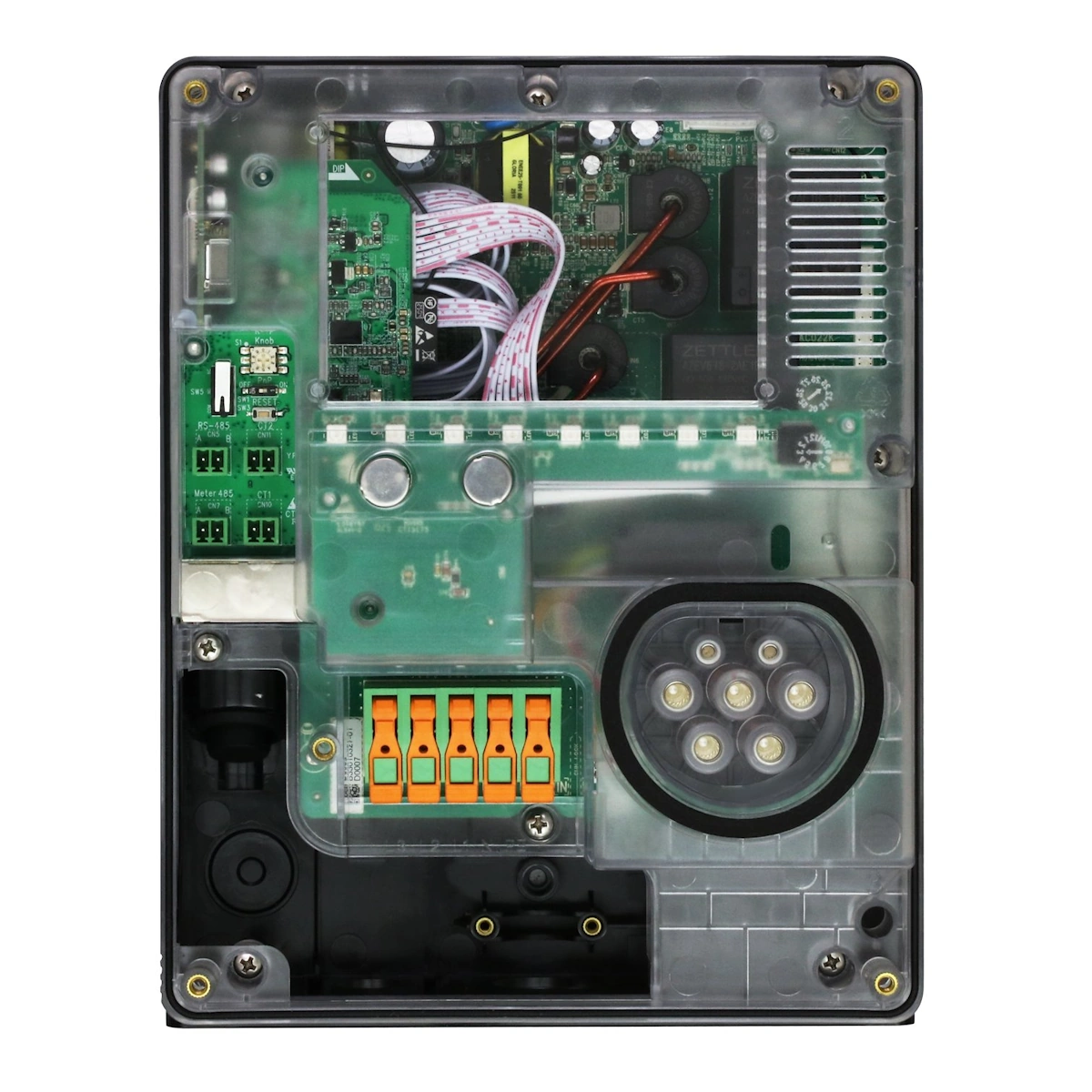

• Connection: Terminal
• Number of phases: 3-phase alt. 1-phase
• Working humidity range: 5-95%
• Certificate: CE (Tested by TÜV Rheinland)
• DC leakage protection: 6mA
• Energy measurement: Yes (via app)
• Frequency: 50/60Hz
• Functions: Overcurrent protection, Earth fault protection, Over/undervoltage protection, Over/underfrequency protection, Overheating protection

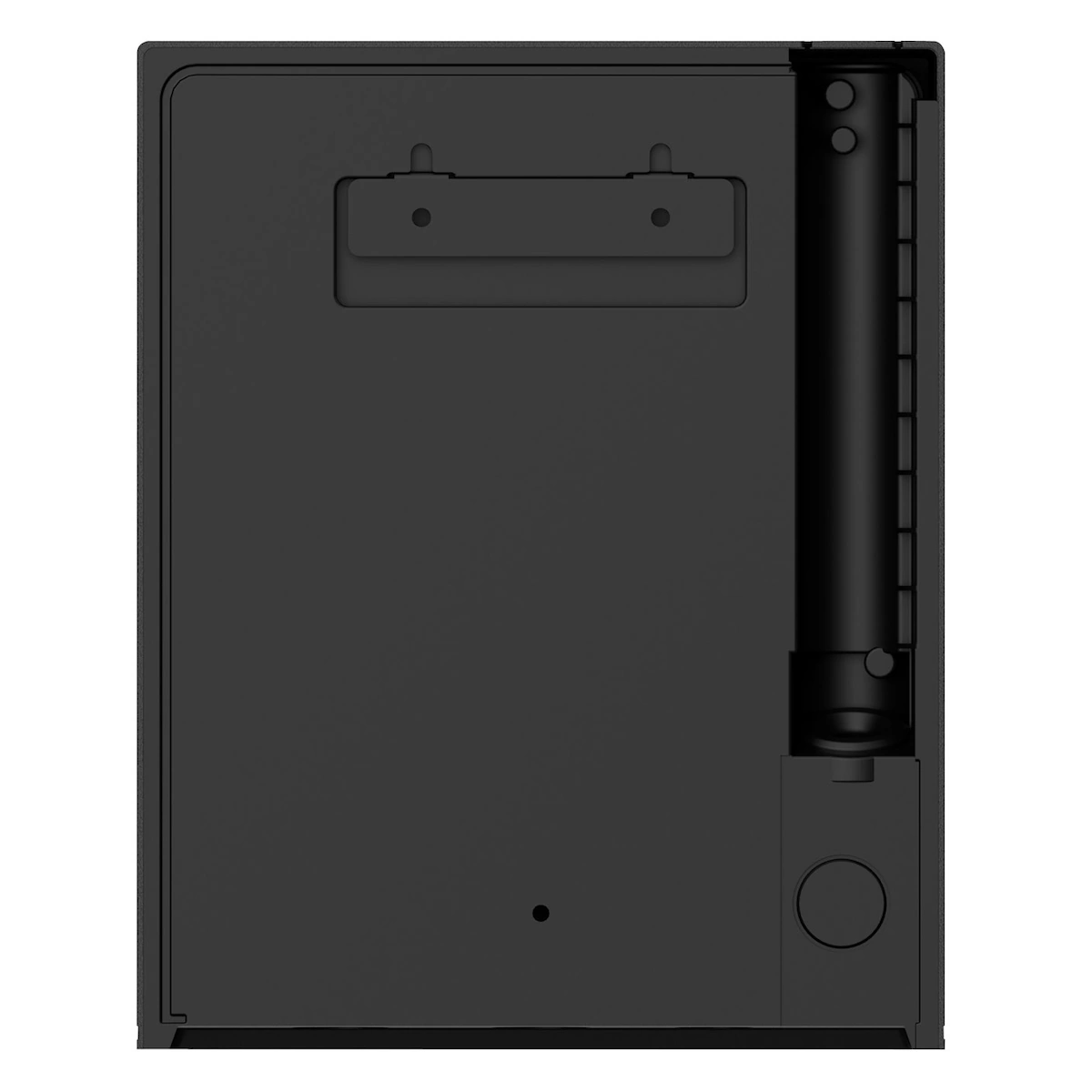

• Installation: Wall mounting or on pole
• Grounding system: TN, IT, TT
• Protection class: IP54
• Communication: WiFi / Ethernet / Bluetooth / 4G
• Connector: Type 2
• LED indicator light: Green/Yellow/Red
• Material: PC (polycarbonate)
• Max. power: 22kW
• Max. rated current: 32A
• Rated voltage: 400V AC
• Terminal capacity: Max. 10 mm²
• Protocol: OCPP 1.6 Json/OCPP 2.0.1 Json (Upgradeable)
• RFID: ISO/IEC 14443A
• Impact resistance: IK10
• Standards: EN IEC 61851-1:2019, EN IEC 61851-21-2:2021, IEC 62955:2018, IEC 62196
• Start mode: RFID tag (4 pcs) / APP / Direct charging
• Power supply: 3P+N+Earth
• Support for load balancing: Yes
• Temperature range: -30°C - +50°C
• Version: Socket
• Output voltage: 400V AC
• Color: Black
• Dimensions (WxHxD): 210x262x95 mm
• Warranty: 5 years
