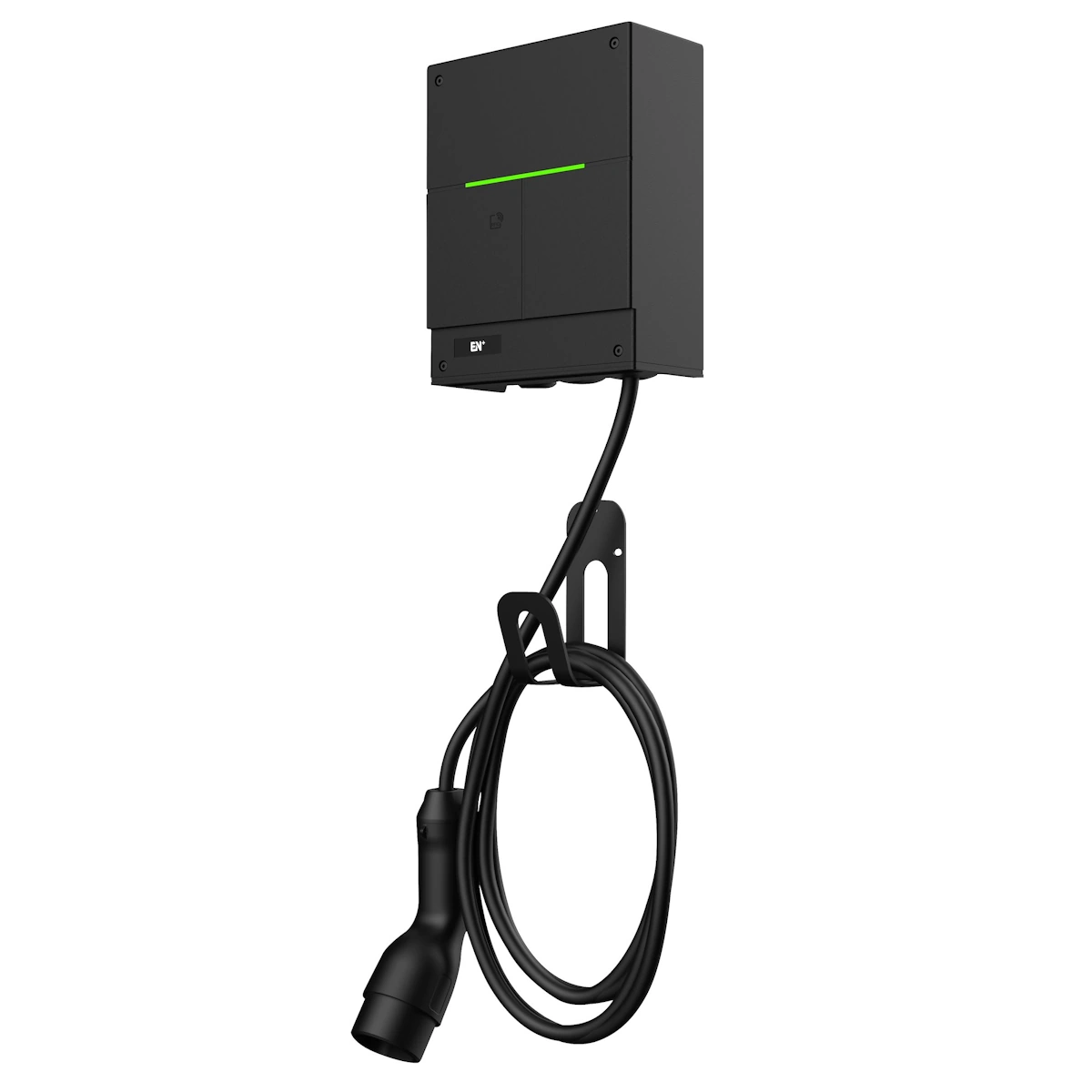

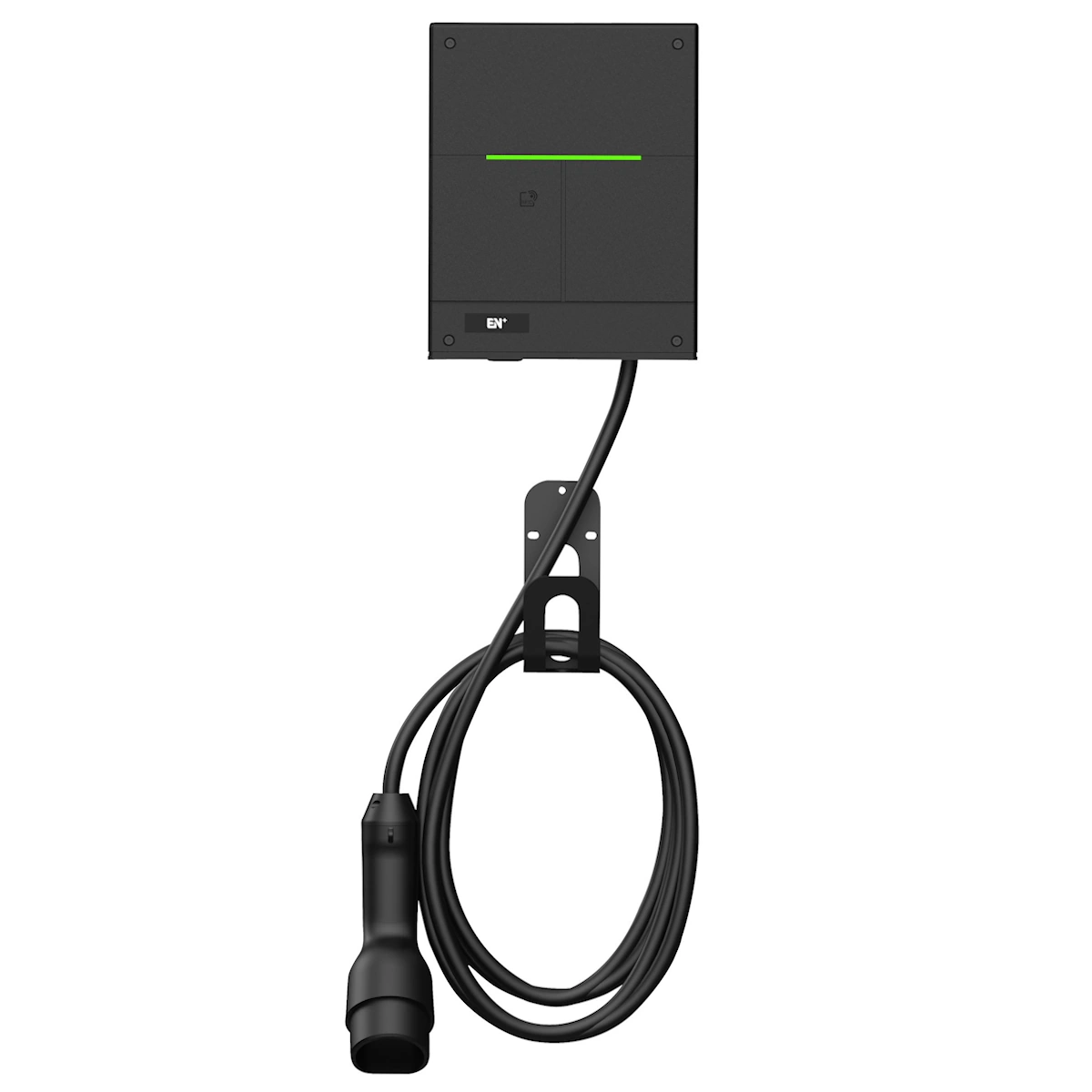

Charging Box Evon Start 32A 22kW 400V 3Poles+N+J Cable 5m Type-2 IP54 Black EN+ 2701239

Description

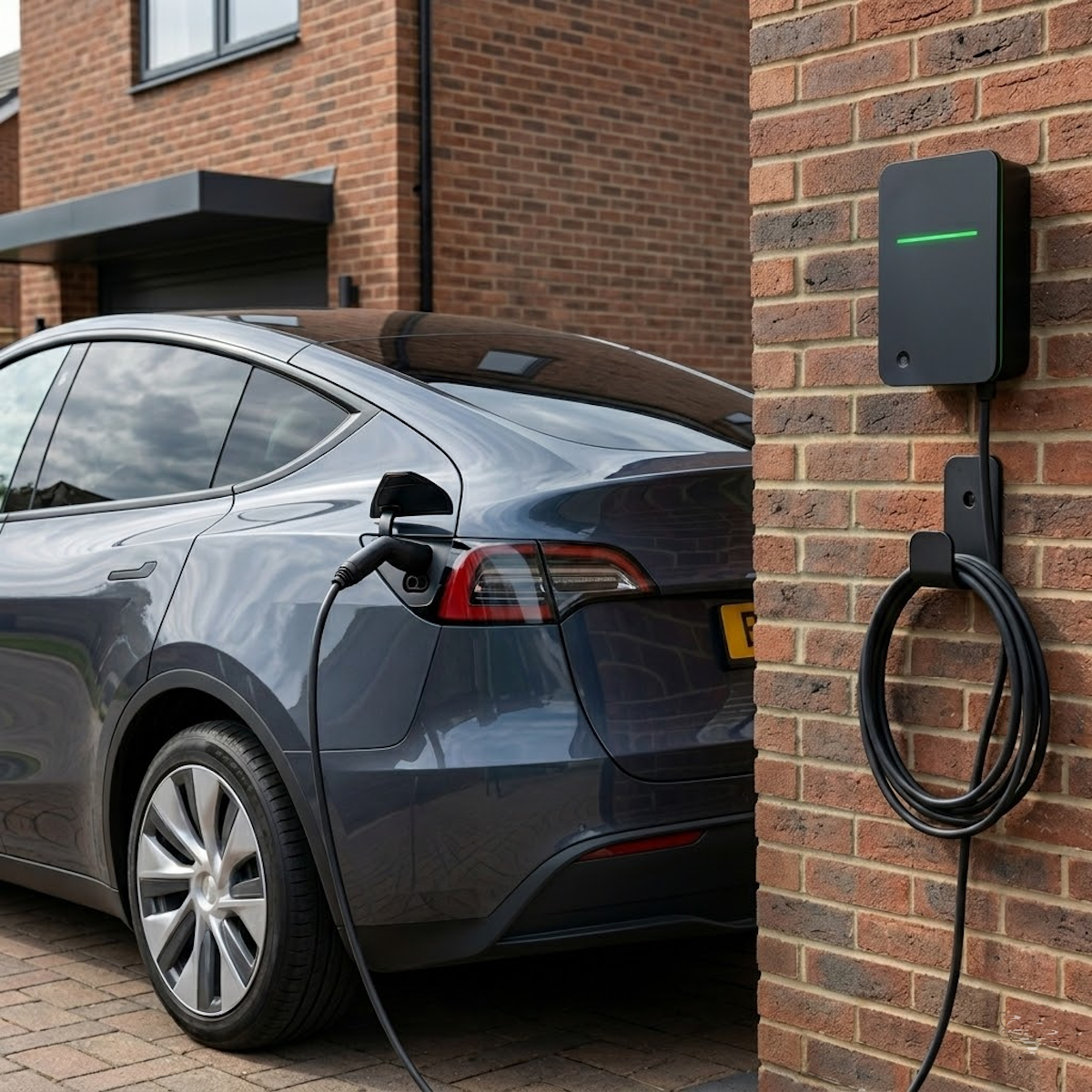

Evon Start is the perfect combination of power, style and functionality. Charging box a modern and minimalist design that is designed to blend discreetly into all types of properties. With an impressive charging capacity of 22kW and a fixed 5 meter long Type 2 cable, it offers a fast and smooth charging experience for electric cars.

Smart control and safety

The charger is not only stylish but also intelligent. Through the EVCHARGO app you get full control over your charging directly on your mobile phone. For extra flexibility in daily use, an RFID card for quick authentication is also included.

Safety is the top priority: Evon Start is equipped with a built-in Type A residual current device with 6mA DC leakage protection, which meets the requirements of a Type B residual current device. This simplifies installation and increases the security of your home.

Customizable and future-proof

• Design: Comes with a stylish black front, but can easily be customized with fronts in other colors to match your facade.
• Mounting: Can be mounted directly on a wall or on a pole (charging box holder available as an option).
• Load balancing: To protect the property's main fuse, dynamic load balancing is available as a separate accessory.

Advantages of Evon Start

• Compact format: Takes up minimal space on the wall.
• User-friendly: Easy handling with both app and RFID.
• Safe charging: Built-in protection against DC fault currents.
• Flexible: Possibility of load balancing for optimal energy distribution.

Specifications

• Connection: Terminal
• Number of phases: 3-phase alt. 1-phase
• Humidity range: 5-95%
• Certificate: CE (Tested by TÜV Rheinland)
• DC leakage protection: 6mA
• Energy measurement: Yes (via app)
• Frequency: 50/60Hz
• Functions: Overcurrent protection, Earth fault protection, Over/undervoltage protection, Over/underfrequency protection, Overheating protection
• Colour: Black
• Installation: Wall or pole mounting
• Earthing system: TN, IT, TT
• Protection class: IP54
• Communication: WiFi / Ethernet / Bluetooth / 4G
• Connector: Type 2
• LED indicator light: Green/Yellow/Red
• Material: PC (polycarbonate)
• Max. power: 22kW
• Max. rated current: 32A
• Dimensions (WxHxD): 210x262x95 mm
• Rated voltage: 400V AC
• Personal protection switch: No
• Terminal capacity: Max. 10 mm²
• Protocol: OCPP 1.6 Json/OCPP 2.0.1 Json (Upgradeable)
• RFID: ISO/IEC 14443A
• Impact resistance: IK10
• Standards: EN IEC 61851-1:2019, EN IEC 61851-21-2:2021, IEC 62955:2018, IEC 62196
• Start mode: RFID tag (4 pcs) / APP / Direct charging
• Power supply: 3 Poles+N+J
• Load balancing support: Yes
• Temperature range: -30°C - +50°C
• Version: Cable 5 m
• Output voltage: 400V A
• Warranty: 5 years
