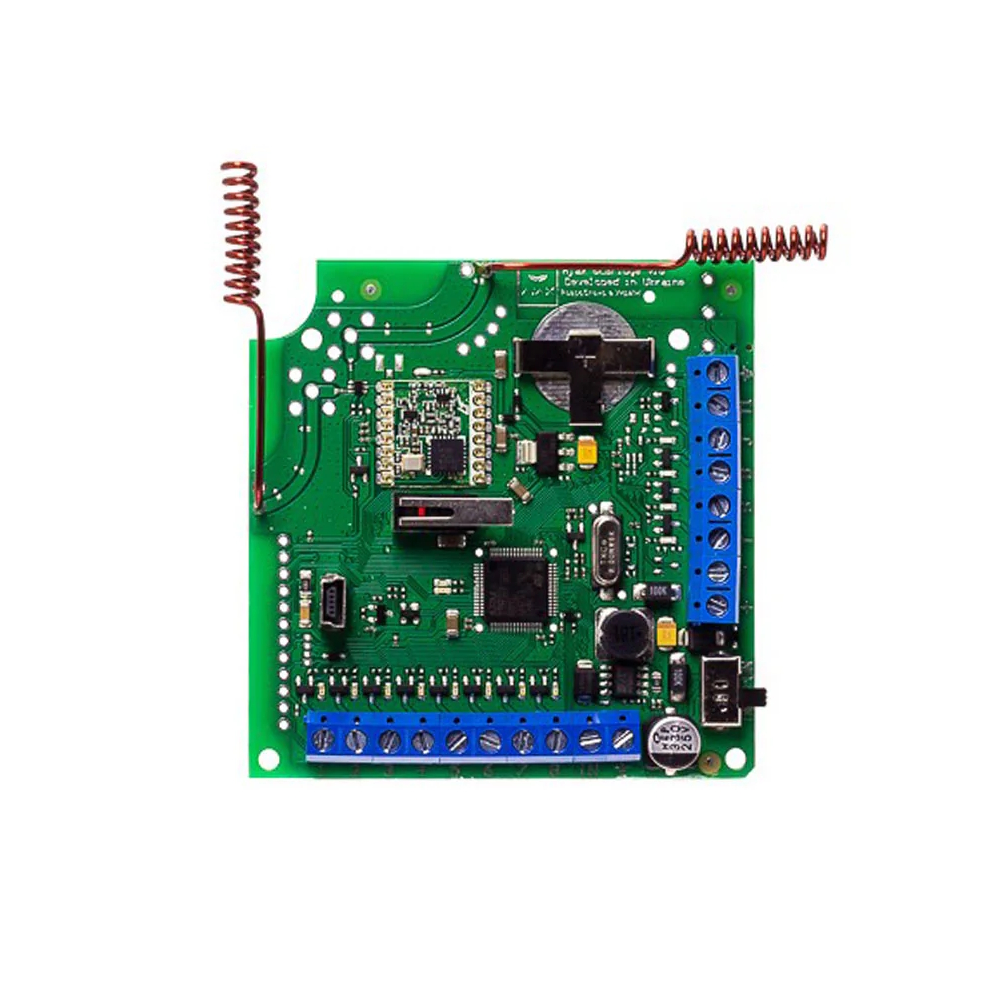

Ajax Integration Module Hybrid ocBridge

Description

Receiver module that allows you to use Ajax wireless detectors and devices together with a third-party wired or hybrid security system. The module acts as a bridge between Ajax wireless sensors and an external wired control panel through dry contacts (NC/NO) that send alarms, status and events to the external system. This makes it possible to integrate Ajax wireless technical protection with older, existing or professional alarm systems, thus obtaining a more flexible and complete security setup.

Specifications

• Type: Wireless integration module for hybrid and wired systems
• Application: Indoor
• Compatibility: Integrates with wired or hybrid security panels via NC/NO outputs
• Number of security zones: 8 main zones + 4 service zones
• Maximum number of connected Ajax devices: up to 99 wireless sensors and devices
• Radio system: Jeweller protocol - encrypted wireless communication
• Range: up to approx. 2,000 m in open area between the sensors and ocBridge Plus
• Radio frequency band: depending on region (e.g. 866–868.6 MHz)
• Alarm response: Fast signal transmission to the wired system via NC/NO contacts
• Tamper protection: protection against manipulation and removal
• Jamming detection (interference recognition) of radio signals
• Power supply: 8–14 V DC from the external security system
• USB input: 5 V DC (for configuration only)
• Operating temperature: approx. -20 °C to +50 °C
• Operating humidity: up to 90%
• Dimensions: approx. 95 × 92 × 18 mm (with antennas)
• Two-way communication with Ajax sensors – both alarms and status can be sent back to the module
• PC configuration via mini-USB for testing and settings
• Supports service events, errors, battery status and jamming alarms
