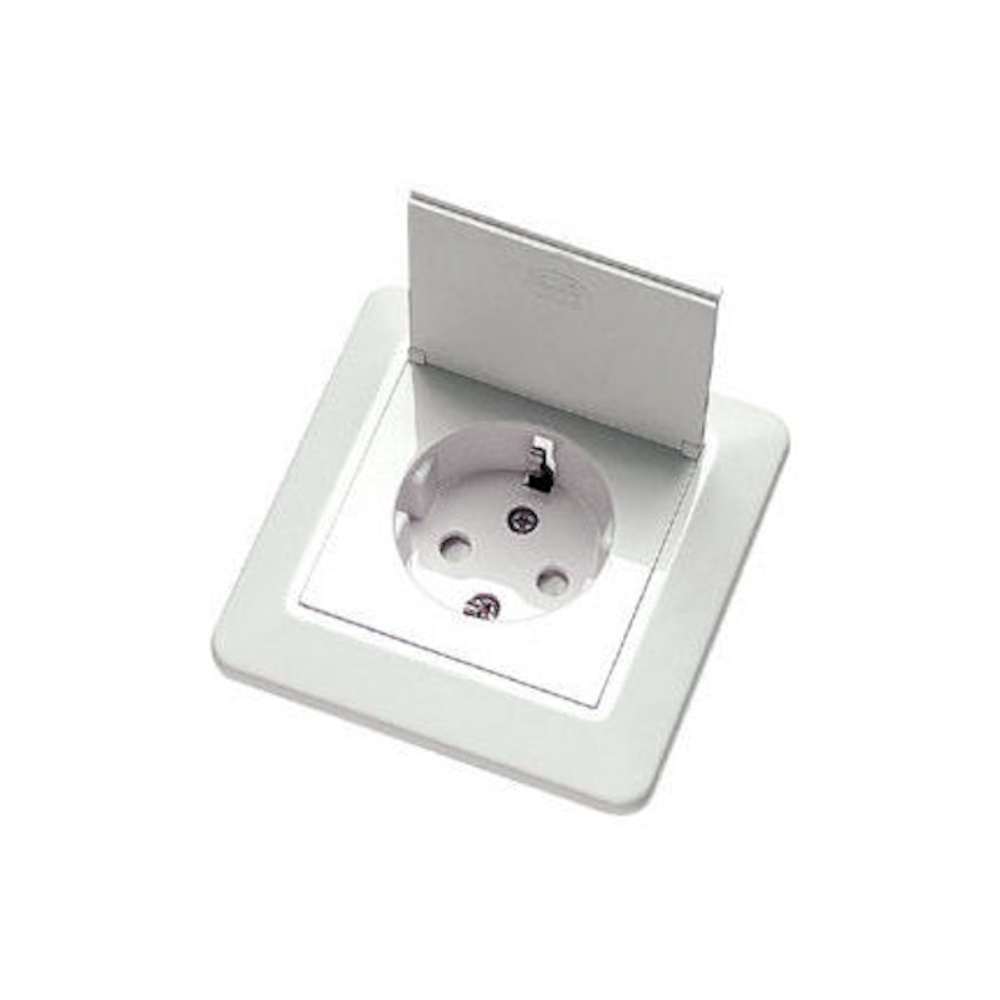

Wall Socket Rs 1-Way Earth With Cover Recessed 16A 250V IP20 Mountain White Elko

Socket, cover plate, cover and frame made of halogen-free thermoplastic. Triple connections per phase, fixing screw distance, 60mm.

Wall Socket Rs 1-Way Earth With Cover Recessed 16A 250V IP20 Mountain White Elko
Save 20 %
KAMPANJ!

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

Wall Socket Rs 1-Way Earth With Cover Recessed 16A 250V IP20 Mountain White Elko

Socket, cover plate, cover and frame made of halogen-free thermoplastic. Triple connections per phase, fixing screw distance, 60mm.

Description

Socket, cover plate, cover and frame made of halogen-free thermoplastic. Triple connections per phase. Socket with cover must be mounted so that the cover opens at the bottom edge. Fixing screw distance, 60mm. Mounting depth 31mm.

Technical Information

  • Device mounting: Flush
  • Model/Version: Socket grounded CEE 7/3 (Type F)
  • Parallel switching neutral conductor: No
  • Protective earthing: Earth plate
  • Number of active pins (round): 2
  • Number of active pins (flat): 0
  • Number of active pins (square): 0
  • Composition: Base element with complete housing
  • With signal lamp: No
  • Number of sockets: 1
  • Sockets phase separated: No
  • Number of modules (modular system): 1
  • Number of switch-sectioned sockets: 0
  • Number of phases: 1
  • Embossing/Indication: None
  • Type of connection: Screw terminal
  • With hinged cover: No
  • Touch-protected: Yes
  • Text field/Place for marking: No
  • Lockable: No
  • Extension mechanism: No
  • Insulated mounting: Yes
  • With function lighting: No
  • With orientation lighting: No
  • Surge protection: No
  • Fault current protection: No
  • With micro fuse: No
  • Special power supply: None
  • Mounting method: Flush mounting
  • Type of fastening: Screw mounting
  • Halogen-free: Yes
  • Anti-bacterial: No
  • With through-wiring function: No
  • With On/Off button: No
  • Rotated central insert: No
  • Rated current: 16A
  • Rated voltage: 250V
  • Frequency range: 50-60 Hz
  • Rated residual current: 0 mA
  • Suitable for protection class (IP): IP20
  • Complies with UK Building Regulations Part M: No

Specifications

  • Colour: White
  • RAL number (similar): 9010
  • Metallic colour: No
  • Transparent: No
  • Material: Plastic
  • Material quality: Thermoplastic
  • Surface protection: Untreated
  • Surface type: Glossy
  • Unit width: 84 mm
  • Unit height: 84 mm
  • Unit depth: 42 mm
  • Minimum depth of flush installation box: 32 mm
