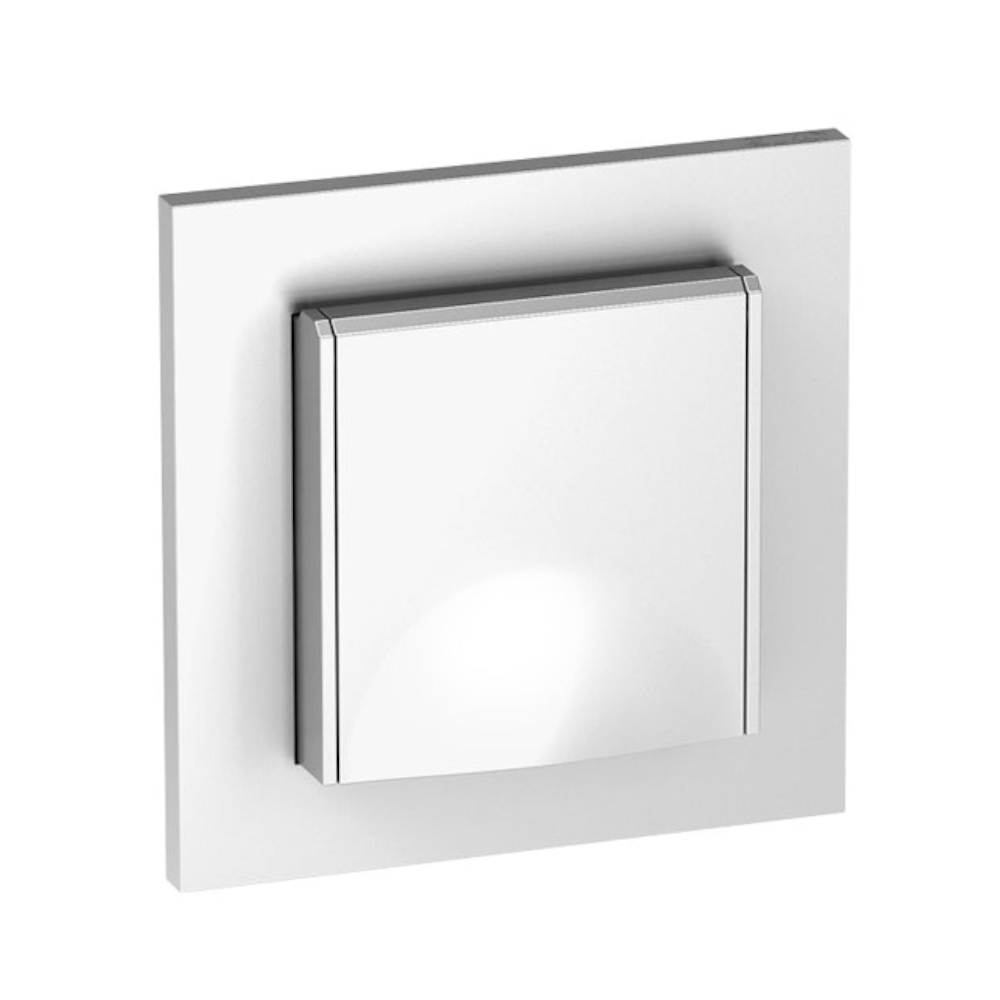

Wall Socket Plus 1-Way With Cover 16A 250V IP44 Aluminum Elko

Description

Base, cover plate, frame and cover made of halogen-free thermoplastic. Double connections per phase. Screw connection. Safety socket. Mounting screw distance, 60mm. Supplied without mounting claws but with sealing gasket for IP44. Mounting depth 31mm.

Technical Information

• Number of active pins (round): 0
• Number of active pins (flat): 0
• With signal lamp: No
• Number of modules (modular system): 1
• Number of switch-sectioned sockets: 0
• Number of phases: 1
• Type of connection: Screw terminal
• With hinged cover: No
• Touch-protected: No
• Text field/Place for marking: No
• Lockable: No
• Extension mechanism: No
• Insulated mounting: No
• With functional lighting: No
• With orientation lighting: No
• Surge protection: No
• Fault current protection: No
• With microfuse: No
• Mounting method: Flush mounting
• Type of fastening: Screw mounting
• Anti-bacterial: No
• With through-connection function: No
• With On/Off button: No
• Rotated central insert: No
• Rated current: 16A
• Rated voltage: 250V
• Frequency range: 50 - 60 Hz
• Nominal fault current: 0 mA
• Suitable for protection class (IP): IP44

Specifications

• Material: Plastic
• Material quality: Thermoplastic
• Halogen-free: No
• Surface protection: Lacquered
• Surface type: Matt
• Colour: Aluminium
• RAL number (similar): 9006
• Transparent: No
• Unit width: 86mm
• Unit height: 86mm
• Unit depth: 51mm
• Minimum depth of flush-mounted installation box: 32mm
