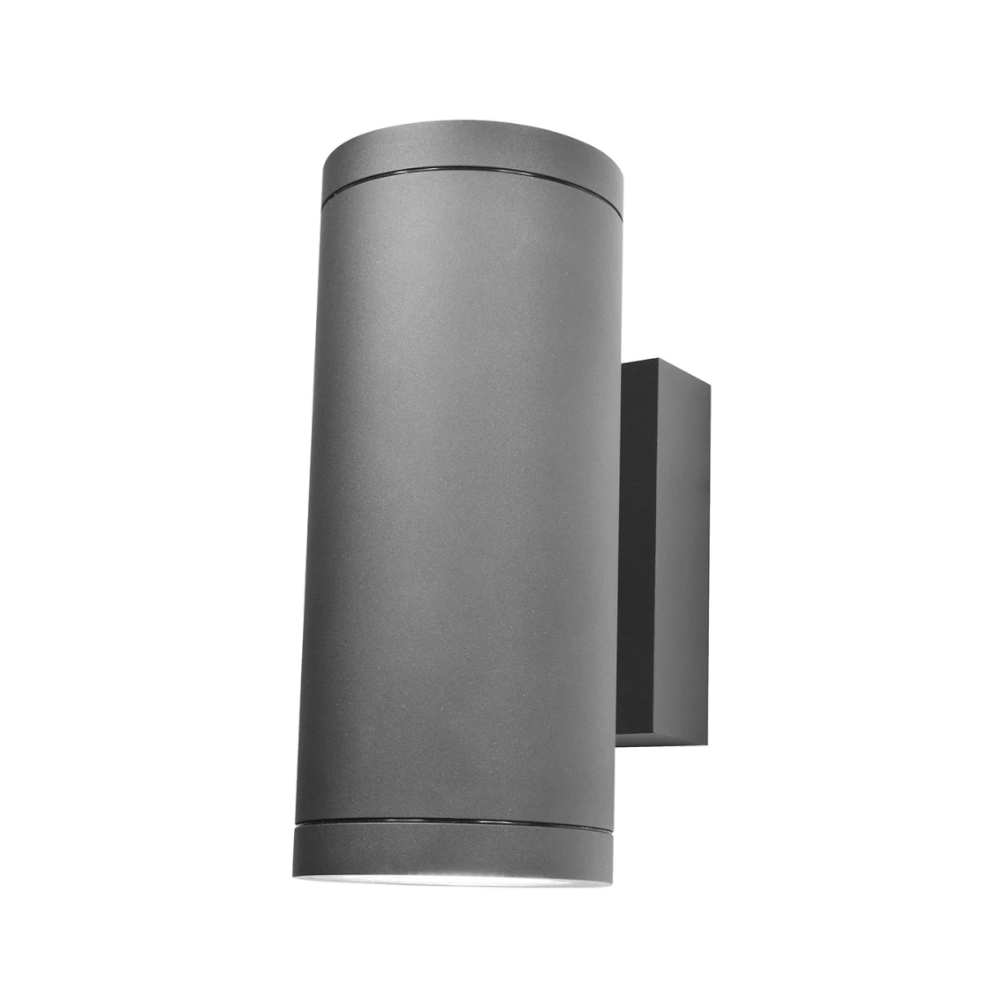

Wall Luminaire LED Ivy II Medium 830 3Poles 21W 220-240V 1160lm 3000K IP45/IP65 Grey Exaktor

Description

Ivy Medium II is a wall luminaire in a timeless design that is available with light emission both upwards and downwards. This LED luminaire is dimmable with a trailing edge dimmer and has high durability with IP65 and IK06. Easy installation with quick connection between the frame and the outer part. Available in black or aluminium grey textured paint and also with single light sources (I). The Ivy series offers two sizes, where Ivy M is the larger variant. The smaller variant, Ivy S is also available in GU10 version.

Technical Information

• Color temperature: 3000 - 3000K
• Protection class (IEC 61140): I
• Impact resistance (IK): IK06
• Light distribution: Symmetrical
• Connectable conductor area: 0.75 - 2.5 mm²
• Number of poles: 3
• Maintained luminous flux at average lifetime 50,000 hours (25°C ambient): 70%
• Maintained luminous flux at average lifetime 75,000 hours (25°C ambient): 74%
• Bluetooth controlled: No
• Failure at average lifetime 50,000 hours (25 °C ambient): 30%
• CLO: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): Yes
• Dimming DALI: No
• Dimming DALI-2: No
• Dimming DMX: No
• Dimming DSI: No
• Front edge dimming (phasecut-on): Yes
• Push button dimming: No
• Mains voltage modulation dimming: No
• Manufacturer specific dimming: No
• Dimmable: Yes
• Driver: LED driver (constant current)
• Driver included: Yes
• Power factor: 0.95
• Energy efficiency class light source (EU 2019/2015): E
• Color of light adjustable: No
• Color constancy (McAdam ellipse): SDCM3
• Color rendering index (CRI/Ra): 80-89
• Flicker value Pst LM: 1
• Glowing wire test (IEC 60695-2-11): None
• Adjustable light distribution: No
• Luminous flux adjustment: No
• Protection class (IP) rear: IP45
• Protection class (IP) front: IP65
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Casambi: No
• Compatible with Google Assistant: No
• Suitable for built-in/recessed installation: No
• Suitable for clamp installation: No
• Suitable for pendant suspension: No
• Suitable for ramp installation: No
• Suitable for surface-mounted installation: Yes
• Suitable for wall mounting: Yes
• Suitable number of light sources: 2
• Conductor cross-section: 2.5 mm²
• Light distributor/diffuser: Reflector
• Light source: LED (replaceable)
• Light beam angle: 40-80° (wide beam)
• Luminous efficiency: 110 - 110 lm/W
• Light outlet: Direct/indirect
• Rated voltage: 220 - 240 V
• Rated current: 140 - 140 mA
• Maximum number of luminaires per circuit breaker B16: 114
• Maximum number of luminaires per circuit breaker C16: 114
• Max. number of luminaires per circuit breaker C10 (MCB): 71
• Max. system power: 21W
• With switch: No
• With light source: Yes
• With light sensor: No
• With mounting parts: Yes
• With presence detector: No
• With motion sensor: No
• With IFTTT support: No
• Emergency power supply system: None
• Nominal service life L70/B50 at 25 °C: 80000 h
• Nominal ambient temperature according to IEC 62722-2-1: -20 - 40°C
• Nominal luminous flux (IEC 62722-2-1): 2320 - 2320 lm
• Grid design: None
• Voltage type: AC
• Strobe power value SVM: 0.4
• Connection type: Push-in terminal (quick terminal)
• Type of wiring: Suitable for through-wiring
• Replaceable driver: Yes

Specifications

• Light color: White
• Material housing/enclosure/body: Aluminum
• Material dome/cover: Glass (transparent)
• Surface protection housing/enclosure/frame: Powder coated
• Food Contact Material: No
• REACH: No
• ROHS: Yes
• Color housing/enclosure/frame: Gray
• Length: 152 mm
• Height/depth: 231 mm
• Width: 100 mm
