Wall Luminaire Ivy II Small GU10 3Poles 10W 220-240V IP45/IP65 Black Exaktor

Description

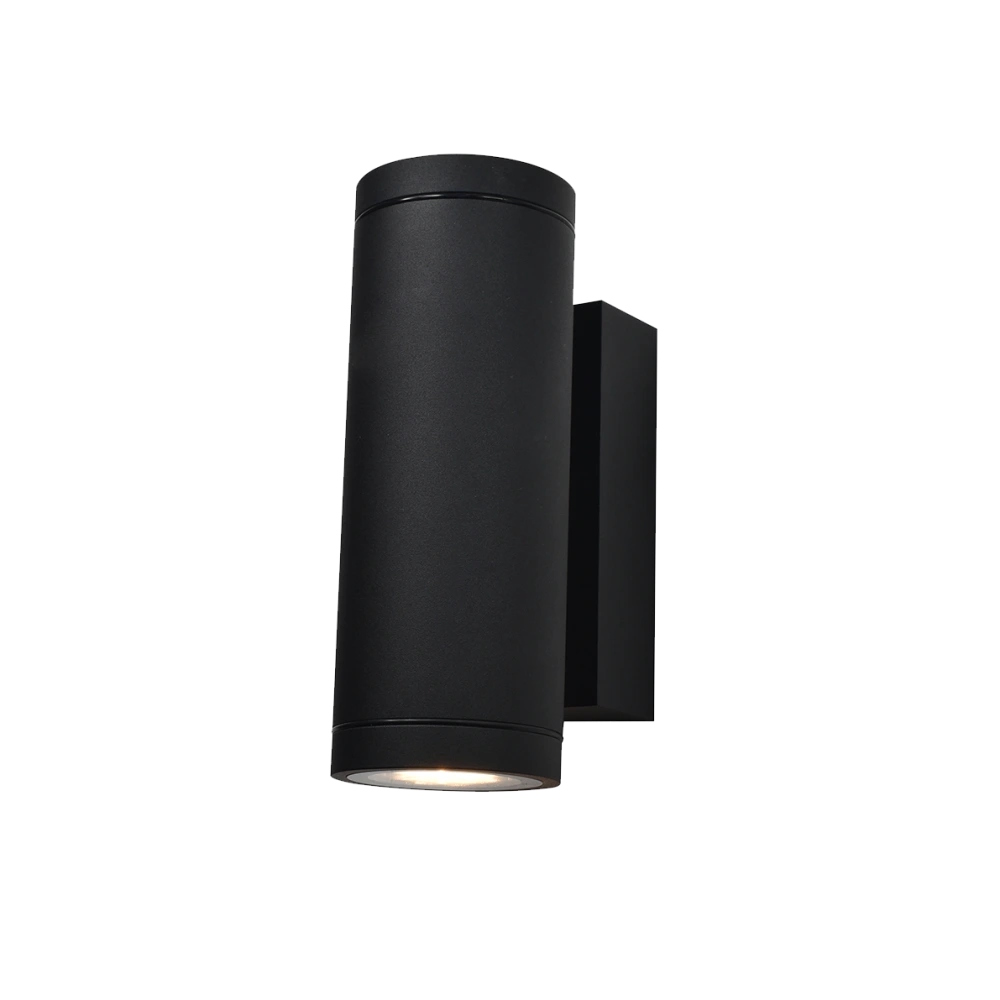

Ivy S GU10 II is a wall luminaire in a timeless design with light emission both upwards and downwards. The luminaire has a GU10 socket where the recommended maximum power of the light source is 4.5W or less. Ivy S GU10 has high durability with IP65 and IK06 and a smooth installation with a quick connection between the body and the outer part. Available in black or aluminium grey textured paint and also with a single light source (I). The Ivy series also includes an LED version in two sizes, S and M. The GU10 version is only available in S.

Technical Information

• Protection class (IEC 61140): I
• Impact resistance (IK): IK06
• Connectable conductor area: 0.75 - 2.5 mm²
• Number of poles: 3
• Dimming with push button: No
• Driver: Not required
• Driver included: No
• Glow-wire test (IEC 60695-2-11): None
• Protection class (IP) rear: IP45
• Protection class (IP) front: IP65
• Lamp holder/socket: GU10
• Suitable for built-in/recessed mounting: No
• Suitable for clamp mounting: No
• Suitable for lamp power: 0.5 - 10 W
• Suitable for pendant suspension: No
• Suitable for ramp mounting: No
• Suitable for surface mounting: Yes
• Suitable for wall mounting: Yes
• Suitable number of light sources: 2
• Conductor cross-section: 2.5 mm²
• Light source: LED (replaceable)
• Light outlet: Direct/indirect
• Rated voltage: 220-240V
• Max. system power: 10W
• With switch: No
• With light source: No
• With light sensor: No
• With mounting parts: Yes
• With presence detector: No
• With motion sensor: No
• Emergency power supply system: None
• Grid design: None
• Voltage type: AC
• Connection type: Plug-in terminal (quick terminal)
• Type of wiring: Suitable for through-wiring
• Replaceable driver: No

Specifications

• Material housing/enclosure/frame: Aluminum
• Material dome/cover: Glass (transparent)
• Surface protection housing/enclosure/frame: Powder coated
• Color housing/enclosure/frame: Black
• Food Contact Material: No
• REACH: No
• ROHS: Yes
• Length: 116.5mm
• Height/depth: 180mm
• Width: 68mm
