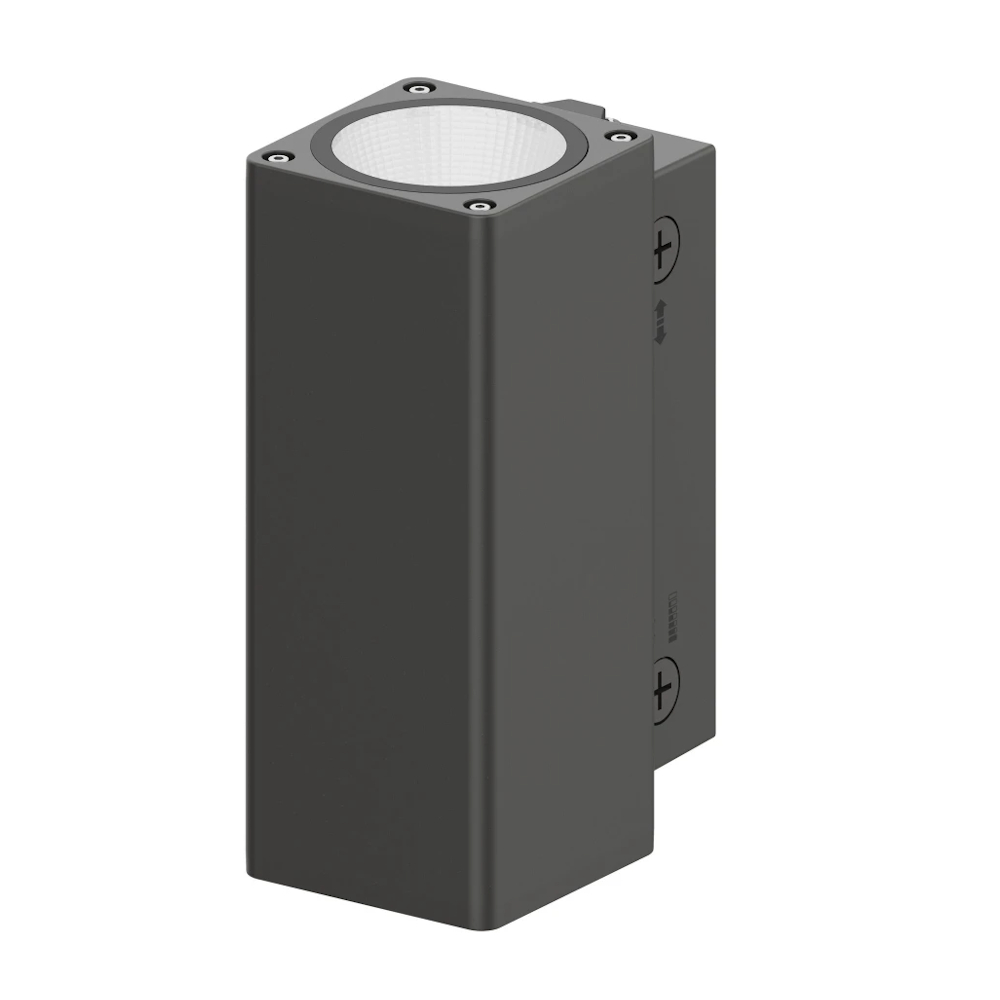

Urban Wall Vario Square 82227 2Poles 29W 220-240V 1300-2600lm 2200/2700K IP65 Grey Ledvance

Description

Ledvance Urban Wall Vario is a very versatile luminaire with industrial design for outdoor use with upward and/or downward light. The luminaire comes with features such as Multi Color where you can easily choose between 2 different color temperatures and Multi Lumen with selectable power in 3 steps (100%, 70%, 50%) via integrated switch. Automatic on/off thanks to daylight detection. Selectable light distribution (up and/or down) via integrated switch. Choose between 2 different beam angles via interchangeable reflectors: wide beam angle 55° (pre-installed) and narrow beam angle 30° (accessory included). High corrosion resistance C4 and integrated ventilation to prevent condensation inside the luminaire. The luminaire housings are available in round or square design and in grey (like RAL7022) and black (like RAL9017) colours. Suitable for commercial and industrial outdoor applications such as facade lighting, hotel entrances and walkway lighting.

Technical Information

• Color temperature: 2200/2700 K
• Nominal luminous flux: 2600 lm
• Protection class (IEC 61140): I
• Impact resistance (IK): IK08
• Light distribution: Symmetrical
• Adapted for VDU work (EN 12464-1): No
• Connectable conductor cross-section: 0.75 - 0.75 mm²
• Number of poles: 2
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Bluetooth controlled: No
• CLO: No
• No dimmer function: Yes
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): No
• Dimming DALI: No
• Dimming DALI-2: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phasecut-on): No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming with push button: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Casambi: No
• Compatible with Google Assistant: No
• Suitable for built-in/recessed mounting: No
• Suitable for clamp mounting: No
• Suitable for emergency lighting: No
• Suitable for pendant suspension: No
• Suitable for ramp mounting: No
• Suitable for ceiling mounting: No
• Suitable for surface mounting: Yes
• Suitable for wall mounting: Yes
• Conductor area: 0.75 mm²
• Light distributor/diffuser: Reflector
• Light intensity: 1780 cd
• Light source: LED (not replaceable)
• Light distribution angle: 40-80° (wide beam)
• Luminous output: 90 - 94 lm/W
• Luminous output: 90 lm/W
• Light output: Direct/indirect
• Rated voltage: 220 - 240 V
• Rated current: 135 - 135 mA
• Maximum number of luminaires per B16 circuit breaker: 18
• Dimming programmable: No
• Dimming RF: No
• Dimming sine wave (Sine Wave Reduction): No
• Dimming manufacturer-specific: No
• Dimming Zigbee: No
• Dimmable: No
• Driver: Electronic driver
• Driver included: Yes
• Power factor: 0.9
• Energy efficiency class light source (EU 2019/2015): D
• Color of light adjustable: Modes
• Color fastness (McAdam ellipse): SDCM3
• Color rendering index (CRI/Ra): 80-89
• Photobiological safety (EN 62471): RG1
• Glow wire test (IEC 60695-2-11): 650 °C - 30 s
• Contains product according to 2019/2020/EU: Yes
• Integrated emergency power supply: No
• Adjustable light distribution: Modes
• Adjustment of luminous flux: Modes
• Protection class (IP): IP65
• Protection class (IP) rear: IP65
• Protection class (IP) front: IP65
• Maximum number of luminaires per circuit breaker C16: 23
• Maximum number of luminaires per circuit breaker C10 (MCB): 14
• Max. system power: 29 W
• With switch: No
• With light source: Yes
• With light sensor: Yes
• With air hole: No
• With mounting parts: Yes
• With presence detector: No
• With motion sensor: No
• With IFTTT support: No
• Emergency power supply system: None
• Emergency power monitoring system: None
• Nominal service life L70/B50 at 25 °C: 109000 h
• Nominal ambient temperature according to IEC 62722-2-1: -40 - 45 °C
• Nominal luminous flux (IEC 62722-2-1): 1370 - 2600 lm
• Cover with insulation: No
• Rotary design: Other
• Voltage type: AC
• Connection type: Push-in terminal (quick terminal)
• Type of wiring: Termination
• Replaceable driver: Yes

Specifications

• Light color: White
• Color housing/enclosure/frame: Grey
• Surface protection housing/enclosure/frame: Powder coated
• Material housing/enclosure/frame: Aluminum
• Material Dome/Cover: Glass (transparent)
• Width: 100 mm
• Length: 150 mm
• Height/depth: 250 m
