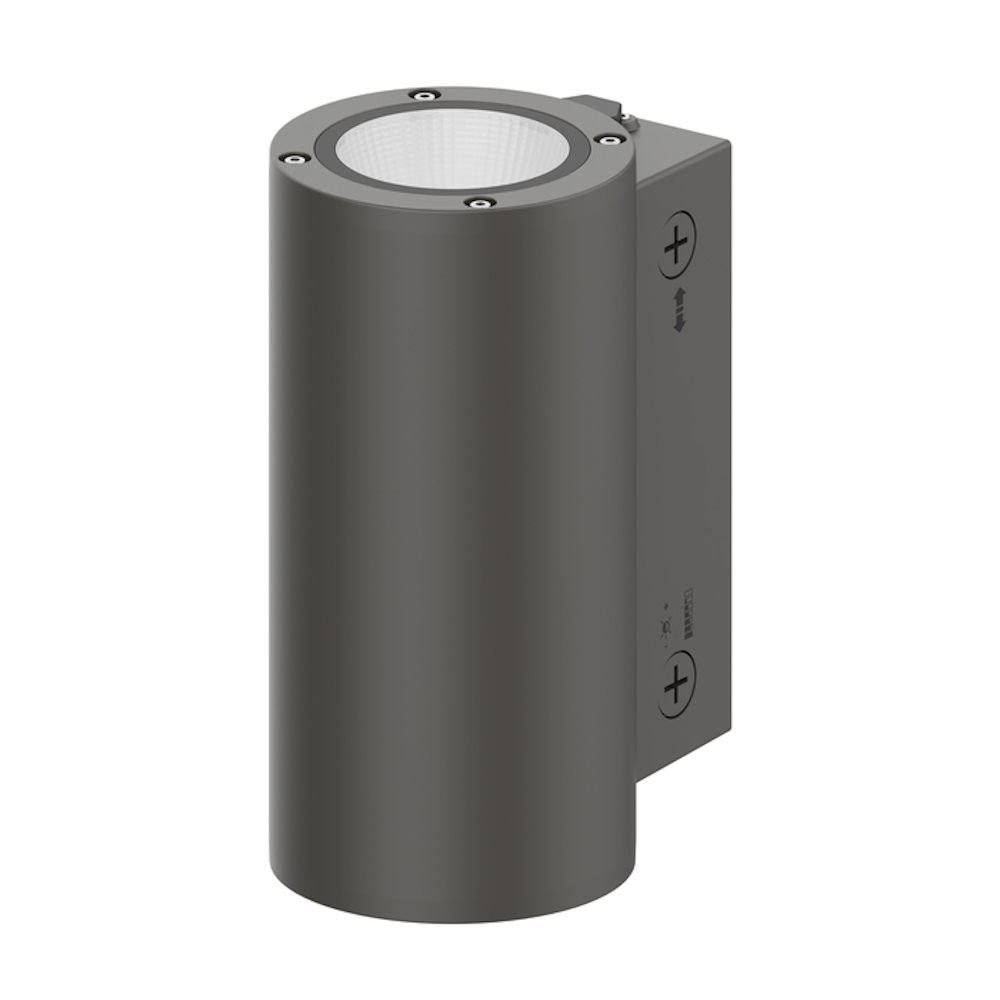

Urban Wall Vario Dali Round 4Poles 27W 220-240V 2550/2700lm 3000/4000K IP65 Grey Ledvance

Description

Ledvance Urban Wall Vario Dali is a very versatile dimmable luminaire with industrial design for outdoor use with upward and/or downward light. The luminaire comes with features such as Multi Color where you can easily choose between 2 different color temperatures and selectable light distribution (up and/or down) via integrated switch. Choose between 2 different beam angles via replaceable reflectors: wide beam angle 55° (pre-installed) and narrow beam angle 30° (accessory included). High corrosion resistance C4 and integrated ventilation to prevent condensation inside the luminaire. The luminaire housings are available in round or square design and in grey (like RAL7022) and black (like RAL9017) colours. Suitable for commercial and industrial outdoor applications such as facade lighting, hotel entrances and walkway lighting.

Technical Information

• Color temperature: 3000/4000 K
• Nominal luminous flux: 2700 lm
• Protection class (IEC 61140): I
• Impact resistance (IK): IK08
• Light distribution: Symmetrical
• Adapted for VDU work (EN 12464-1): No
• Connectable conductor area: 0.75 - 0.75 mm²
• Number of poles: 4
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Bluetooth controlled: No
• CLO: No
• No dimmer function: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): No
• Dimming DALI: Yes
• Dimming DALI-2: Yes
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phasecut-on): No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming with push button: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Casambi: No
• Compatible with Google Assistant: No
• Suitable for built-in/recessed mounting: No
• Suitable for clamp mounting: No
• Suitable for emergency lighting: No
• Suitable for pendant suspension: No
• Suitable for ramp mounting: No
• Suitable for ceiling mounting: No
• Suitable for surface mounting: Yes
• Suitable for wall mounting: Yes
• Conductor area: 0.75 mm²
• Light distributor/diffuser: Reflector
• Light intensity: 1850 cd
• Light source: LED (not replaceable)
• Light distribution angle: 40-80° (wide beam)
• Luminous efficiency: 100 lm/W
• Light socket: Direct/indirect
• Rated voltage: 220 - 240 V
• Rated current: 120 mA
• Maximum number of luminaires per B16 circuit breaker: 21
• Dimming programmable: No
• Dimming RF: No
• Dimming sine wave (Sine Wave Reduction): No
• Dimming manufacturer-specific: No
• Dimming Zigbee: No
• Dimmable: Yes
• Driver: Electronic driver
• Driver included: Yes
• Power factor: 0.9
• Energy efficiency class light source (EU 2019/2015): D
• Color of light adjustable: Modes
• Color fastness (McAdam ellipse): SDCM3
• Color rendering index (CRI/Ra): 80-89
• Photobiological safety (EN 62471): RG1
• Glow wire test (IEC 60695-2-11): 650 °C - 30 s
• Contains product according to 2019/2020/EU: Yes
• Integrated emergency power supply: No
• Adjustable light distribution: Modes
• Luminous flow adjustment: Modes
• Protection class (IP): IP65
• Protection class (IP) rear: IP65
• Protection class (IP) front: IP65
• Maximum number of luminaires per C16 circuit breaker: 26
• Maximum number of luminaires per C10 circuit breaker (MCB): 16
• Max. system power: 27 W
• With switch: No
• With light source: Yes
• With light sensor: No
• With air hole: No
• With mounting parts: Yes
• With presence detector: No
• With motion sensor: No
• With IFTTT support: No
• Emergency power supply system: None
• Emergency power monitoring system: None
• Nominal service life L70/B50 at 25 °C: 100000 h
• Nominal ambient temperature according to IEC 62722-2-1: -20 - 45 °C
• Nominal luminous flux (IEC 62722-2-1): 2700 lm
• Cover with insulation: No
• Grid design: Other
• Voltage type: AC
• Connection type: Push-in terminal (quick terminal)
• Type of wiring: Termination
• Replaceable driver: Yes
• Specifications
• Light color: White
• Color of housing/enclosure/frame: Gray
• Surface protection Housing/enclosure/frame: Powder coated
• Material housing/enclosure/frame: Aluminum
• Material dome/cover: Glass (transparent)
• Width: 120 mm
• Length: 170 mm
• Height/depth: 254 mm
