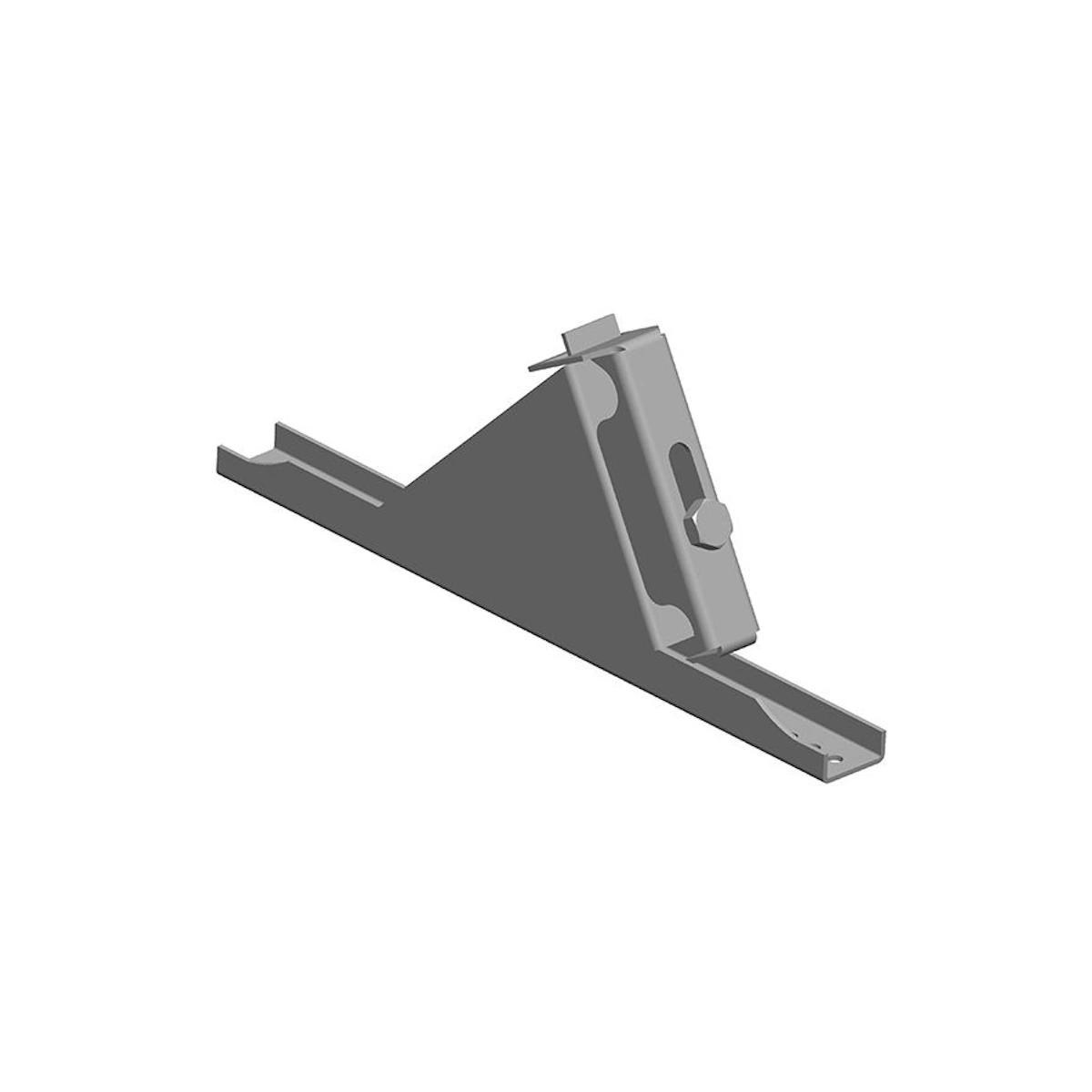

Two-Tube Bracket 6340 Grey For Snow Protection For Profiled Sheet Metal Roofs And Cardboard Roofs​ TJB

Description

Maximize roof safety with our robust two-tube bracket, specially designed for profiled sheet metal roofs and corrugated iron roofs on a solid base. This bracket is the perfect solution for those who want to supplement an existing package with simplified snow protection or create a customized roof solution.

Areas of use and compatibility

The bracket 6340 is designed for durability and safety on buildings with a facade height of up to 4 meters. It is tested and approved for the following materials:

• Steel sheet: Minimum 0.4 mm thickness.
• Aluminum sheet: Minimum 0.7 mm thickness.
• Corrugated iron roof: Mounted on a solid base of raw sheet metal (min. 17 mm) or K-plywood (min. 12 mm).

Technical Information

• Maximum CC dimension: 900 mm between the brackets.
• Supplement: Used together with Pipe 6350 (construction length 1130 mm).
• Important: Lifeline must not be attached to simplified snow guard.

Easy Assembly and Accessories

The bracket is delivered complete with mounting screws for sheet metal roofs. When installing on cardboard roofs, it is necessary to supplement with assembly kit 6918 (contains 30 wood screws with washers, which is enough for 5 brackets). For exact calculation of bracket spacing based on your snow zone, see [Distance table for snow guard].

Specifications

• Color: Grey
• Contains: 1 pc. cover, 1 pc. M10x40 f-bolt, 10 pcs. 6.3x20 mm sheet metal screws with sealing washers
