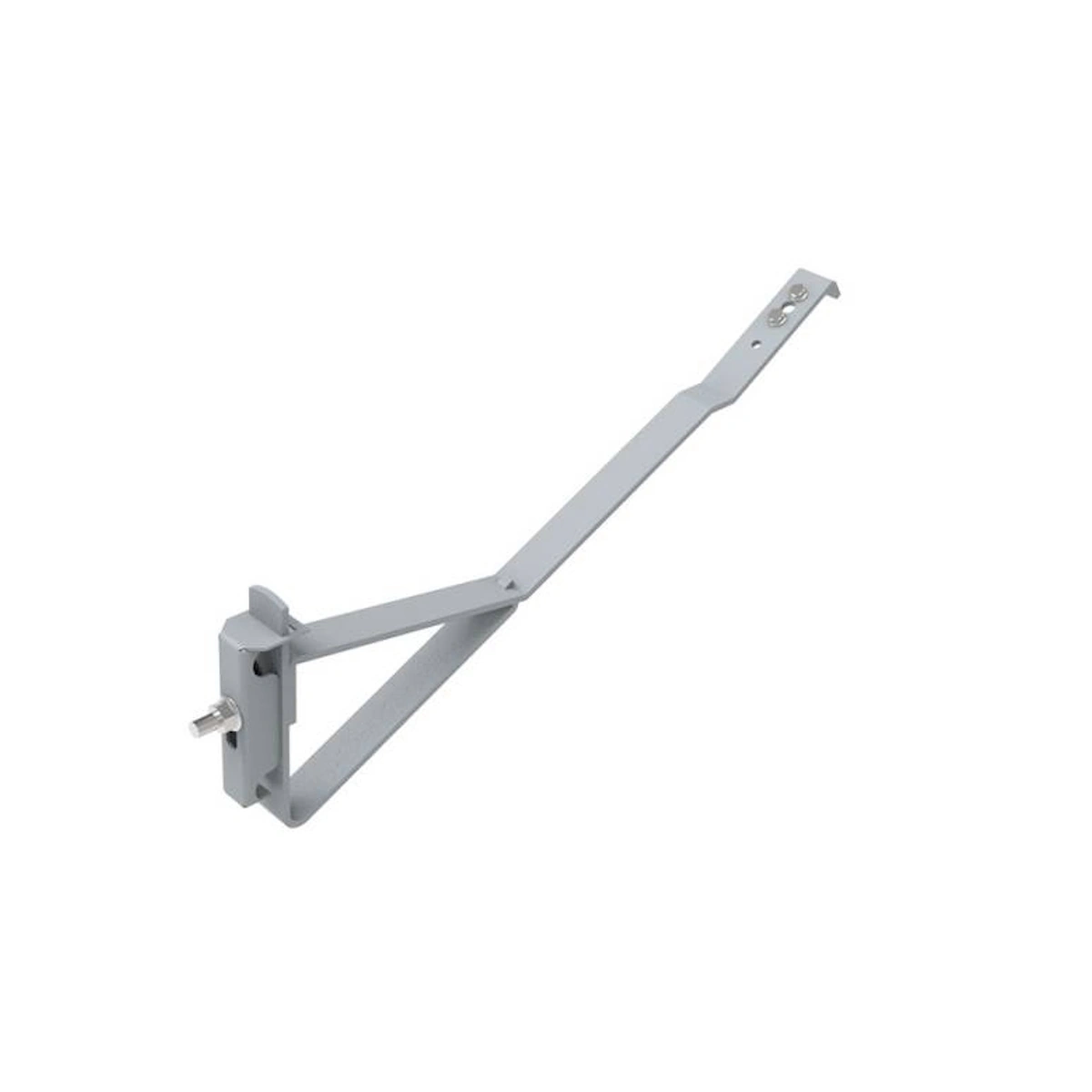

Two-Pipe Bracket 6330 Grey For Snow Protection For Concrete And Clay Tile Roofs TJB

Description

This two-pipe bracket 6330 is specifically designed for the most common profiles of concrete and clay tile roofs. The bracket is a central part of a simplified snow protection for houses with lower facade heights. Order the associated pipe 6350 here for a complete system.

Technical Information & Installation

Area of use: For houses with a facade height of max. 4 meters.

• Compatibility: Fits most profiles on concrete tiles and clay tiles.
• Attachment: Comes complete with wood screw for stable installation in the roof structure.

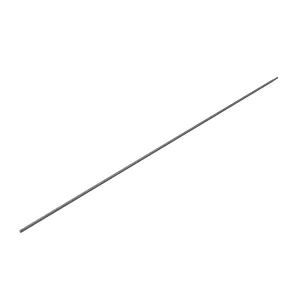

• System: Complete with pipe 6350 (construction length 1130 mm)

Important Assembly Instructions

• To ensure the safety and function of the roof, follow these guidelines:
• Bracket distance (C-dimension): Maximum 900 mm between brackets.
• Dimensioning: See table in the document, Distance tables, Snow zones for exact usage based on your local snow zone.
• Safety note: Lifeline must not be attached to a simplified snow fall protection. Approved attachment points are required for personal fall protection.

Why choose this bracket for your roof

Installing an effective snow fall protection on tiled roofs is crucial to protect both passersby and property during the winter months. This bracket (6330) is a robust and affordable solution for smaller properties and villas that require a discreet but safe installation.

Specifications

• Color: Grey
• Contains: 1 pc. Overlap (for stable fixation of the pipes), 1 pc. V-bolt (M20x50), 2 pcs. Flange nuts (M10), 2 pcs. Wood screws (6.3x38 mm) for direct mounting in battens or raw tongues.
