Timer Electronic Jussi 10A 230V IP21 White Busch-Jaeger

The timer set includes Jussi timer, single schuko socket and installation frame, fixed time options, 15min, 30min, 1hr, 2hr, 4hr and 8hr.

Timer Electronic Jussi 10A 230V IP21 White Busch-Jaeger

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

Timer Electronic Jussi 10A 230V IP21 White Busch-Jaeger

The timer set includes Jussi timer, single schuko socket and installation frame, fixed time options, 15min, 30min, 1hr, 2hr, 4hr and 8hr.

Description

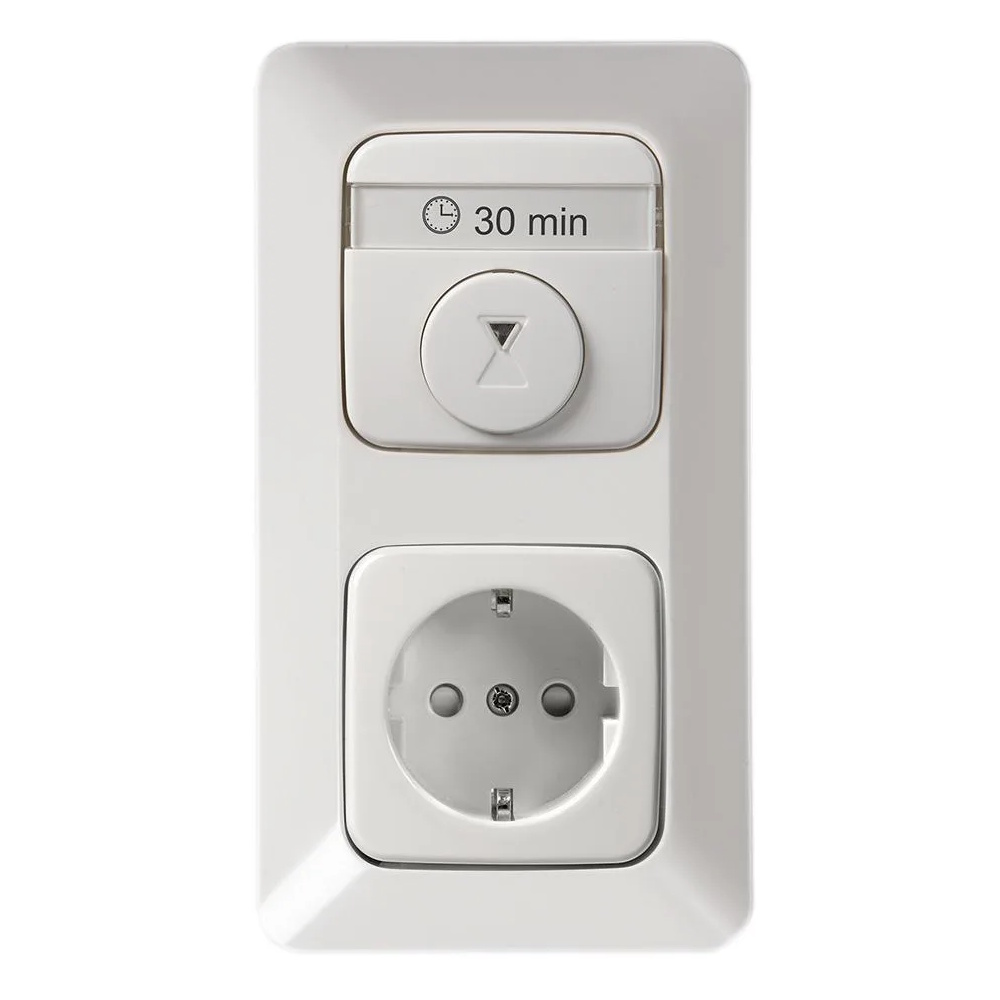

The timer set includes Jussi timer, single schuko socket and installation frame. Fixed time options: 15 min, 30 min, 1 hr, 2 hr, 4 hr and 8 hr. Replaceable labels with time options to mark the center plate with the selected time.

Technical Information

  • Nominal voltage: 230 V
  • Maximum current: 10 A
  • Suitable for protection class (IP): IP21
  • Protection class: IP21
  • Operating temperature: 0 … 40 °C
  • Operating frequency: 50 Hz
  • Fastening type: Screw mounting
  • Shortest switching interval: 15 min
  • Maximum power: 2300 W

Specifications

  • Material: Plastic
  • Material quality: Thermoplastic
  • Surface protection: Untreated
  • Surface treatment: Matt
  • Color: White
  • RAL number (similar): 9010
  • Width: 156 mm
  • Height: 85 mm
  • Depth: 34 mm
