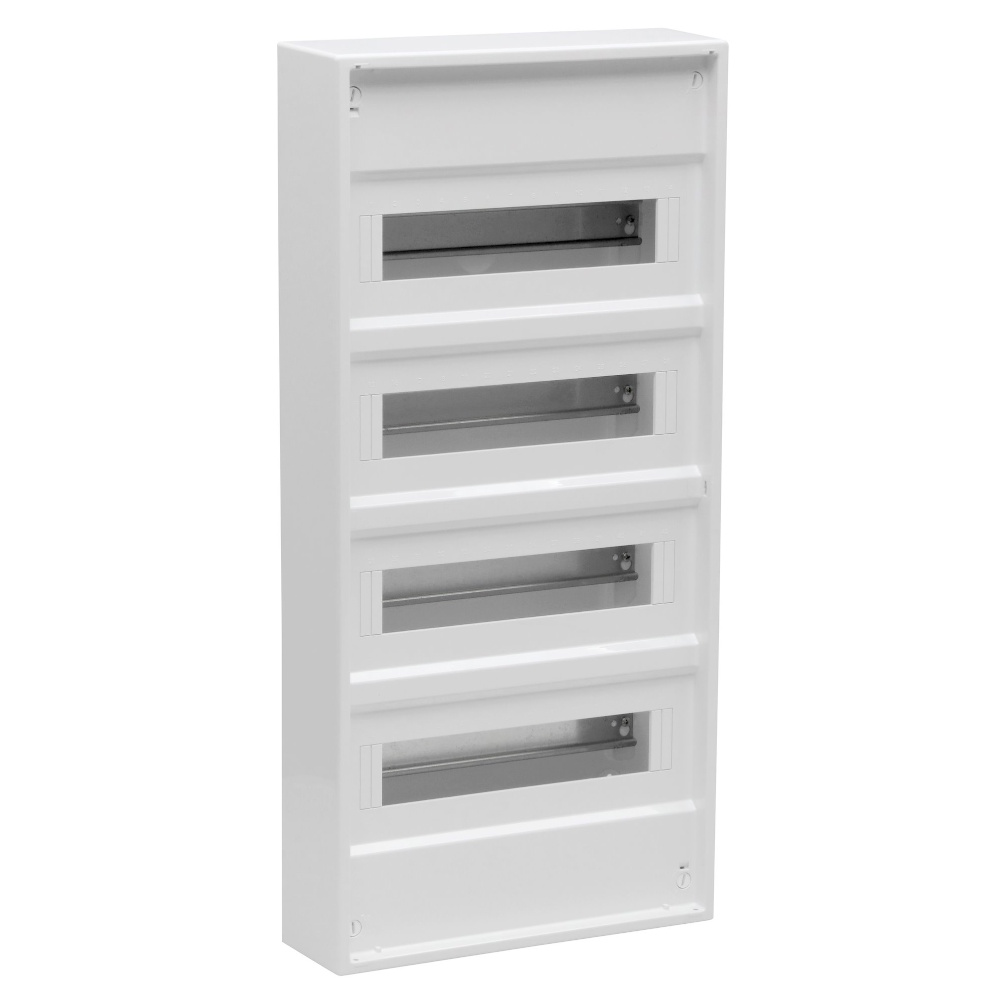

Standard Enclosure Alfa 48+8 Modules IP40 White Malmbergs 2291823

Standard enclosure for indoor use, each row has 12 modules open but can be expanded with 2 modules per row if extra space is needed.

Standard Enclosure Alfa 48+8 Modules IP40 White Malmbergs 2291823

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

Standard Enclosure Alfa 48+8 Modules IP40 White Malmbergs 2291823

Standard enclosure for indoor use, each row has 12 modules open but can be expanded with 2 modules per row if extra space is needed.

Description

Halogen-free standard enclosure in the ALFA series for indoor use, made of impact-resistant and self-extinguishing ABS plastic 650°C. A material with a glossy, impenetrable surface and important mechanical properties: resistance and durability. The rear panel is fully covered and has knockout holes for incoming cables and pipes, as well as brackets for cable ties or wire ties. Each row has 12 modules open but can be expanded with 2 modules per row if extra space is needed. Supplied with cover and neutral/protective conductor rail made of polyamide 960°C. Brackets for the rail are available at both the top and bottom. According to standard: IEC 60670 / ICE 62208. NOTE: Door is ordered separately and can be hung on the right or left as needed.

Specifications

  • Number of modules: 48+8
  • Number of rows: 4
  • Color: White, RAL9003
  • Protection class: IP40
  • Rated current: Max. 63A
  • Neutral/protective conductor rail: 2x(30x16mm²)
  • Temperature range: -25°C to +60°C
  • External dimensions (WxHxD): 310x650x96 mm
