Spotlight Spider20 Asymmetric 3Poles 37W/51W 220-240V 6005lm 4000K IP67 White Scan Interlight

Description

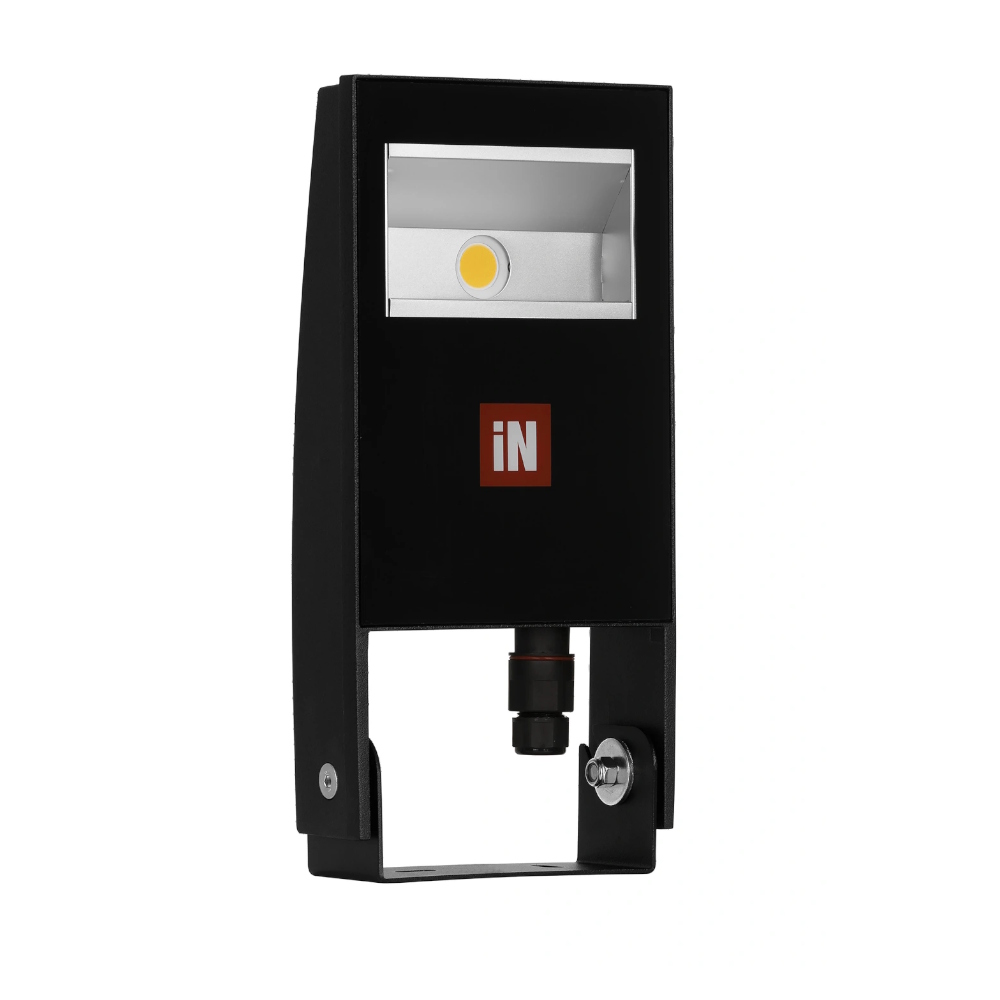

Black housing in die-cast aluminum. Tempered flat glass, aluminum clip. Optics in pure aluminum. Asymmetric light pattern reflector. Luminaire has two power settings, set with a button on the back. Black bracket with slot, quick coupling and spirit level for easy installation. Stainless steel screws. Silicone gasket. Terminal block: 3 poles x1.5/2.5mm². Diameter 8-124mm – H07RN . IP67. IK05. Insulation class I.

Technical Information

• Nominal luminous flux: 6005 lm
• Beam angle: >80° (extremely wide beam)
• Protection class (IP): IP67
• Color temperature: 4000 - 4000 K
• Suitable for overhead mounting: No
• Adjustability: Rotatable
• Adapted for VDU work (EN 12464-1): No
• Connectable conductor cross-section: 1 - 2.5 mm²
• Number of poles: 3
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Maintained luminous flux at average lifetime 100,000 hrs (25 °C
• ambient): 91.3 %
• Maintained luminous flux at average lifetime 35,000 hrs (25 °C
• ambient): 83.2 %
• Maintained luminous flux at average lifetime 50 000 hrs (25 °C
• ambient): 77.6 %
• Brushed surface: No
• CLO: No
• No dimmer function: Yes
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Trailing edge dimming (phasecut-off): No
• Dimming depending on driver: No
• Dimming DALI: No
• Dimming DALI-2: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phasecut-on): No
• Dimming GPRS: No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming with push button: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Dimming programmable: No
• Dimming RF: No
• Dimming sine wave (Sine Wave Reduction): No
• Dimming manufacturer-specific: No
• Dimming Zigbee: No
• Driver: LED driver (constant current)
• Driver included: Yes
• Energy efficiency class built-in lamps: A++, A+, A (LED)
• Color of light adjustable: No
• Color fastness (McAdam ellipse): SDCM3
• Color rendering index (CRI/Ra): 80-89
• Glow wire test (IEC 60695-2-11): 960 °C - 30 s
• Integrated emergency power supply: No
• Adjustable light distribution: No
• Luminous flow adjustment: Modes
• Protection class (IP) front: IP67
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Google Assistant: No
• Lamp holder/socket: None
• Suitable for built-in/recessed mounting: No
• Suitable for clamp mounting: No
• Suitable for low-voltage systems: No
• Suitable for pillar/floor mounting: No
• Suitable for pendant suspension: No
• Suitable for track mounting: No
• Suitable for ceiling mounting: No
• Suitable for surface mounting: No
• Suitable for wall mounting: Yes
• Suitable number of light sources: 1
• LED nominal current at constant current: 1400 - 1400 mA
• Conductor cross-section: 2.5 mm²
• Luminous flux: 6967 - 6967 lm
• Light distributor/diffuser: Reflector
• Light distribution: Asymmetrical
• Light source: LED (not replaceable)
• Luminous efficiency: 118 lm/W
• Light outlet: Direct
• Rated voltage: 220 - 240 V
• Maximum number of luminaires per circuit breaker B16: 13
• Maximum number of luminaires per circuit breaker C16: 21
• Max. system power: 37 W
• With light source: Yes
• With light sensor: No
• With motion sensor: No
• With IFTTT support: No
• Nominal ambient temperature according to IEC 62722-2-1: -20 - 30 °C
• Nominal luminous flux (IEC 62722-2-1): 4762 - 4762 lm
• Cover with insulation: No
• Reflector: High gloss
• Protection class (IEC 61140): I
• Impact resistance (IK): IK05
• Voltage type: AC
• Connection type: Screw terminal
• Type of wiring: Termination
• Replaceable driver: No

Specifications

• Light color: White
• Material housing/enclosure/frame: Aluminum
• Material dome/cover: Glass (transparent)
• Surface treatment: Powder coated
• Color housing/enclosure/frame: Black
• Food Contact Material: No
• REACH: No
• ROHS: Yes
• Height/Depth: 64 mm
• Installation Diameter: 0 mm
• Length: 350 mm
• Width: 164 mm
