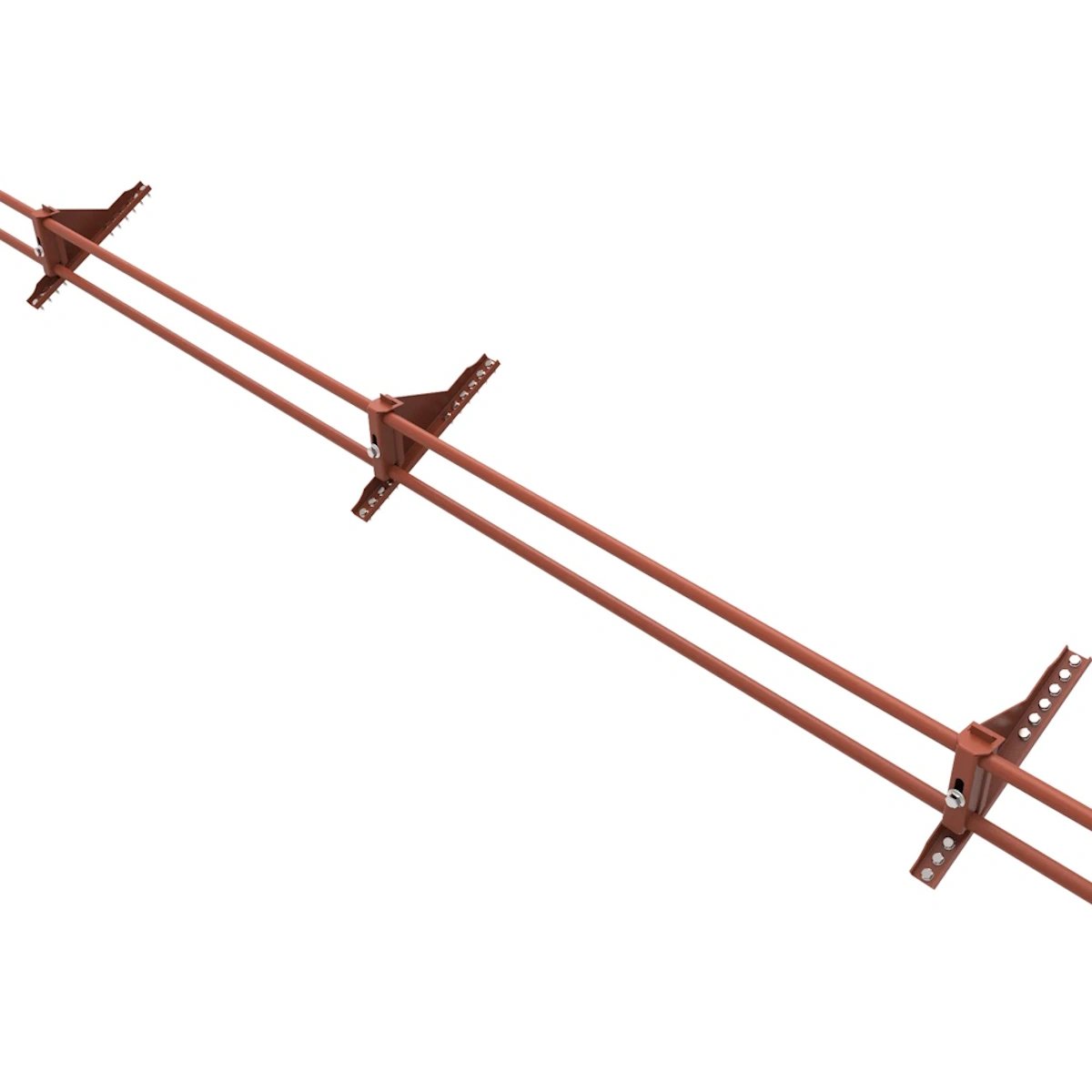

Snow Protection Package 1.53m Brick Red For Tiled Roofs TJB

Description

Effective snow protection that is installed on properties with a facade height of up to 4 meters. Our complete packages provide a stable and safe installation, but please note that snow protection is not approved for attaching a lifeline. For safe roof access, separate attachment for a lifeline is recommended according to BBR 22.

Guide: Choose the right package based on bracket spacing. To achieve a durable construction, it is important to combine the packages correctly in relation to your bracket spacing. See recommended spacing in Document.

• 900 mm: Use only long packages.
• 750 mm (for distances under 9 m): Use only long packages.
• 750 mm (for distances over 9 m): Use long packages, but make sure that at least every tenth package is a short package.
• 600 mm: Use a combination where you alternate every other long and every other short package.
• 500 mm: Use only short packages.
• Below 500 mm: Use short packages and supplement with extra loose brackets.
• Important for doors and gates: When installing over doors and gates, short sections should be used with a maximum bracket distance of 600 mm and at least three brackets per section.

Tip: Always check your local snow zone to ensure that the bracket distance is dimensioned for the correct load.

Specifications

• Length: 1.53 m (Effective construction length: 1.46 m)
• Color: Brick red
• Maximum facade height: 4 meters
• Material: Adapted for tiled roofs
• Contains: 3 brackets, 4 pipes 0.8 m and 6 wood screws 6.3x38 mm
