Smoke Detector Addressable Siren Flash Red Dual Optical 17-29VDC IP21C White Kidde Commercial

Description

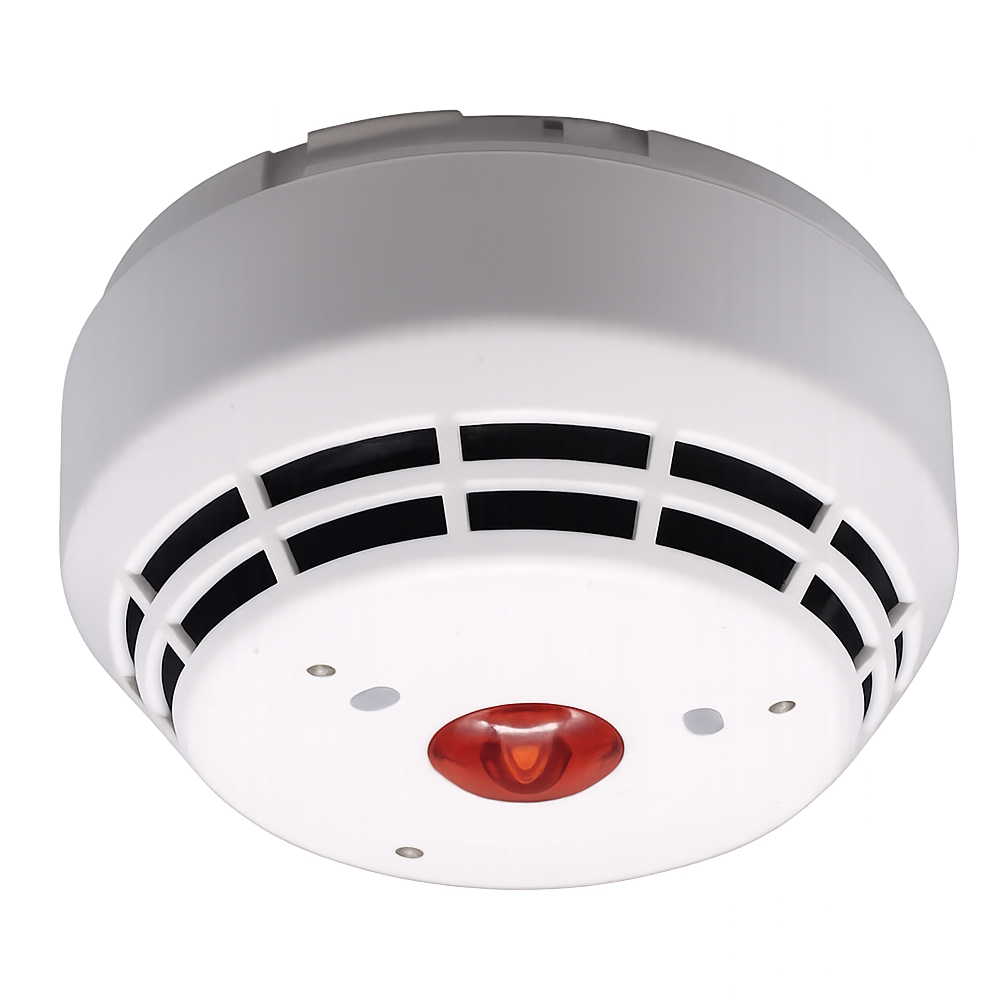

The DP3120W-SNV is a Kidde Excellence Series, Smoke Detector with Siren and Red Flash Light. Signal White Addressable Dual Optical Detector with Isolator.

Specifications

• Status indication: Tri-colour LED
• Compatibility: Kidde Commercial Excellence Systems
• Alarm levels: 3
• Event log: Available
• Connection: Excellence series, standard base
• Addressing method: Rotary switch
• Power supply type: Loop driven
• Operating voltage: 17 to 29 VDC
• Communication voltage: 4 to 11 V pulsed
• Current consumption: < 40 mA (alarm at 24 VDC - notification level dependant)
• 500 µA (quiescent at 24 VDC)
• Number of cable cores: 6
• Detection principle: Optical light scatter, forward and backward / Heat
• Monitoring: Alarm threshold, Contamination level, Fault
• Sensitivity: Selectable
• Coverage area: < 112 m²
• Particle sensitivity range: 0.1 to 0.25 dB/m ±20%
• Alarm temperature (max): +70°C
• Alarm temperature (minimum): +54°C
• Rise Rate: Supported
• Installation Height: < 10.5 m (optical) / < 7.5 m (heat)
• Output Quantity: 1
• Output Type & Classification: Remote indicator
• Programmable: No
• Remote Alarm Output: <8 mA
• Type: Negative line break
• Number per Loop: ≤128
• Isolation Voltage: 14 to 15.5 VDC
• Reconnect Voltage: 14 to 15.5 VDC
• Loop Current: 5 mA (isolated)
• Switching Current: 1.05 A (continuous) / 1.4 A (pulsed)
• Leakage Current: <1 mA
• Series Resistance: <0.08 Ω
• Impedance Requirement: ≤32 devices between isolators
• Physical Dimensions (Diameter x H): 100 x 54 mm
• Color: White (RAL 9016)
• Mounting Type: Base Mount
• Material (body): PC / ABS
• Material (contacts): Brass
• Functional marking: Device type, Isolation
• Vandal proof: No
• Operating temperature: -10 to +55°C
• Storage temperature: -30 to +75°C
• Application temperature (max): +50°C
• Operating temperature (typical): +25°C
• Relative humidity: 10 to 93% noncondensing
• Environment: Indoor
• IP rating: IP21C
• Compliance: CE, REACH, RoHS 3, WEEE
• Certification: CPR
• Voluntary markings: BOSEC
• Standards: EN54-3, EN54-5, EN54-7, EN54-17, EN54-23
• Output level: 51 to 99 dB(A) - Tone dependent
• Output level adjustment: 4 levels
• Frequency: User selectable
• Selectable tones: 32
• Synchronization: Supported
• Number of steps: 3
• ROHS: Yes
• REACH: No
• Food contact material: No
