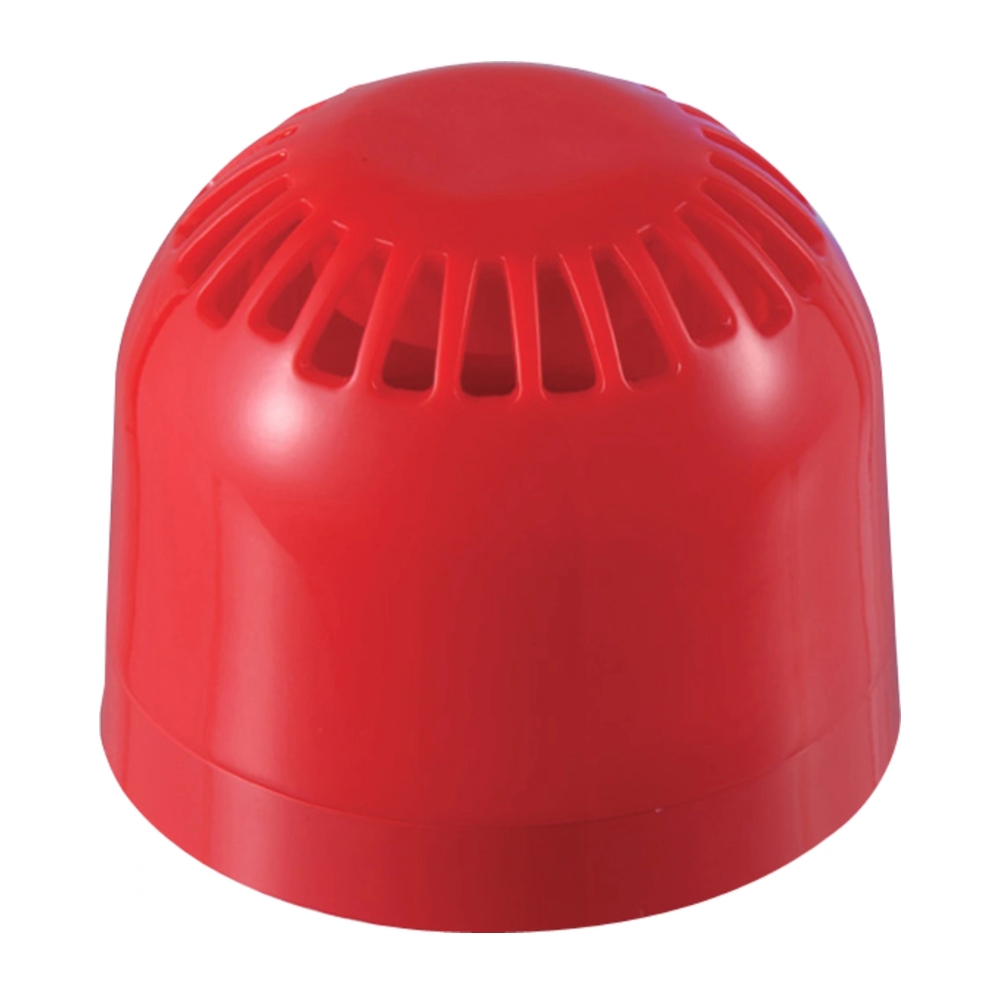

Siren With Low Base 0.041A 24VDC IP21 Red Kidde Commercial

Description

Red siren with low base 32 tones, IP21 for CPD approved 17-60 VDC, 4-41 mA. Power supply 9-60 VDC, 4-41 mA, 90-106 dBA at 1 m. AS363 is a 32 tone siren suitable for fire alarms. All cable connections are made on the base and allow for easy installation/maintenance of the siren. S363 provides high sound level at low power consumption. The siren is supplied with a volume control as standard which allows final sound adjustments to be made in connection with the installation.

With a choice of 32 selectable tones (see tone selection table in the manual), the default tone can be changed during installation. A second tone is available if additional cables have been installed in the siren terminal block. Locking of the siren base can be done if necessary. Once the base is locked, a special tool is required to remove the siren from the base.

Specifications

• Power type: DC
• Power consumption: 0.041 A
• Protection class (IP): IP21
• Colour of housing/enclosure/frame: Red
• Sound power: 106 dB
• Material of housing/enclosure/frame: Plastic
• Nominal voltage: 24 V
• ROHS: Yes
• REACH: No
• Food contact material: No
