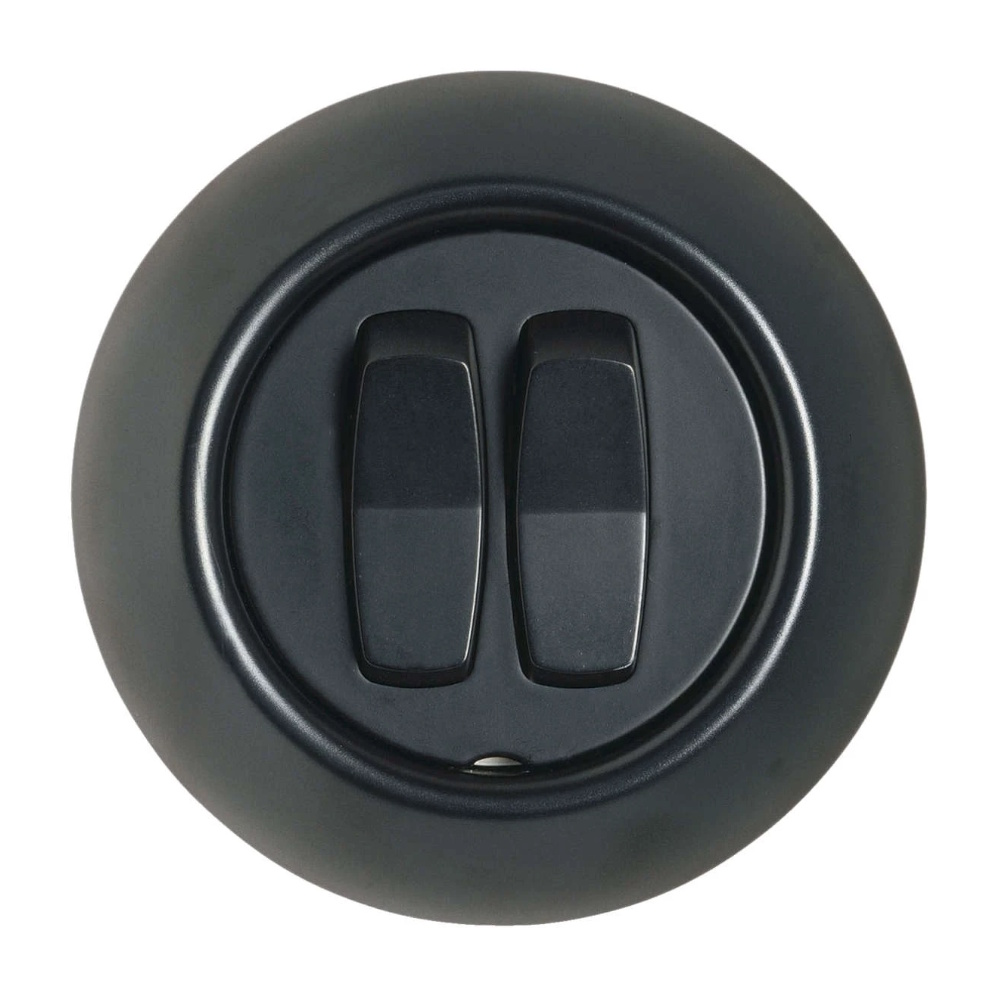

Renova Rocker Switch Kron 16A 250V IP20 Black Schneider Electric

Description

Renova Switch 16A for flush-mounted IP20 mounting in a c/c 60 device box or externally in a 22mm surface-mounted box. Screw connection. Snap-on attachment of the rocker with a mounting plate. The switches have two neutral bypass terminals in addition to the D-trap (connection 6+6). Supplied with claws. Complete with frame. It achieves protection class IP20. The connection terminals are screw terminals. Made of PC/ABS material. In addition, it complies well with the EN 60669-1 standard. It also has CE, FIMKO, NEMKO and SEMKO certificates. It is mercury-free as well as heavy metal-free, which takes care of the environment and your health. This push button is also free from SVHC Renova combines an elegant older design with unique accessories that all meet today's requirements for safety and comfort. smart options such as wallpaper protection.

Technical Information

• Nominal voltage: 250V
• Mounting method: Flush mounting (drywall)
• Mounting device: Basic element with full-covering plate
• Operation method: Rocker switch/button
• Rated current: 16A
• Mounting type: Claw and screw mounting
• Connection system: Series switch
• Suitable for protection class (IP): IP20
• Connection type: Screw terminal
• Built-in depth: 18mm
• Number of rocker switches: 2
• Switching current for fluorescent lamps: 16 AX
• Min. depth of built-in installation box: 22mm
• Function: Crown

Specifications

• Color: Black
• RAL number (similar): 9005
• Surface protection: Untreated
• Material quality: Thermoplastic
• Material: Plastic
• Surface treatment: Matt
• Width: 71mm
• Height: 71mm
• Depth: 37mm
