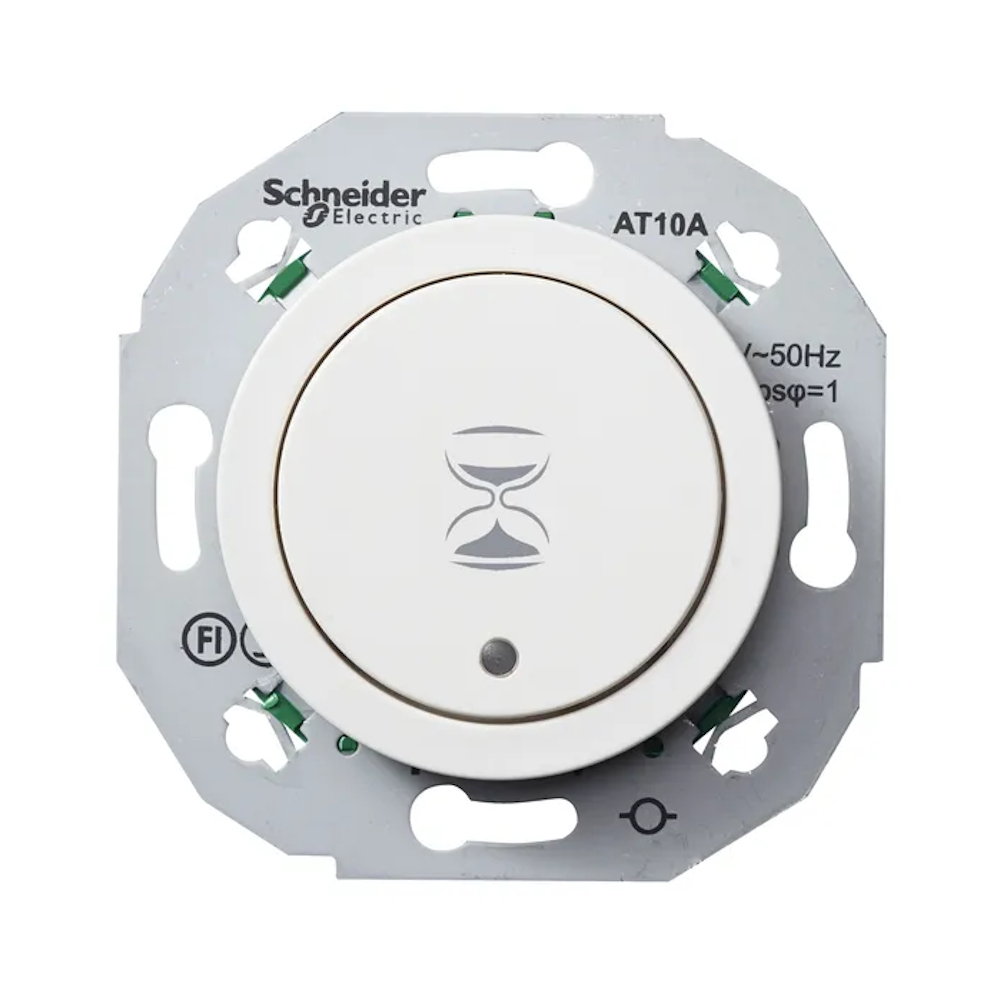

Renova Electronic Timer 2Poles 10A 2300W 230V IP20 White Schneider Electric

Renova Electronic timer 2 Poles for flush-mounted IP20 installation in a device box, adjustable between 15 and 30 minutes and 1, 2, 4 and 8 hours.

Renova Electronic Timer 2Poles 10A 2300W 230V IP20 White Schneider Electric

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

Renova Electronic Timer 2Poles 10A 2300W 230V IP20 White Schneider Electric

Renova Electronic timer 2 Poles for flush-mounted IP20 installation in a device box, adjustable between 15 and 30 minutes and 1, 2, 4 and 8 hours.

Description

Renova Electronic timer 2 Poles for flush-mounted IP20 installation in a device box. For surface-mounted installation, use the E18 311 96/9 7 socket. Adjustable between 15 and 30 minutes and 1, 2, 4 and 8 hours. Requires neutral conductor. screw connection, supplemented with optional R enova frame. White RAL 9010 Flush-mounted installation in a device box or surface-mounted socket With a maximum permitted power of 2300W, 300VA, 360VA. 230V is the nominal operating voltage. And its rated current is 10 A. With a built-in depth of 32 mm, it has a protruding part of 15 mm. The IP rating of this unit is IP20. The connection terminals on this unit are screw terminals. Made of PC/ABS material, this unit is very reliable and durable. Renova combines a slim, older design with unique accessories that all meet today's requirements for safety and comfort. smart options such as wallpaper protection.

Technical Information

  • Nominal voltage: 230V
  • Mounting method: Flush mounting (drywall)
  • Mounting arrangement: Basic element with central cover plate
  • Model: Electronic
  • Shortest switching interval: 15 min
  • Rated current: 10A
  • Frequency: 50Hz
  • Max. power: 2300W
  • Mounting type: Screw mounting
  • Min. depth of built-in installation box: 46mm
  • IP protection class: IP20

Specifications

  • Colour: White
  • RAL number (similar): 9010
  • Transparent: No
  • Surface protection: Untreated
  • Material quality: Thermoplastic
  • Material: Plastic
  • Installation depth: 32mm
  • Protrusion dimensions: 15mm
  • Diameter: 71 mm
