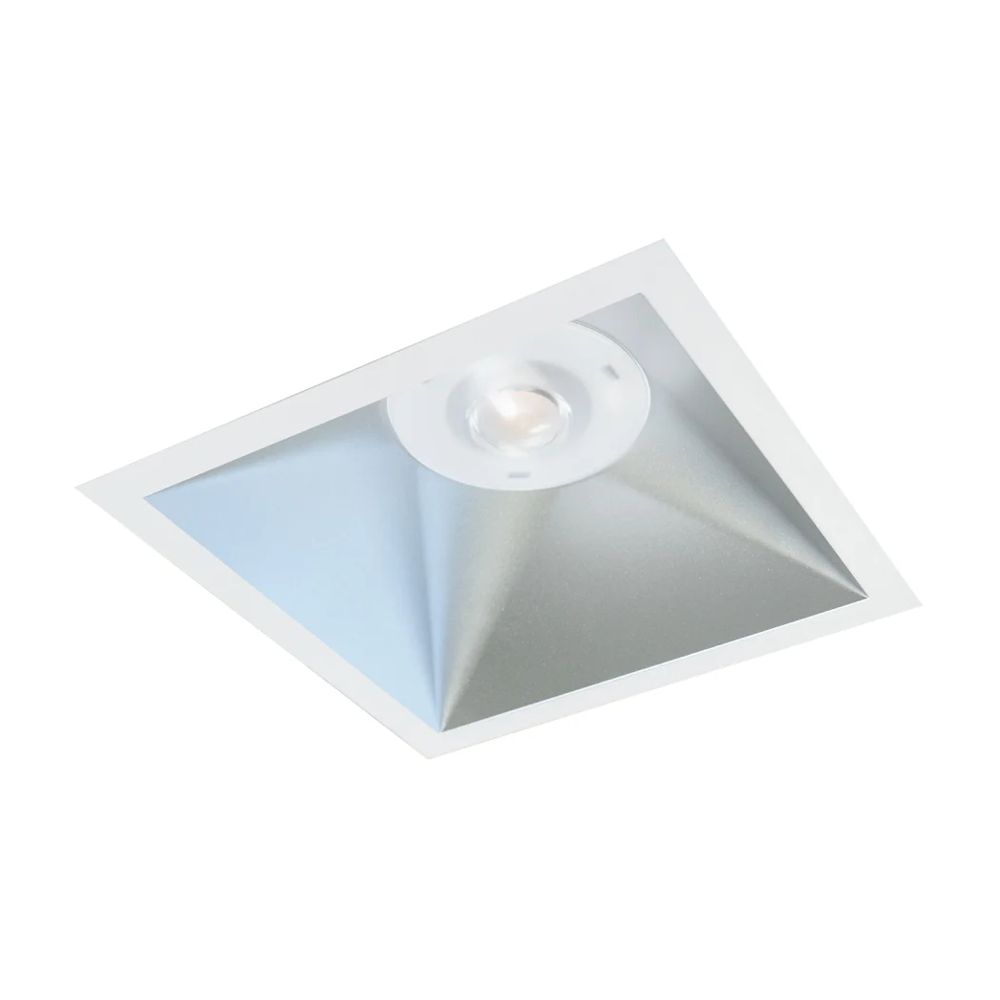

Rax Soft 200 Square 19W 220-240V 2370lm 3000K IP44 White SG Armaturen

Description

Rax Soft 200 in square version is a high-performance downlight for lighting in public buildings, offices, corridors and the like. Easy installation with screwless terminal block ready for feed-through and automatic strain relief for cable or flexible hose, alternatively with Linect quick-connect system. The springs fit ceiling tiles with a thickness of 1–50 mm. The lumen value can be set via dipswitch. Hole dimensions 200x200mm.

Technical Information

• Installation diameter: 0 mm
• Color temperature: 3000 - 3000 K
• Nominal luminous flux: 2370 lm
• Protection class (IP) front: IP44
• Reflector color: Silver
• Adapted for VDU work (EN 12464-1): No
• Connectable conductor area: 2.5 - 2.5 mm²
• Number of poles: 2
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Maintained luminous flux at average lifetime 100,000 hours (25 °C ambient): 90%
• Bluetooth controlled: No
• Failure at average lifetime 100,000 hours (25 °C ambient): 10%
• CLO: No
• No dimmer function: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): Yes
• Dimming DALI: No
• Dimming DALI-2: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phasecut-on): No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming with push button: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Dimming programmable: No
• Dimming RF: No
• Dimming sine wave (Sine Wave Reduction): No
• Dimming manufacturer-specific: No
• Dimming Zigbee: No
• Dimmable: Yes
• Distortion (THD): 0
• Distortion (THD): 0 %
• DoC (CE): Yes
• Driver: LED driver (constant current)
• Driver included: Yes
• Power factor: 100
• Energy efficiency class light source (EU 2019/2015): D
• Color of light adjustable: No
• Color fastness (McAdam ellipse): SDCM2
• Colour rendering index (CRI/Ra): 80-89
• Photobiological safety (EN 62471): RG1
• Glowing wire test (IEC 60695-2-11): None
• Installation width: 0 mm
• Installation width: 200 - 200 mm
• Installation diameter: 0 - 0 mm
• Installation height/depth: 0 mm
• Installation length: 0 mm
• Installation length: 200 - 200 mm
• Integrated emergency power supply: No
• Adjustable light distribution: No
• Adjustability: not adjustable
• Luminous flow adjustment: No
• Protection class (IP): IP44
• Protection class (IP) rear: IP20
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Casambi: No
• Compatible with Google Assistant: No
• Lamp holder/socket: None
• Suitable for built-in/recessed mounting: Yes
• Suitable for clamp mounting: No
• Suitable for low voltage systems: No
• Suitable for lamp power: 19 - 19 W
• Suitable for pillar/floor mounting: No
• Suitable for pendant suspension: No
• Suitable for track mounting: No
• Suitable for ceiling mounting: Yes
• Suitable for traverse mounting: No
• Suitable for surface mounting: No
• Suitable for wall mounting: No
• Suitable number of light sources: 1
• Conductor cross-section: 1 mm²
• Luminous flux: 2000 - 2499 lm
• Luminous flux in emergency operation: 0 lm
• Light distributor/diffuser: Reflector
• Light distribution: Symmetrical
• Light source: LED (not replaceable)
• Light distribution angle: 40-80° (wide beam)
• Luminous efficiency: 125 lm/W
• Luminous efficiency: 125 - 125 lm/W
• Light output: Direct
• Rated voltage: 220 - 240 V
• Rated current: 500 - 850 mA
• Maximum number of luminaires per circuit breaker B16: 30
• Maximum number of luminaires per circuit breaker C16: 51
• Max. system power: 19 W
• With light source: Yes
• With light sensor: No
• With presence detector: No
• With motion sensor: No
• With IFTTT support: No
• Emergency power supply system: None
• Emergency monitoring system: None
• Nominal lifetime L70/B50 at 25 °C: 0 h
• Nominal ambient temperature according to IEC 62722-2-1: 25 - 25 °C
• Nominal luminous flux (IEC 62722-2-1): 2370 - 2370 lm
• Cover with insulation: No
• Reflector: Matt
• Protection class (IEC 61140): II
• Impact resistance (IK): IK08
• Voltage type: AC
• Power consumption in emergency mode: 0 W
• Type of wiring: Termination
• Unified Glare Ratio (UGR): 17.5
• Replaceable driver: No

Specifications

• Light color: White
• Color Housing/enclosure/frame: White
• Housing/enclosure/frame material: Plastic
• Brushed surface: Yes
• Width: 216 mm
• Length: 216 mm
• Height/depth: 93 mm
