Post Arm Moss Grafit 8W 220-240V 3000K IP65 Norlys 6750GR

Description

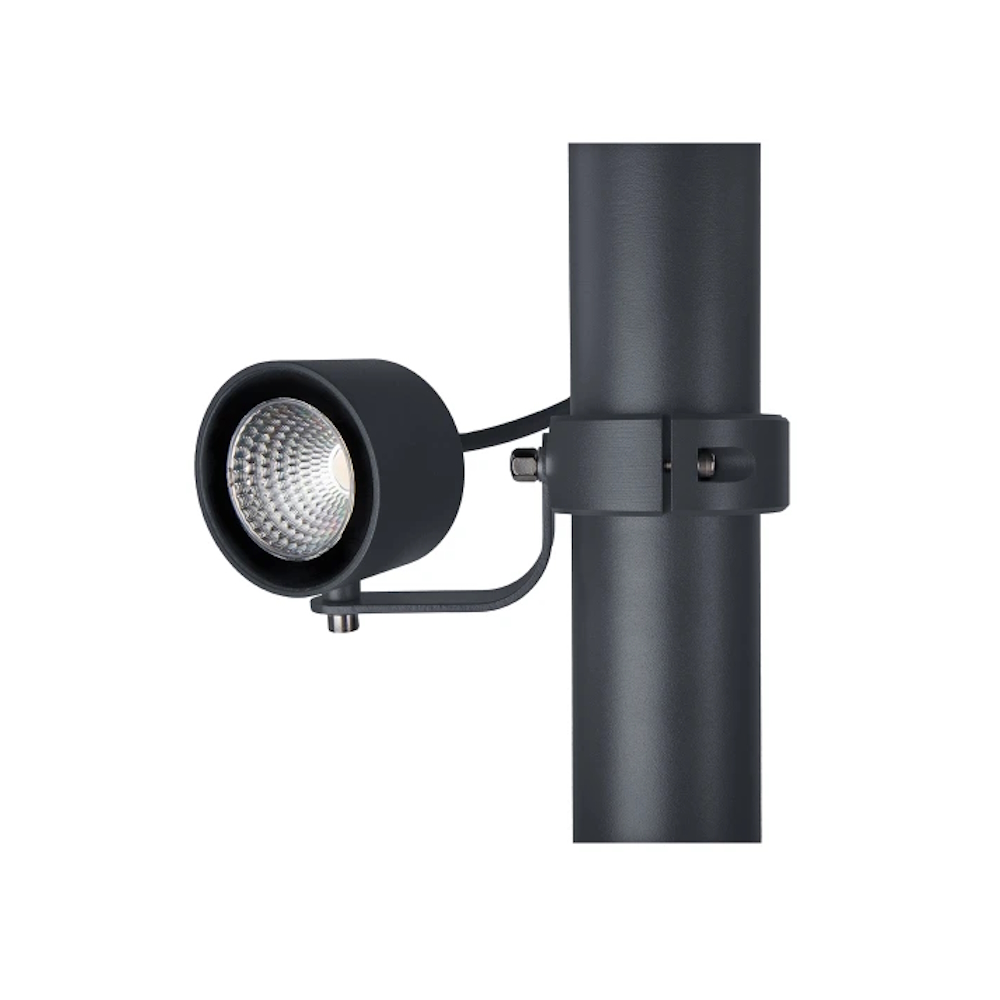

Spot luminaire in cast aluminum for landscape and facade lighting. Available for both ground, wall and pole mounting. Available with two different strengths of LED.module. Available for both 3000 and 4000Kelvin. Moss Grafit Spot for pole. 8W LED 3000K 686 Lumen out Burn time 50,000h IP65 Class 1, Dimmable. Incl bracket 50mm pole.

Technical Information

• Nominal luminous flux: 686 lm
• Protection class (IP): IP65
• Color temperature: 3000 - 3000K
• Adjustability: Rotatable/swivel
• Adapted for VDU work (EN 12464-1): No
• Number of poles: 3
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• CLO: Yes
• Dimmer with push button: No
• Dimmer function missing: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimension trailing edge (phase cut-off): Yes
• Dimming depending on driver: No
• Dimming DALI: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phase cut-on): No
• Dimming GPRS: No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Programmable dimming: No
• RF dimming: No
• Sine wave dimming (Sine Wave Reduction): No
• Manufacturer-specific dimming: No
• Zigbee dimming: No
• Driver: Not required
• Driver included: Yes
• Power factor: 0.98
• Energy efficiency class of replacement lamps supplied: A++
• Color housing/enclosure/frame: Anthracite
• Color fastness (McAdam ellipse): SDCM3
• Color rendering index (CRI/Ra): 80-89
• Glowing wire test (IEC 60695-2-11): None
• Lamp holder/socket: Other
• Suitable for built-in/recessed mounting: No
• Suitable for lamp power: 8 - 8 W
• Suitable for pendant suspension: No
• Suitable for track mounting: No
• Suitable for ceiling mounting: No
• Suitable for surface mounting: No
• Suitable for suitable number of light sources: 1
• Conductor area: 1.5 mm²
• Light color: White
• Light distributor/diffuser: None
• Light distribution: Symmetrical
• Light source: LED (not replaceable)
• Luminous efficiency: 97.3 lm/W
• Light outlet: Direct
• Rated voltage: 220-240V
• Max. system power: 8W
• With light source: Yes
• With light sensor: No
• With motion sensor: No
• Nominal lifetime L70/B50 at 25 °C: 50000 h
• Nominal ambient temperature according to IEC 62722-2-1: 25 - 25 °C
• Cover with insulation: No
• Reflector: High gloss
• Protection class (IEC 61140): I
• Protection level (NEMA): Other
• Voltage type: AC
• Connection type: Other
• Type of wiring: Termination
• Replaceable driver: No

Specification

• Measures (LxWxH): 120x30x50mm
• Material housing/enclosure/frame: Aluminum

• Material dome/cover: Glass (transparent)
• Surface treatment: Powder coated

• Food Contact Material: No

• REACH: No
