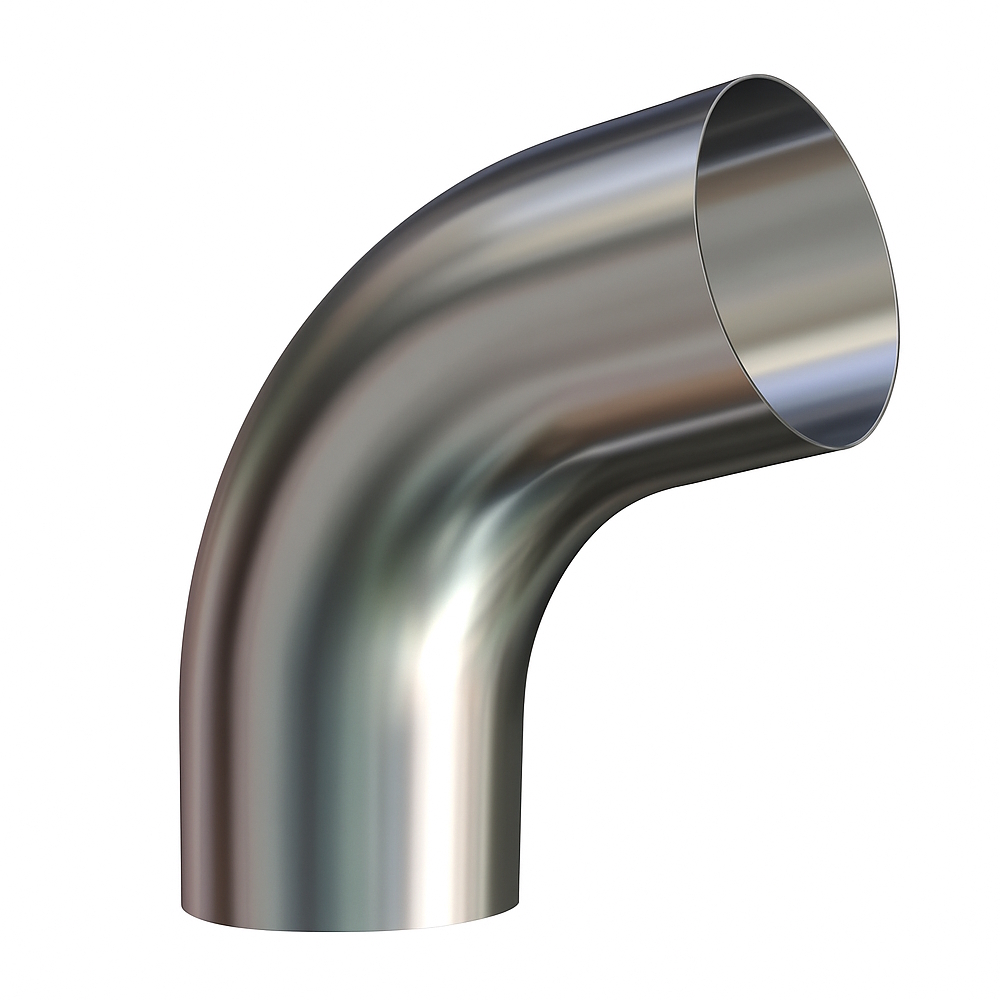

Pipe Bend Conical BK 87mmx45° Silver Metallic Lindab 97106

Description

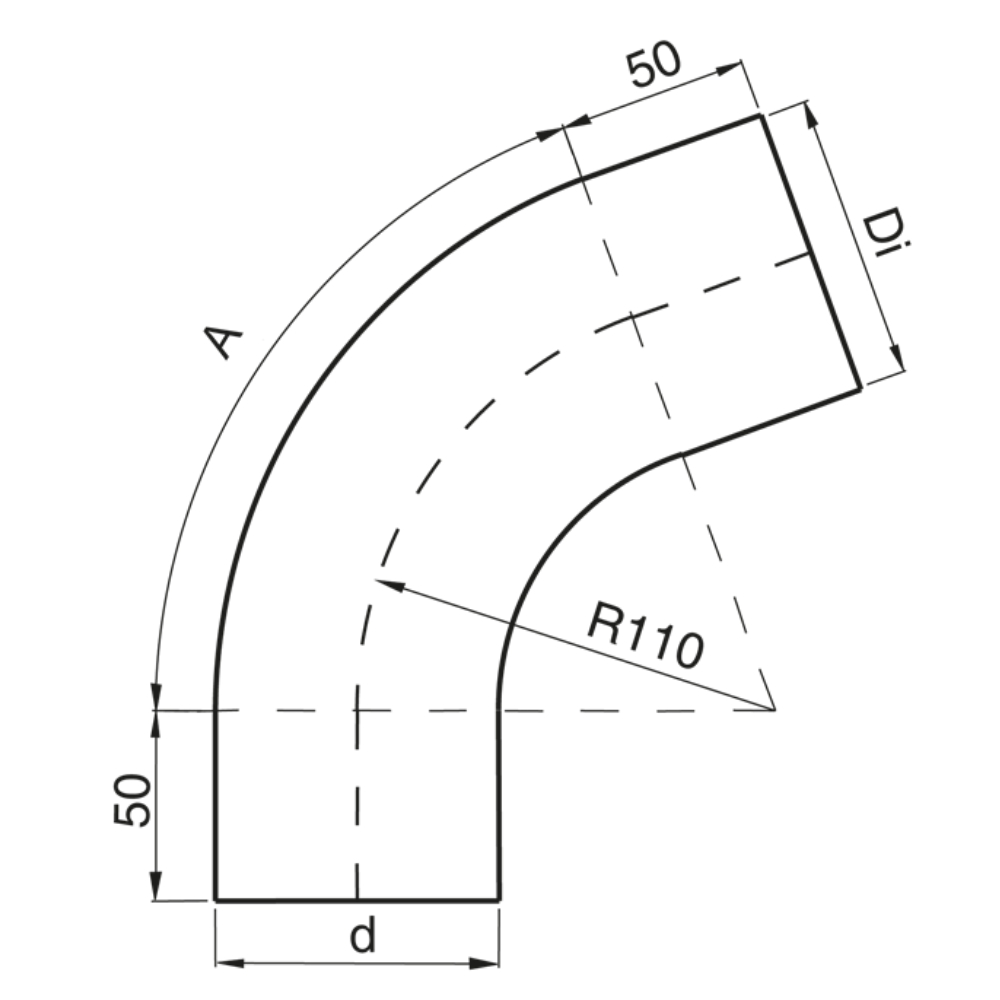

Pipe bend in 45 degrees is developed to fit perfectly to the wrap-around cup. There is no need for screws or rivets to ensure that the bend does not fall down. The bend is conical with a large and a small end, except for 50mm at each end which is straight for a perfect fit to both the cup and the downpipe.

The end with the label is always the small end that fits into the next product in the system. All products in the downpipe range have this logic that makes installation easier and faster. The label is hidden after assembly. This bend is made of powder-coated galvanized steel in 0.6mm thickness. The powder is carefully developed to fit perfectly with the color-coated material and there is no difference in design.

Specifications

• Dimensions: 87mm
• Angle: 45°
• Material/Color: Smet
