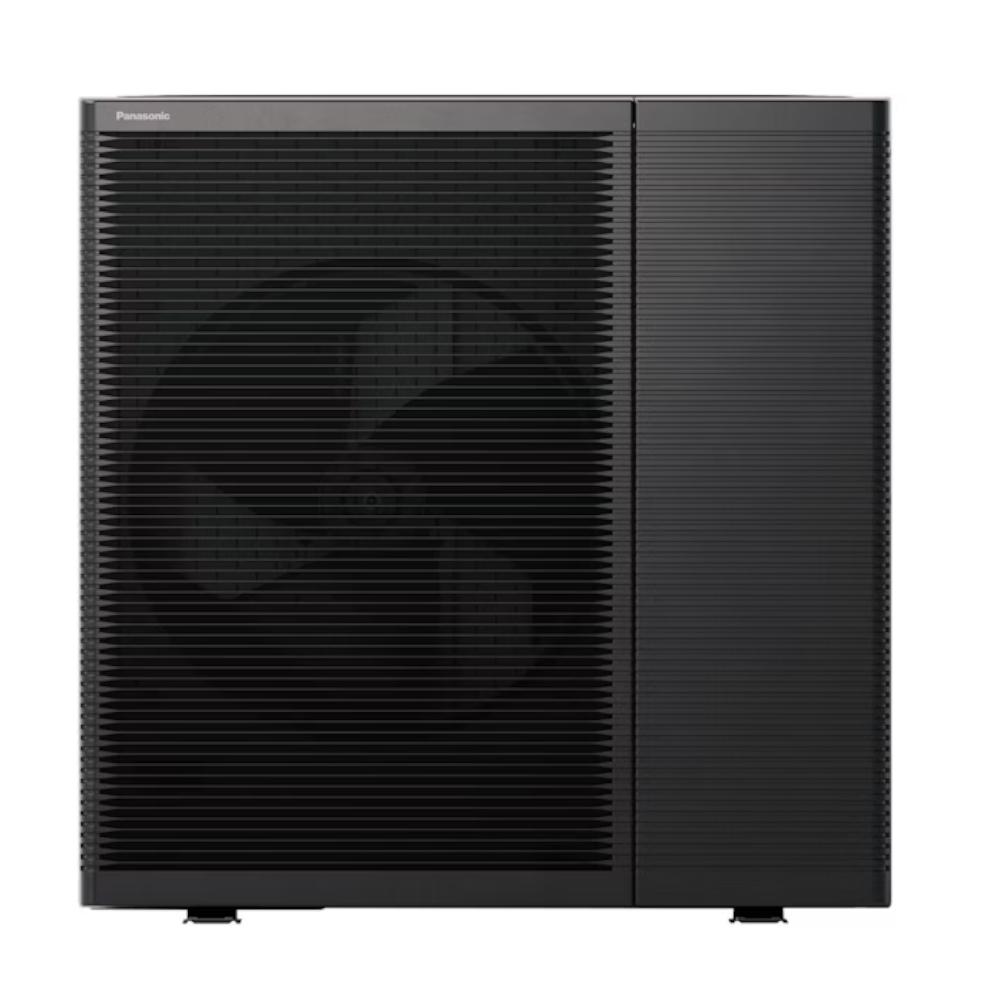

Panasonic Outdoor Unit Hydraulic Split L-Generation Air/Water R290 9kW 230V

Description

Panasonic 9kW A++, air/water hydrosplit outdoor unit for L-gen. Heat pump. Comes in a new design, as well as a new design, and the green refrigerant R290. Has low noise level and high performance even at low outdoor temperatures. Can perform up to 75°c. down -10°c.

Technical Information

• Heating capacity at 7/35°C (EN 14511): 9 kW
• Suitable for central heating: Yes
• Refrigerant type: R290
• Suitable for domestic hot water: Yes
• Suitable for pool heating: No
• Multiple system connection and control possible: Yes
• Connection voltage: 230 V
• Number of phases: 1
• COP at 7/35°C (EN 14511): 4.55
• COPd at Tj=+7°C: 4.84
• Data transfer via Bus: Yes
• Data transfer via Internet: Yes
• Data transfer via USB: No
• Energy efficiency class space heating (811/2013/EU): A++
• Energy efficiency class water heating (811/2013/EU): A+
• Energy efficiency water heating (Nwh): 3.6 %
• Unit fuse size: 16 A
• External control required: No
• Remote controlled: Yes
• Pre-charged refrigerant: 1 kg
• Frequency: 50 Hz
• Global warming potential (GWP): 3
• Indoor/Outdoor: Outdoor location
• Integrated control for domestic hot water: Yes
• Capacity profile: L
• Cooling capacity at 35/18°C (EN 14511): 9 - 9 kW
• Cooling capacity at 35/7°C (EN 14511): 8.2 - 8.2 kW
• Suitable for active cooling: Yes
• Sound level (operation) on/off: 54 - 54 dB(A)
• Sound level at 0/35 °C at 1 m distance (EN 12102): 54 dB
• Max. hot water temperature: 75 °C
• With pool control: No
• Nominal flow rate heating medium circuit: 25.8 l/s
• Refrigerant charge volume: 1 kg
• Pump type (system pump): Energy-saving
• Control for control of accumulator tank: Yes
• Control for control of central heating boiler: Yes
• Room temperature control: Yes
• SEER low temperature application (35°C) at colder conditions: 4.19 %
• SEER low temperature application (35°C) at normal conditions: 4.19 %
• SEER low temperature application (35°C) at warmer conditions: 4.19 %
• Control method/Processing method: OpenTherm
• Type of speed control (system pump): Automatically controlled on dT
• Type of control: On/Off
• Type of voltage pump (system pump): AC
• Heating capacity at -7/35°C (EN 14511): 7 kW
• Speed-controlled pump (system pump): Built-in (integrated)
• Vessel/tank volume: 0 L

Specifications

• Width: 980 mm
• Depth: 430 mm
• Height: 996 mm
• Food Contact Material: No
• REACH: No
